Pinout Values and Diagnostic Parameters

TCM Inputs and Outputs

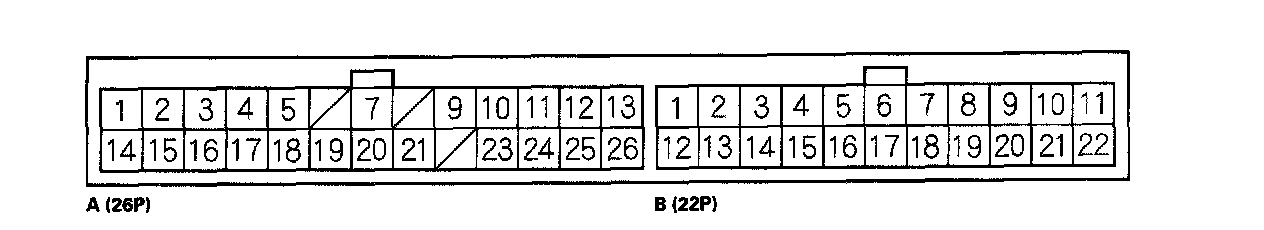

TCM Connector Terminal Locations

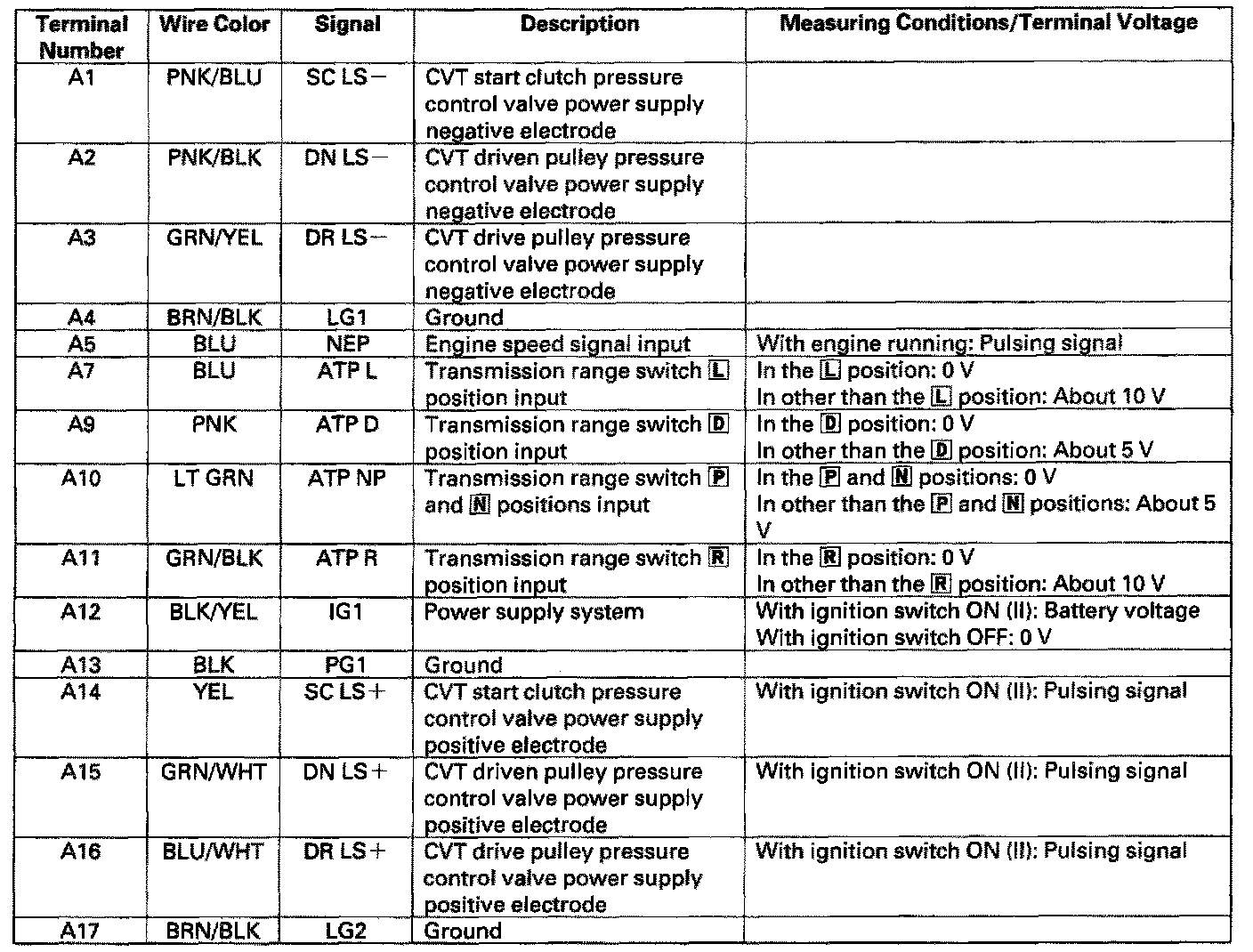

TCM CONNECTOR A (26P)

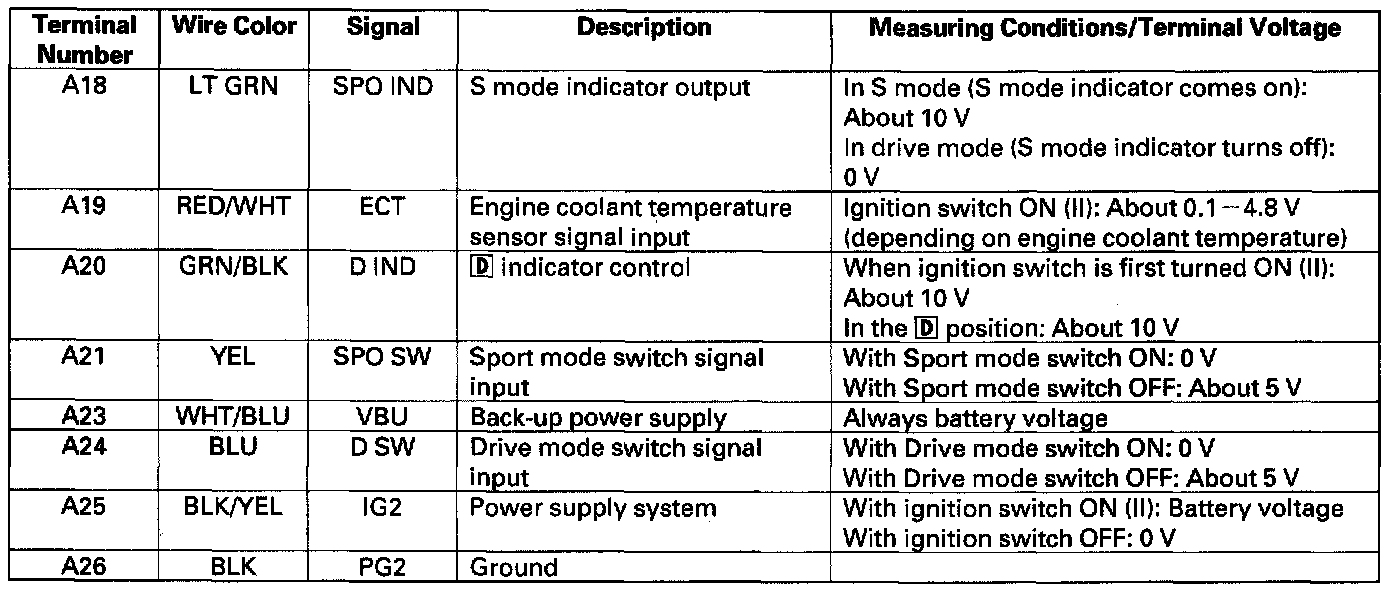

TCM CONNECTOR A (26P)

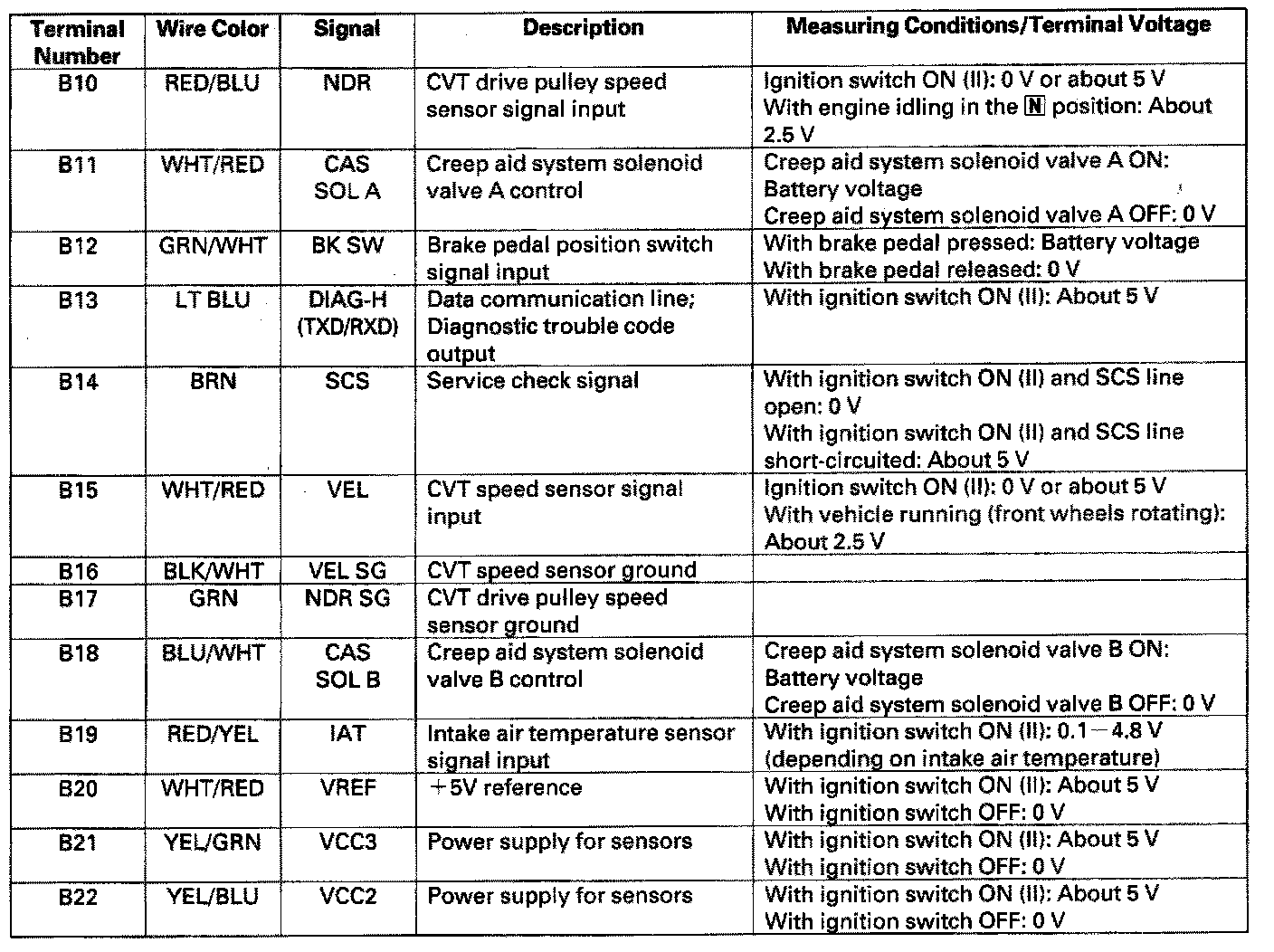

TCM CONNECTOR B (22P)

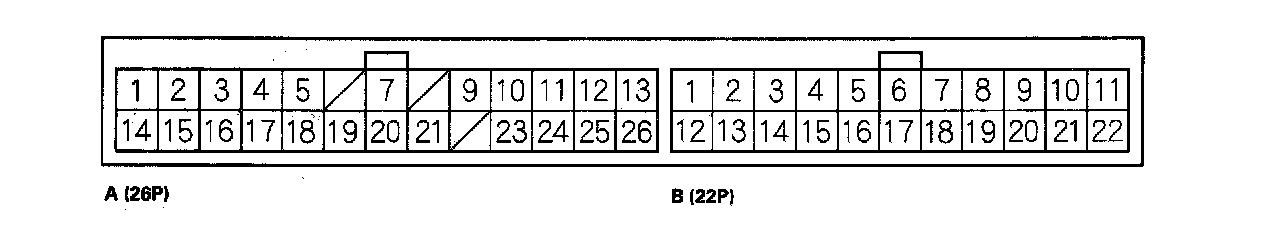

TCM Connector Terminal Locations

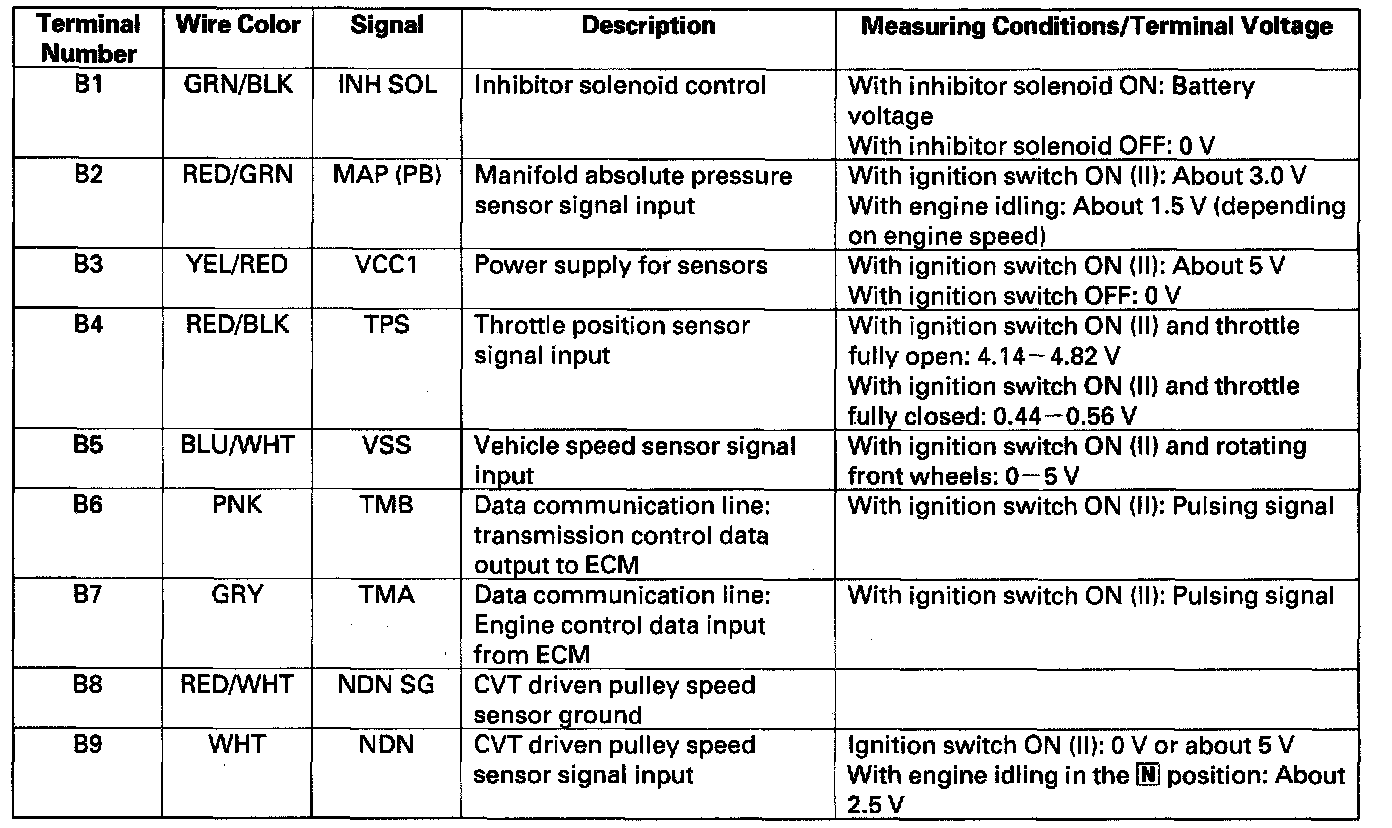

TCM CONNECTOR B (22P)
