Home >> Honda >> 2003 >> Insight L3-1.0L Hybrid >> Repair and Diagnosis >> Locations >> Splice Locations >> Circuit 17

Circuit 17

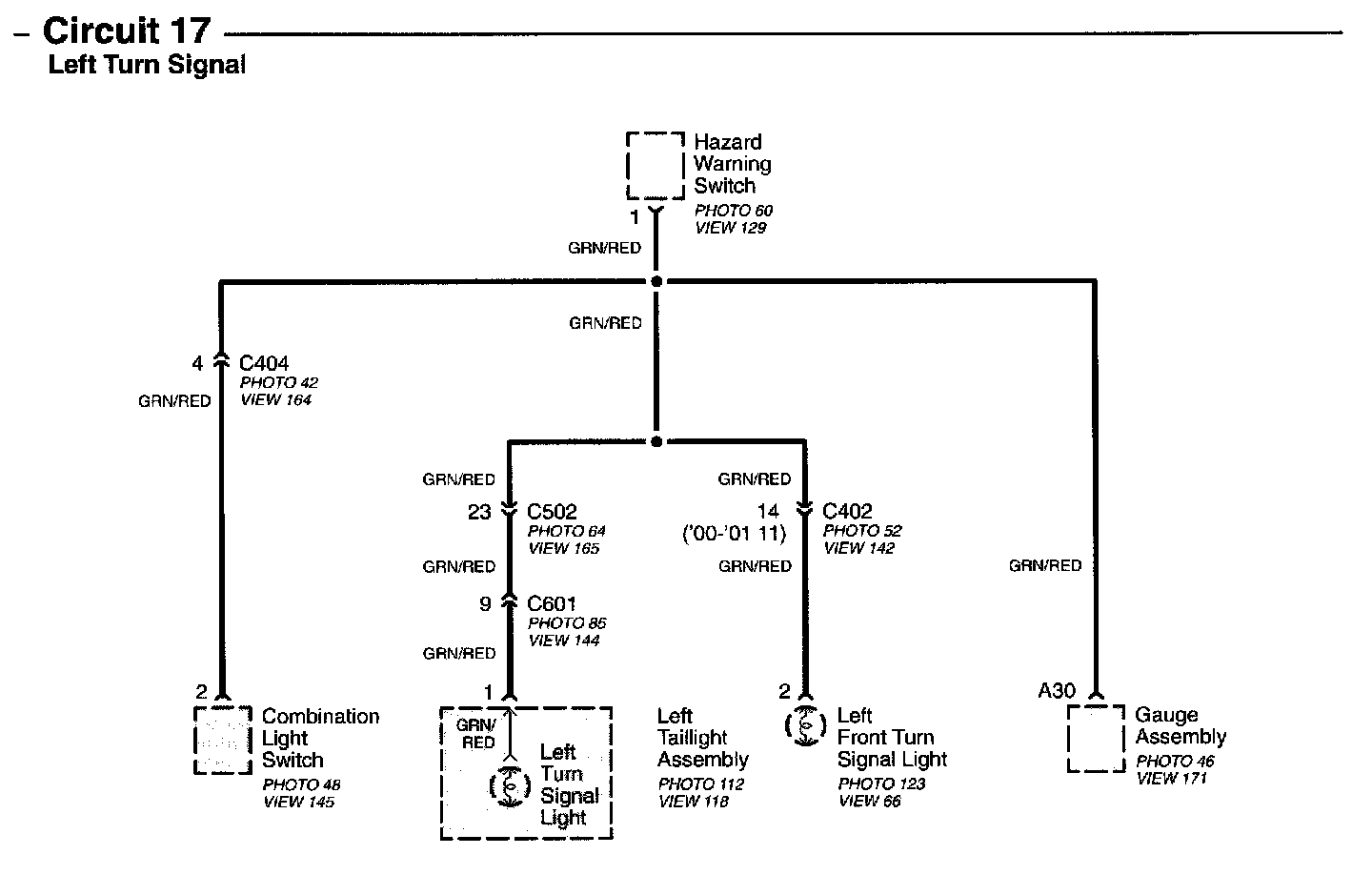

Circuit 17 - Left Turn Signal Image 15-1a:
