N Position

Engine power transmitted from the flywheel drives the input shaft, but the hydraulic pressure is not applied to the forward clutch and reverse brake. Power is not transmitted to the drive pulley shaft. Also hydraulic pressure is not applied to the start clutch.

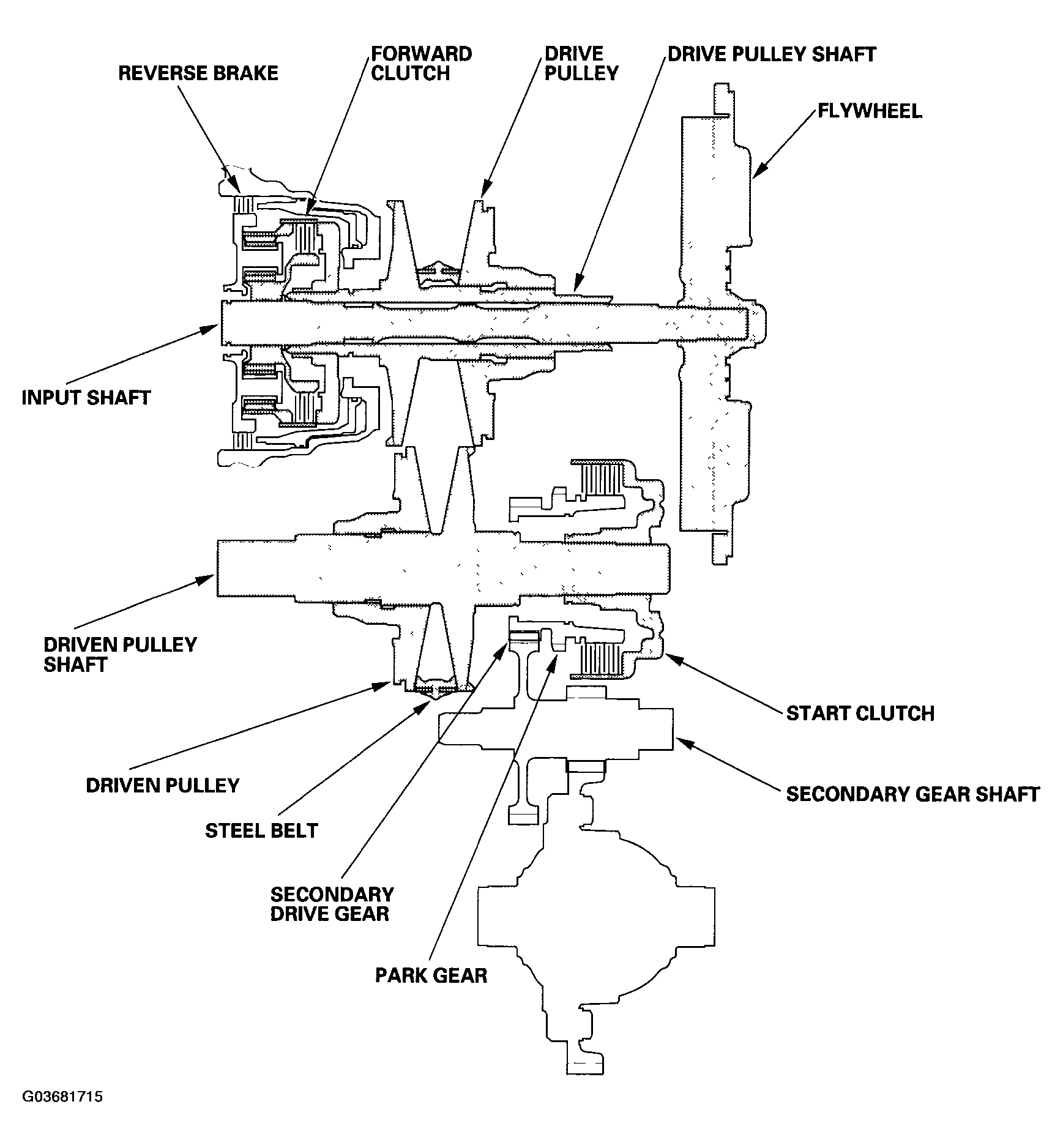

Fig 1: Identifying Transmission Power Flow - P And N Positions
G03681715Courtesy of AMERICAN HONDA MOTOR CO., INC.
