Transfer Assembly Installation

Transfer Assembly Installation
1. Raise the front of the vehicle, and support it with safety stands.
2. Set the parking brake, and block both rear wheels securely.
3. Drain the manual transmission fluid. Reinstall the drain plug with a new sealing washer.

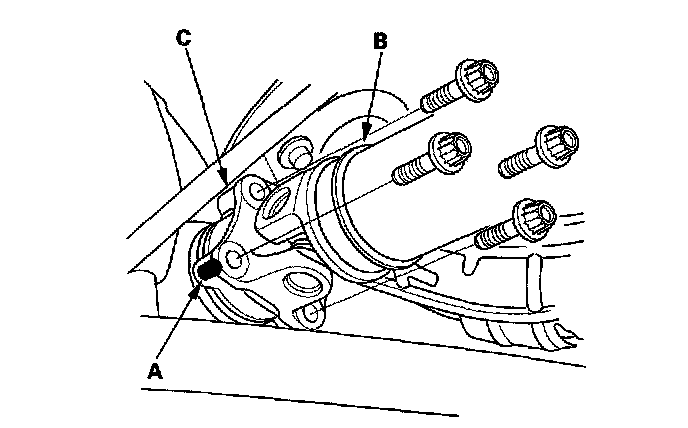

4. Make reference marks (A) across the propeller shaft (B) and the companion flanges (C).
5. Separate the propeller shaft from the transfer assembly.

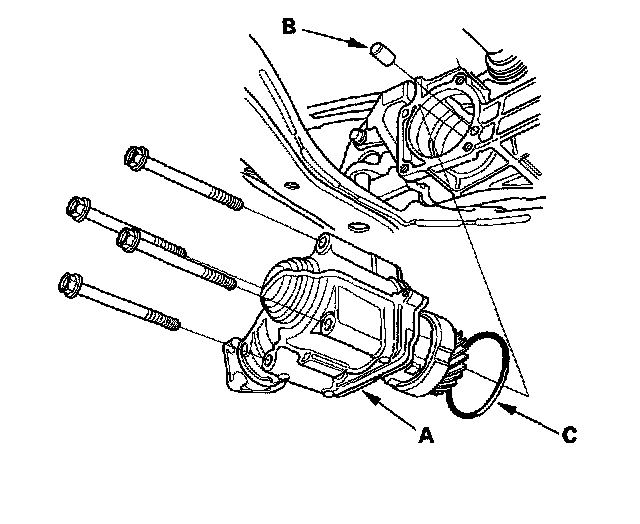

6. Remove the transfer assembly (A), dowel pin (B), and O-ring (C).
