Home >> Honda >> 2003 >> Element 4WD L4-2.4L >> Repair and Diagnosis >> Power and Ground Distribution >> Auxiliary Power Outlet >> Locations

Auxiliary Power Outlet: Locations

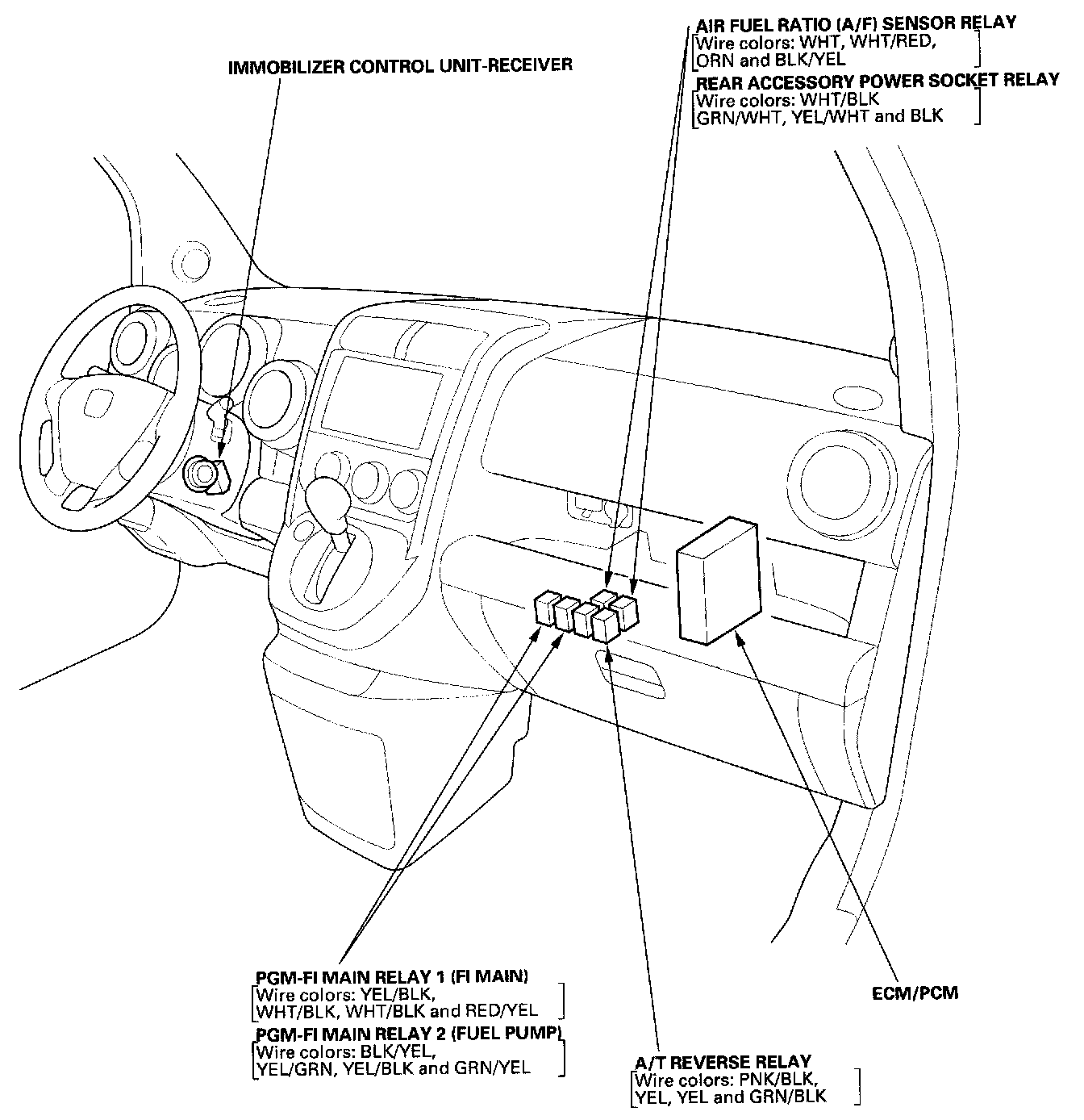

Relay And Control Unit Locations - Dashboard:

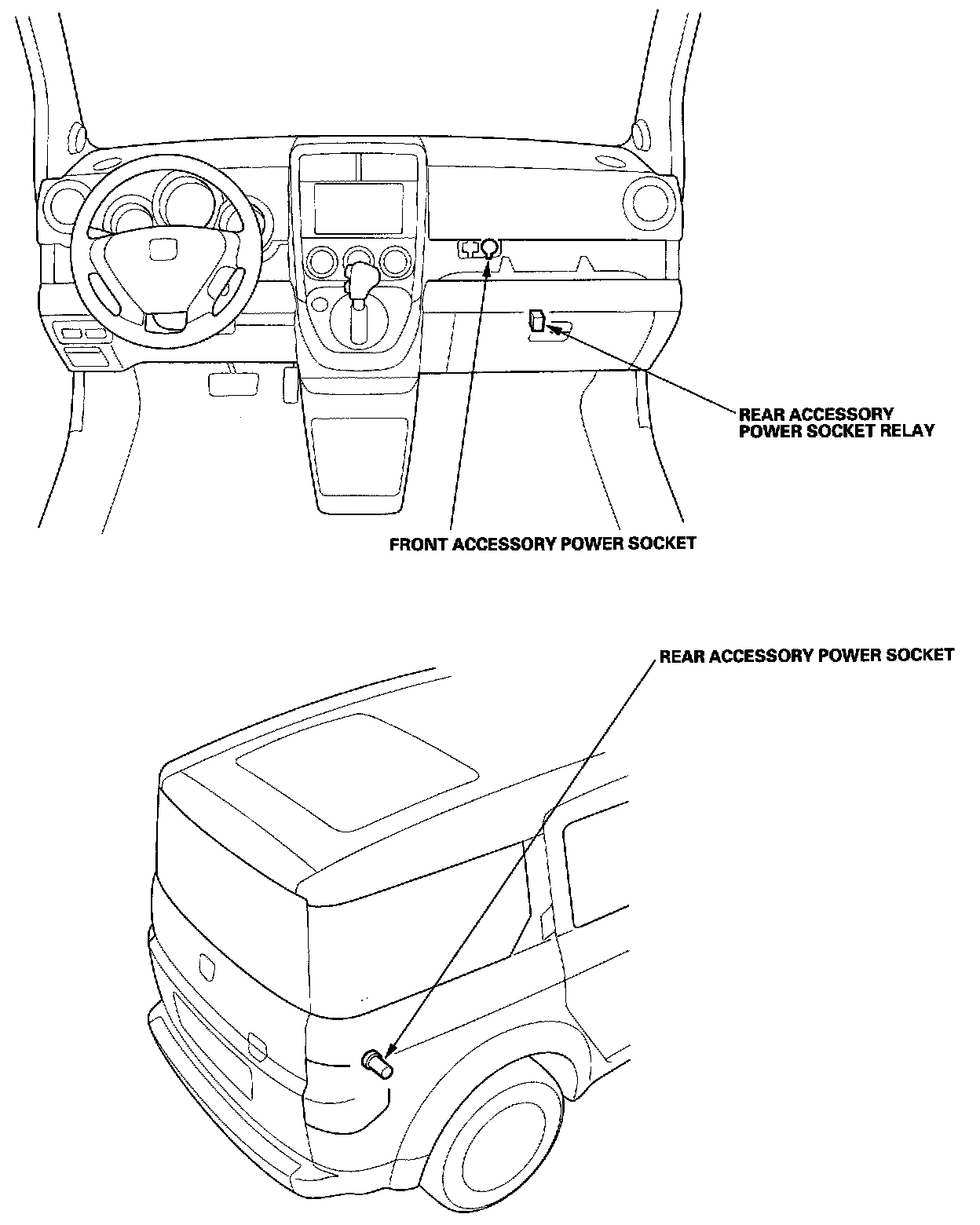

Accessory Power Sockets Component Location Index:



67. Behind Glove Box:
