Home >> Honda >> 2003 >> Element 4WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Side Air Bag

Side Air Bag

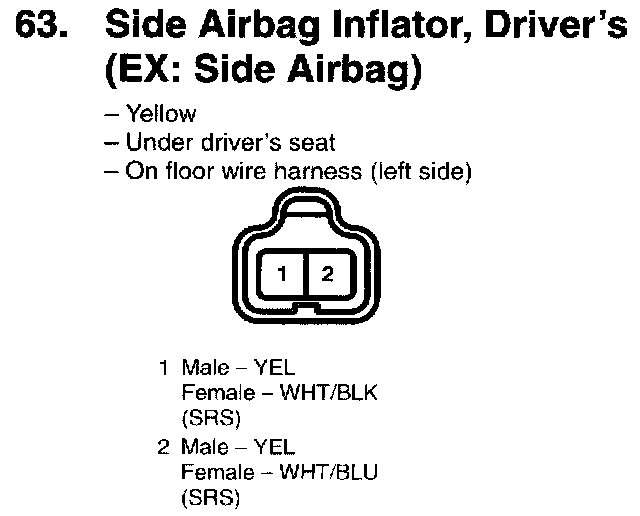

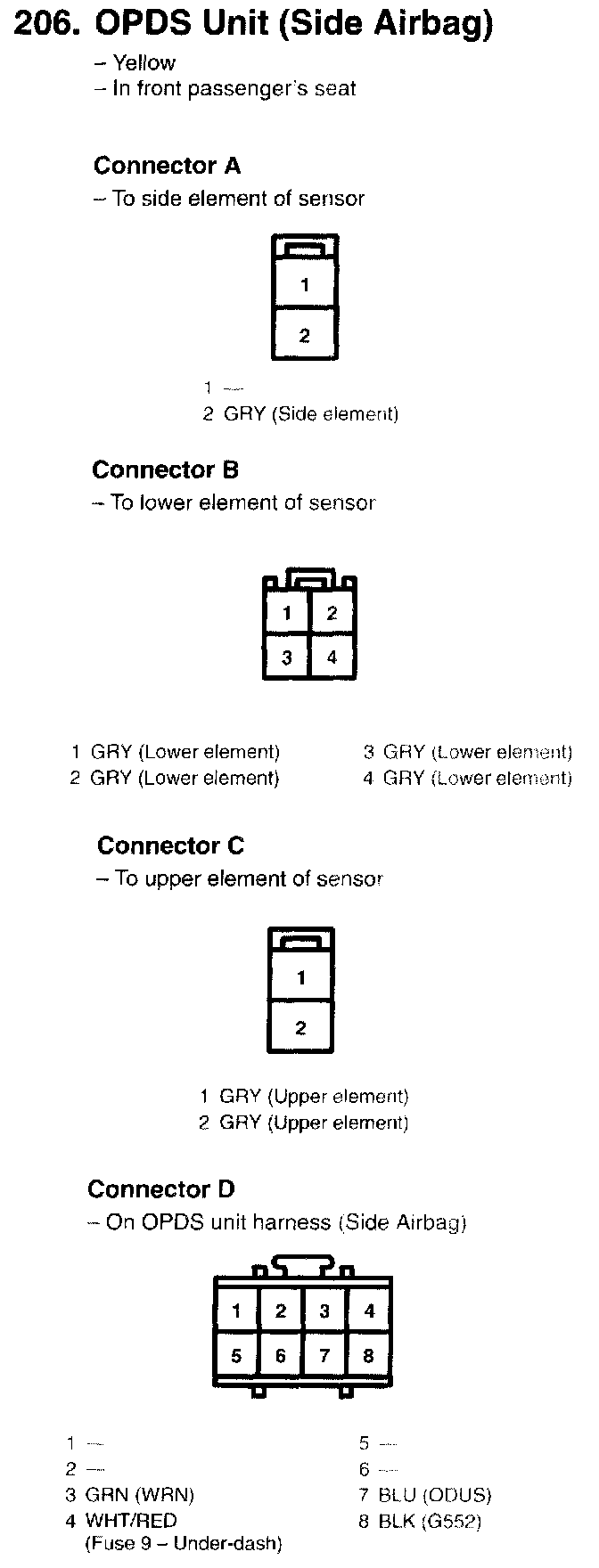

(EX: Side Airbag):

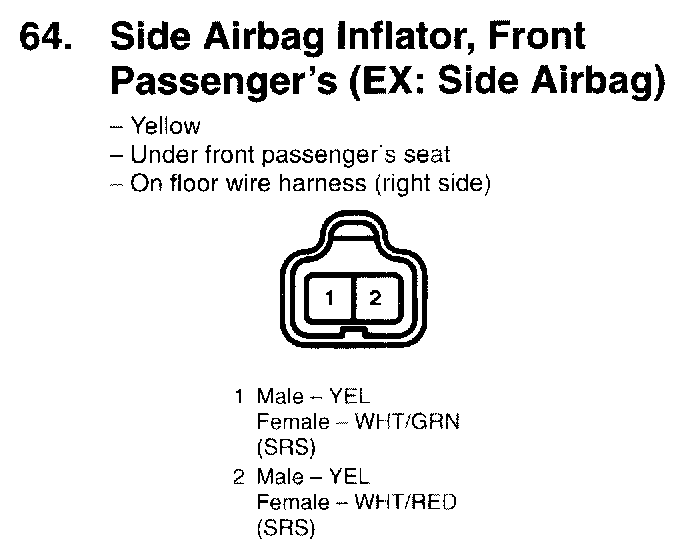

(EX: Side Airbag):
