Home >> Honda >> 2003 >> Element 4WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> Views 201-225 >> 218

Views 201-225: 218

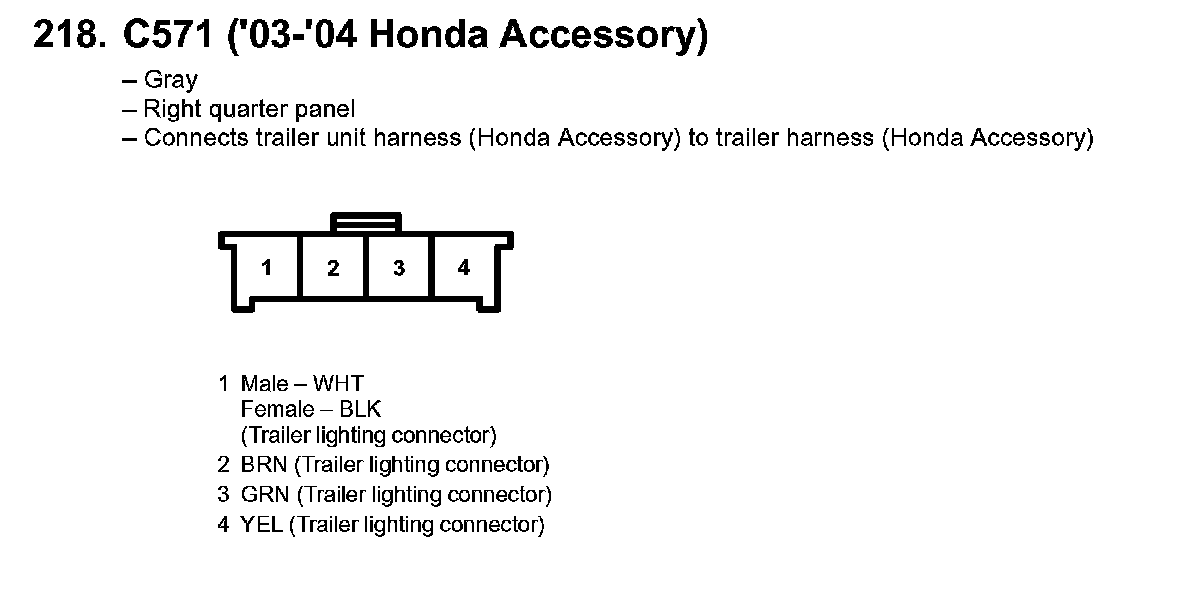

218. C571 ('03-'04 Honda Accessory):
