Air Bag Control Module: Locations

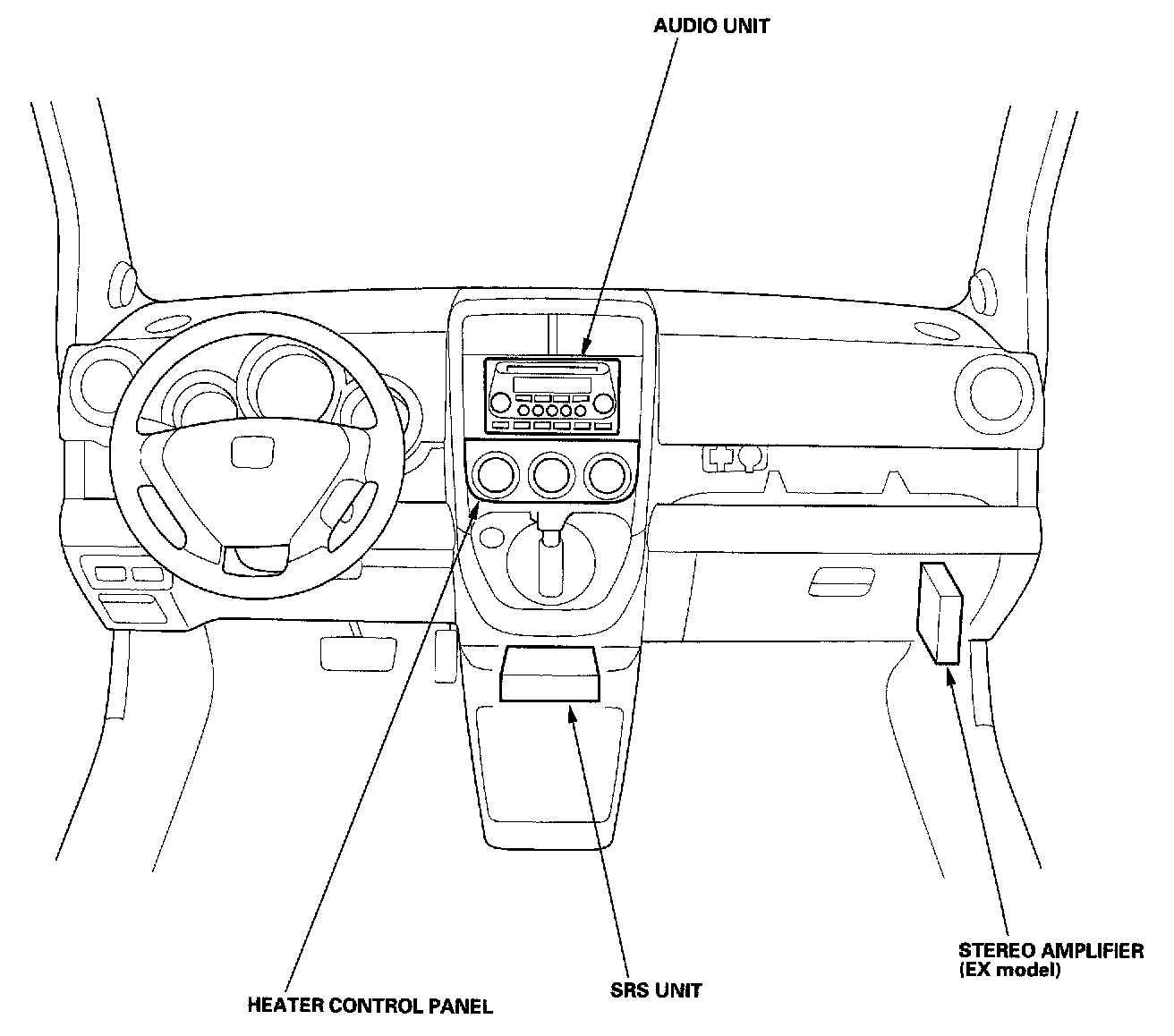

Relay And Control Unit Locations - Dashboard:



Relay And Control Unit Locations - Door, Roof And Seat:

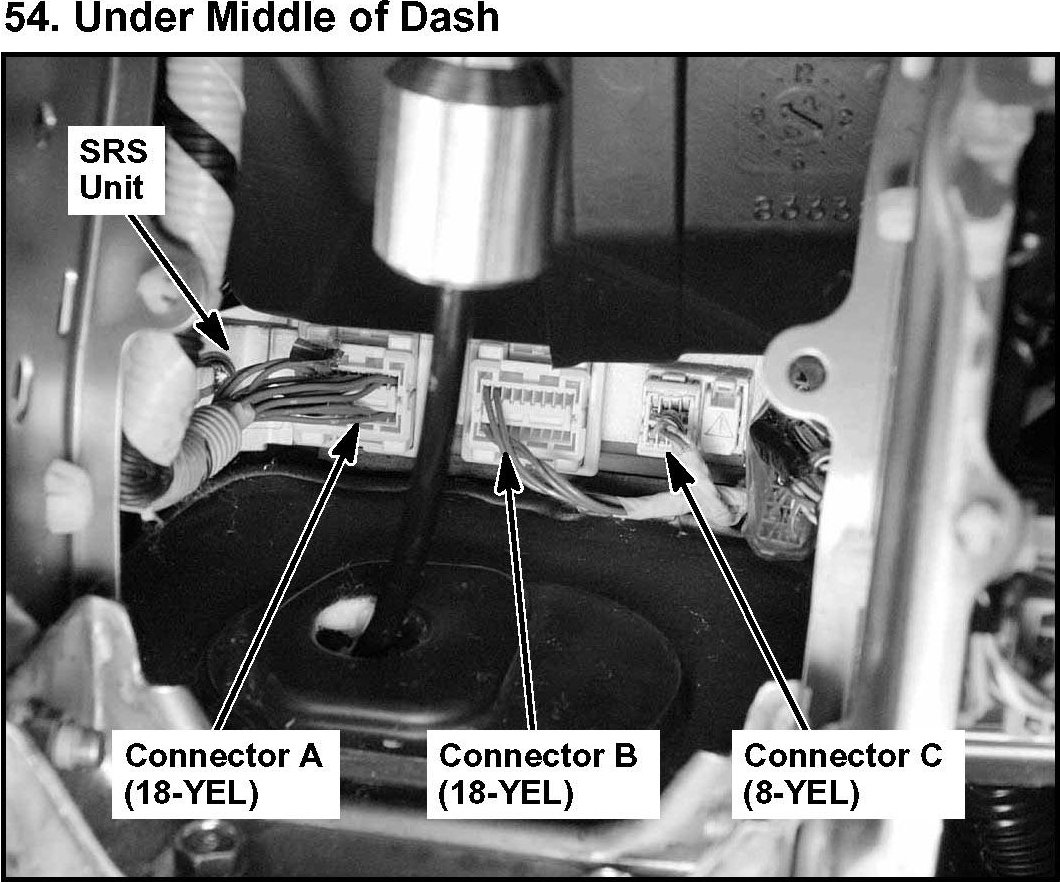

54. Under Middle Of Dash:

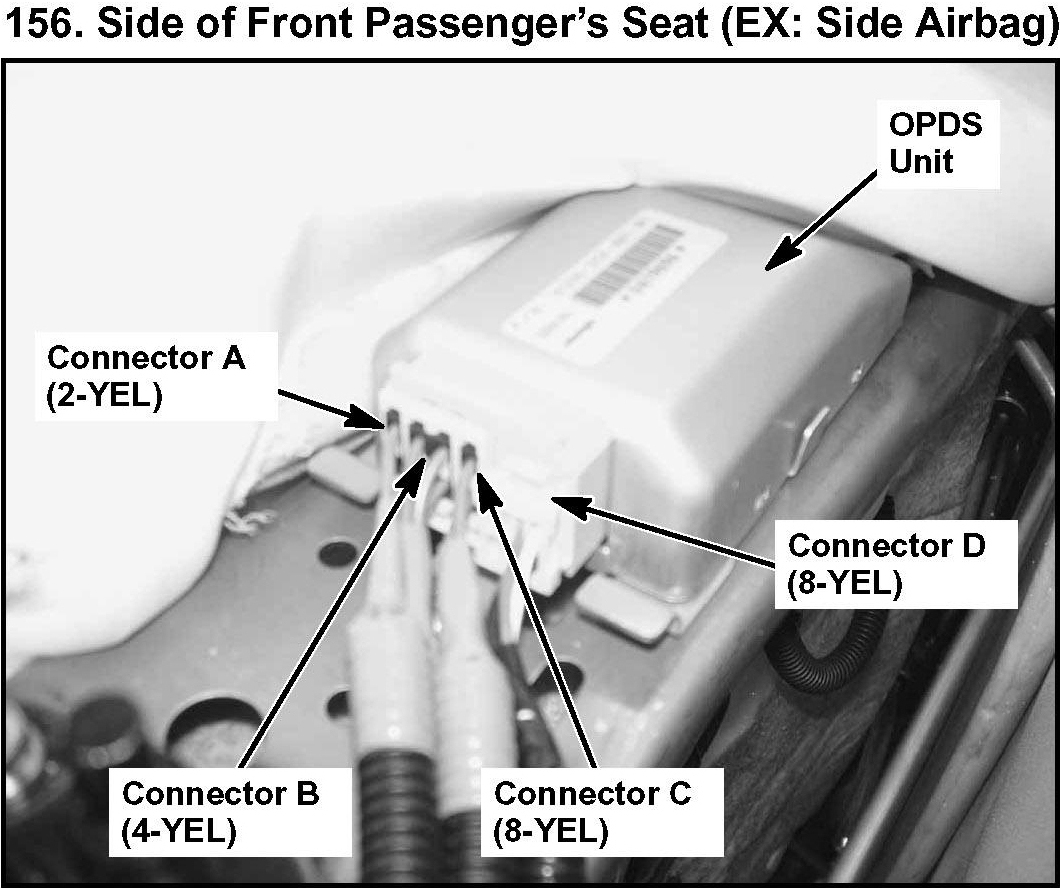

156. Side Of Front Passenger's Seat (EX: Side Airbag):
