PCM A/T Control System
PCM A/T Control System

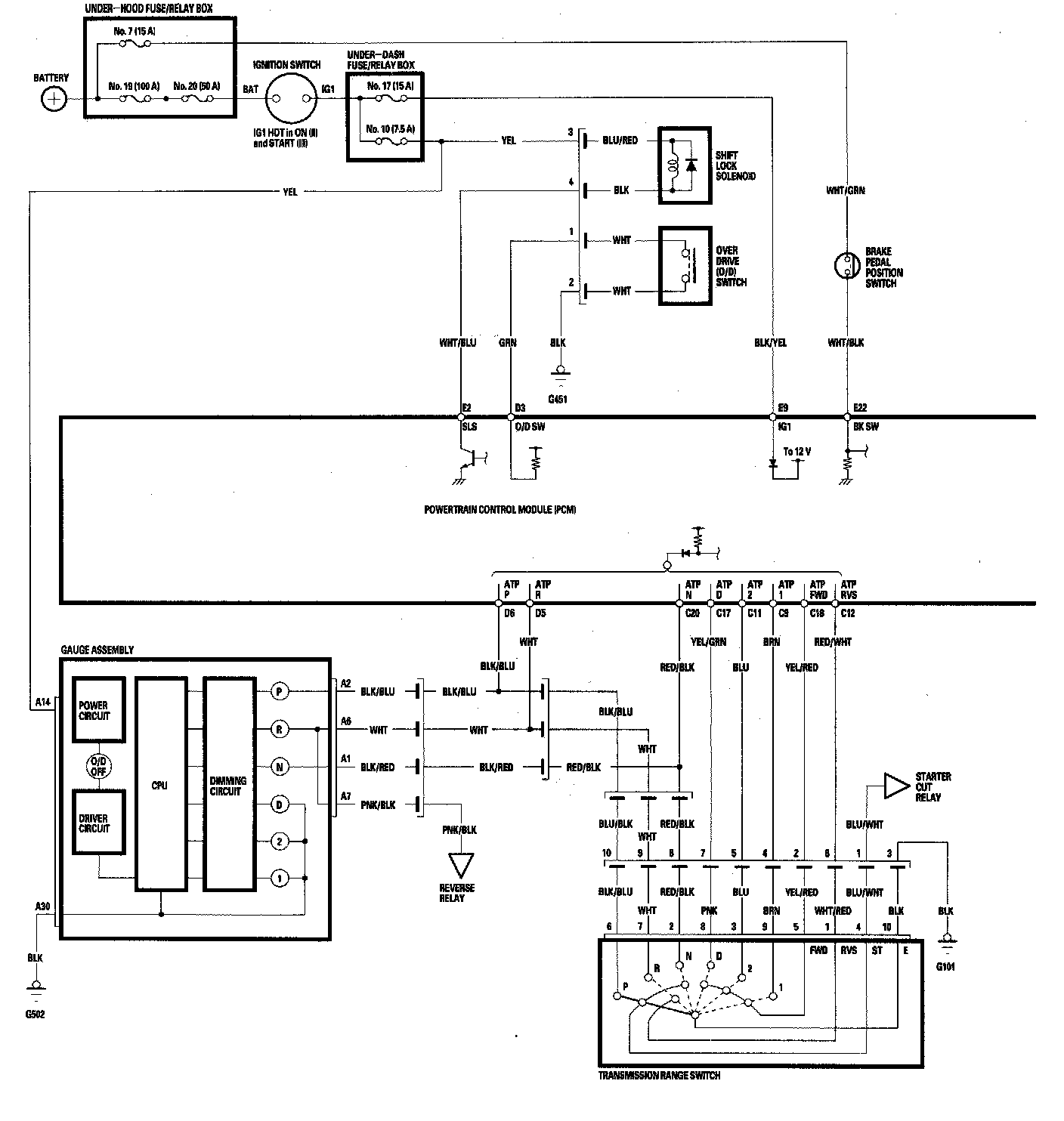

Circuit Diagram - PCM A/T Control System - Part 1:

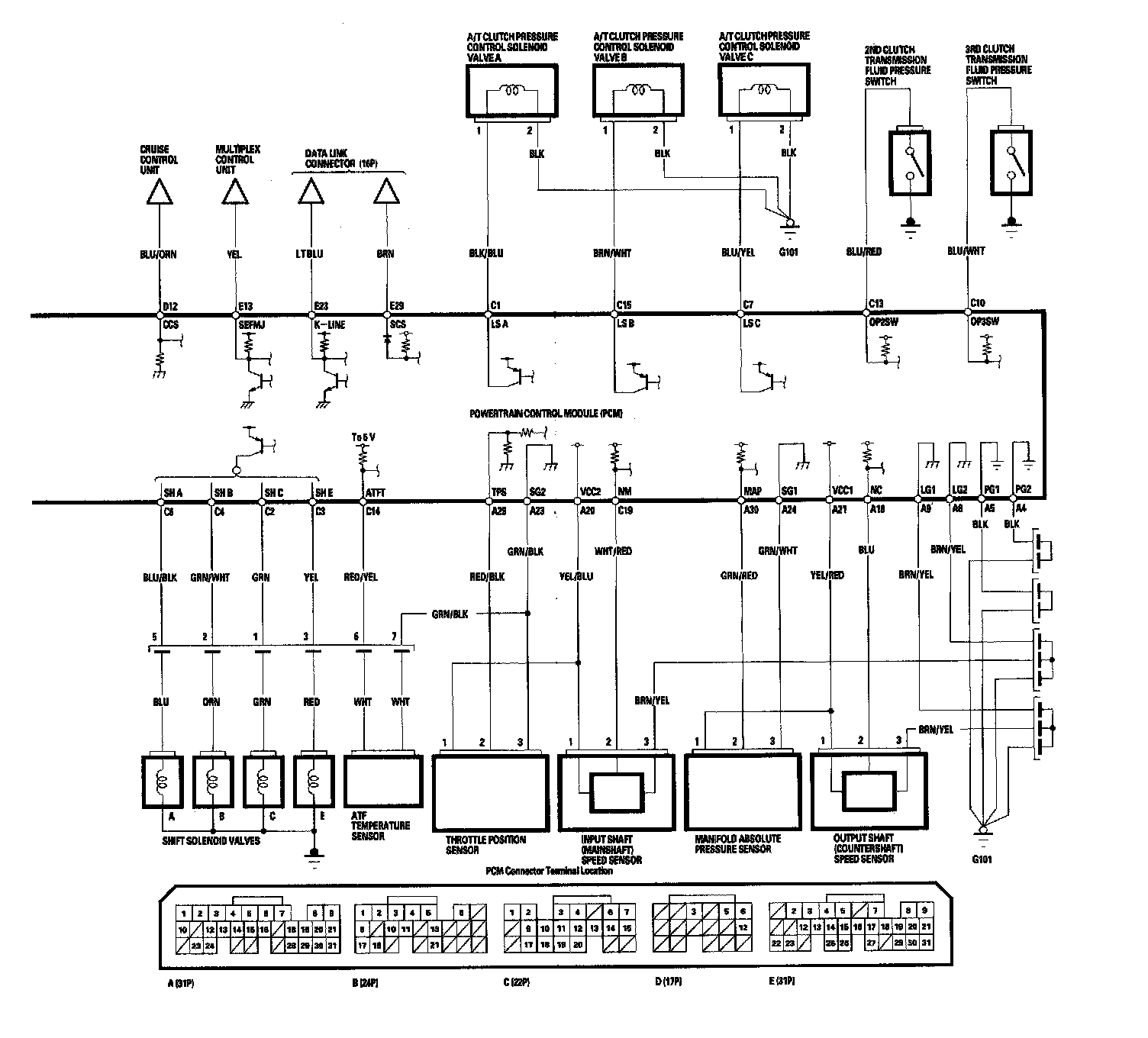

Circuit Diagram - PCM A/T Control System - Part 2:
