Home >> Honda >> 2003 >> Element 2WD L4-2.4L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Connector Locations >> Under-Dash Fuse/Relay Box

Under-Dash Fuse/Relay Box

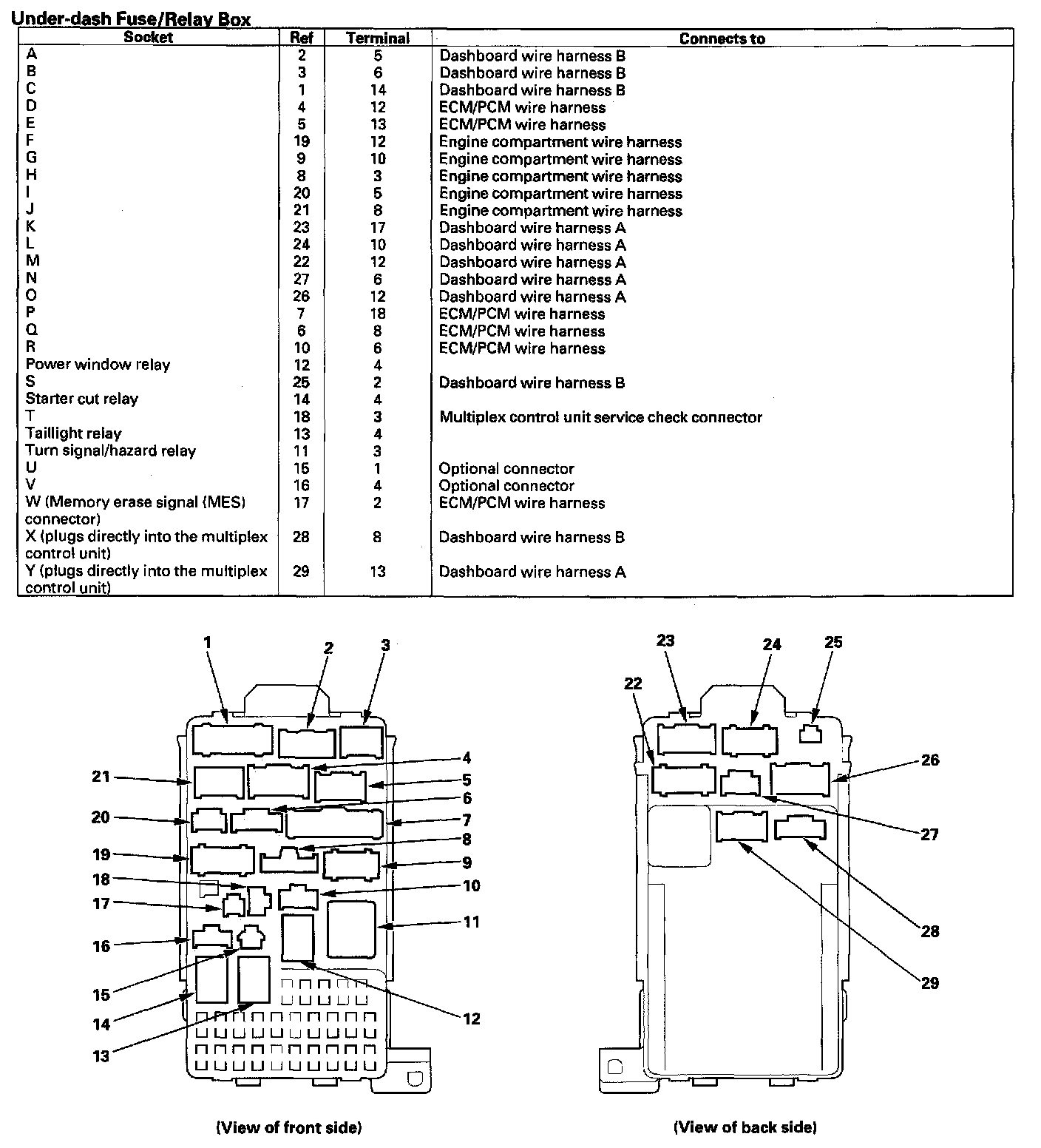

Under-Dash Fuse/Relay Box:



134. Under Left Side Of Dash (Honda Accessory):

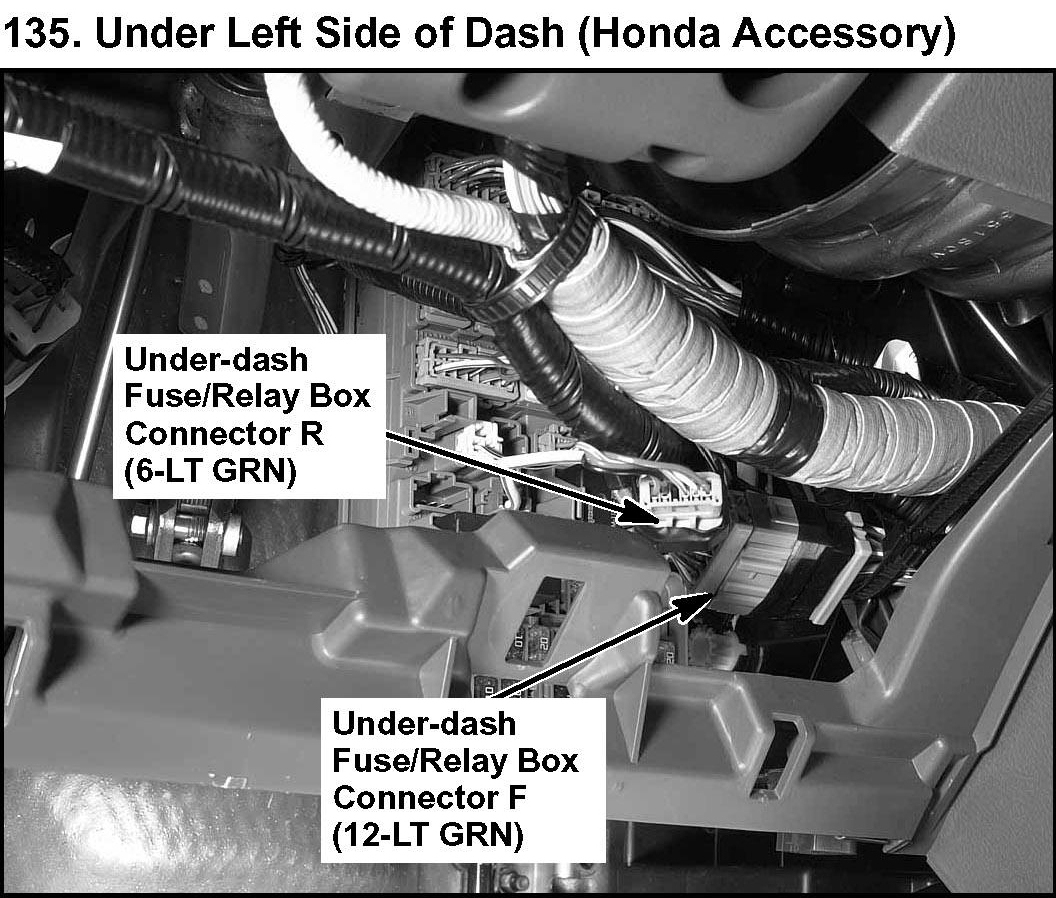

135. Under Left Side Of Dash (Honda Accessory):
