Crankshaft Position Sensor: Service and Repair

CKP Sensor Replacement

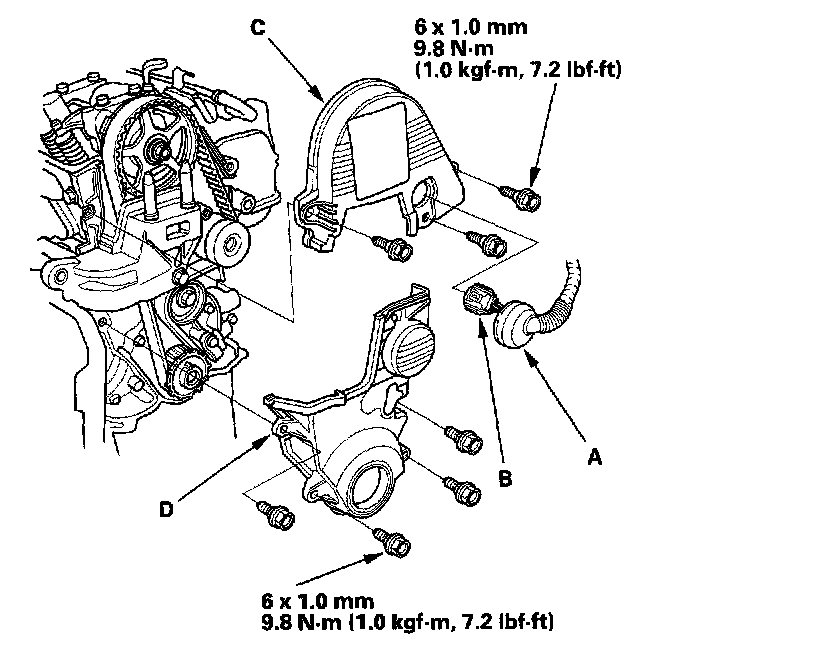

1. Remove the grommet (A) from the upper cover, and disconnect the camshaft position (CMP) (top dead center (TDC)) sensor connector (B).
2. Remove the upper cover (C) and lower cover (D).





3. Disconnect the crankshaft position (CKP) sensor connector, then remove the CKP sensor from the oil pump.
4. Install the CKP sensor in reverse order of removal.
