Control Assembly: Locations

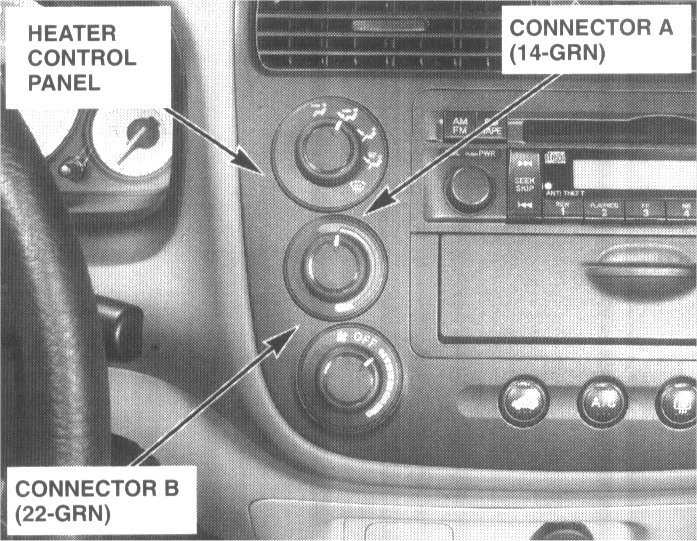

74. Behind Heater Control Unit-Panel:

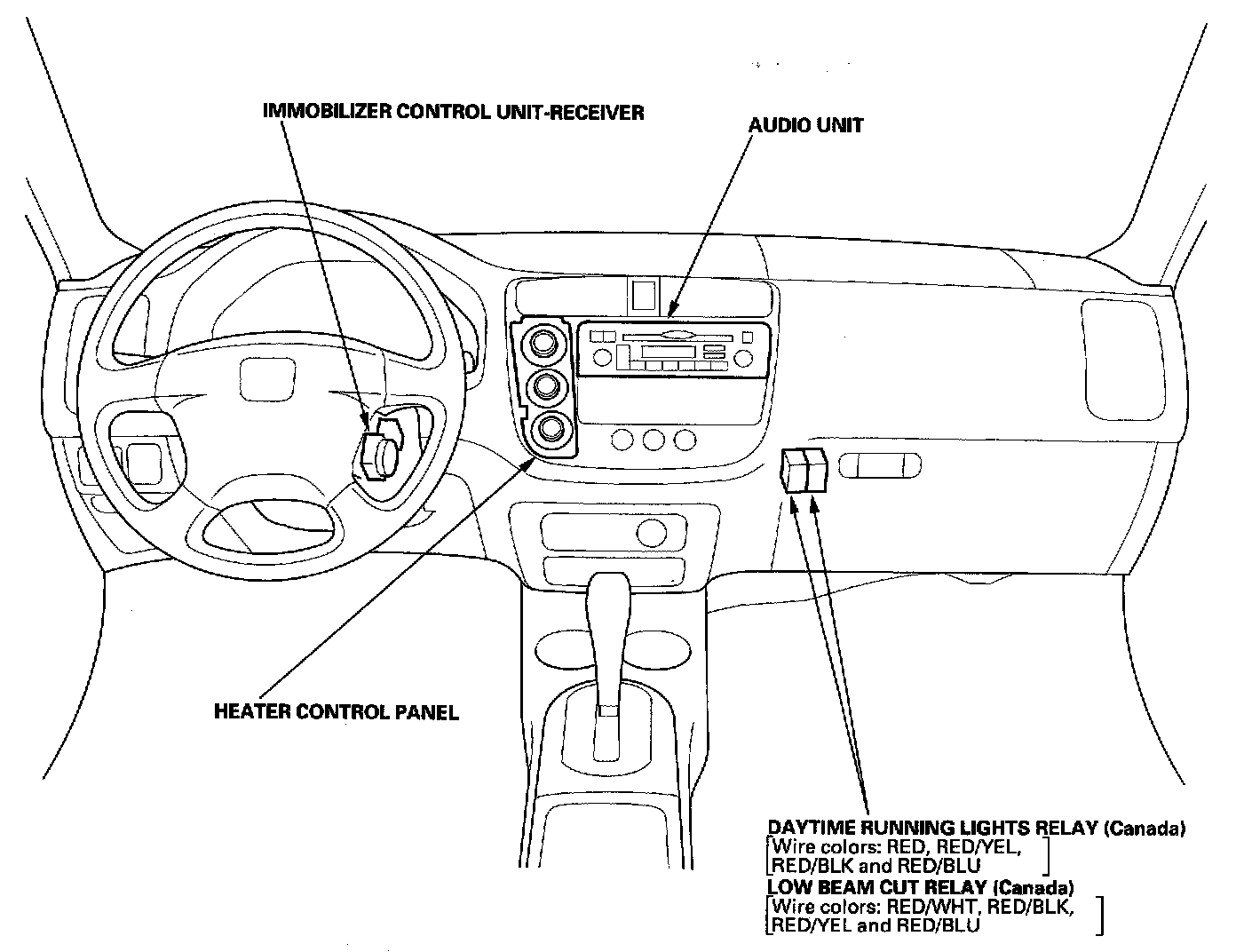

Relay And Control Unit Locations - Dashboard:
