Home >> Honda >> 2003 >> Civic L4-1.7L CNG >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine Lubrication >> System Diagram

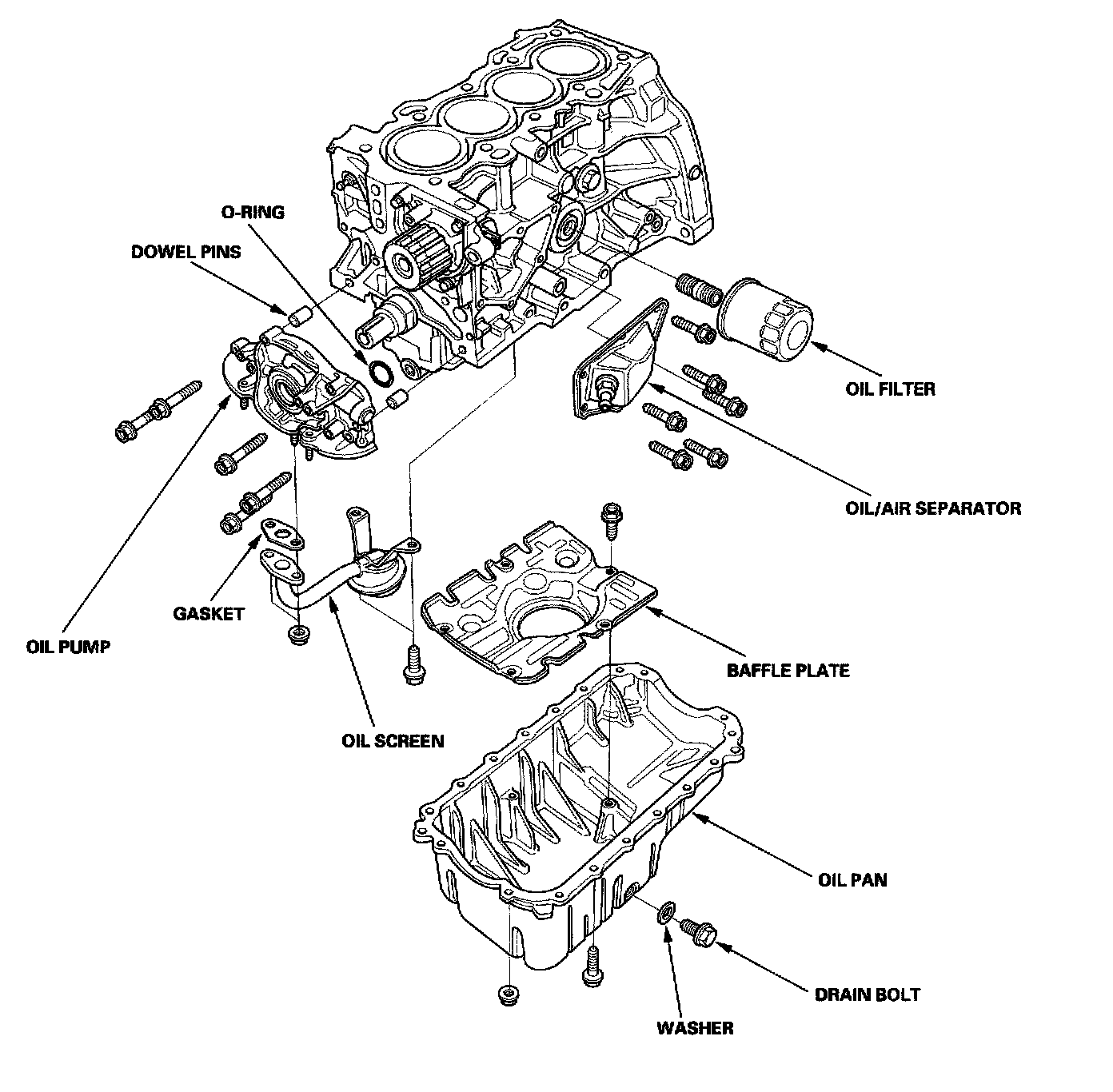

System Diagram
