Home >> Honda >> 2003 >> Civic L4-1.7L CNG >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Continuously Variable Transmission/Transaxle, CVT >> End Cover/Intermediate Housing

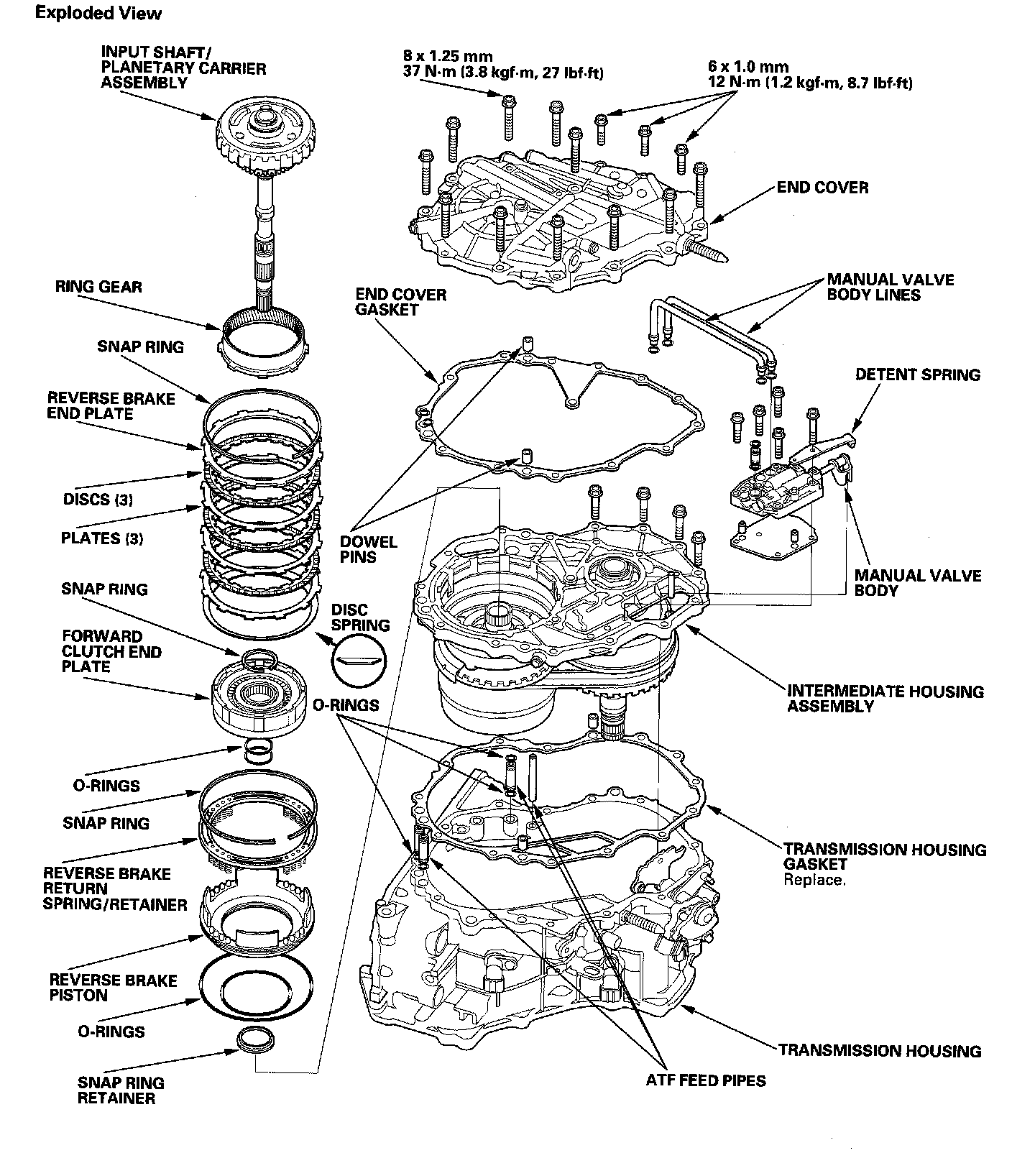

End Cover/Intermediate Housing




Forward Clutch, Reverse Brake, and Intermediate Housing Removal

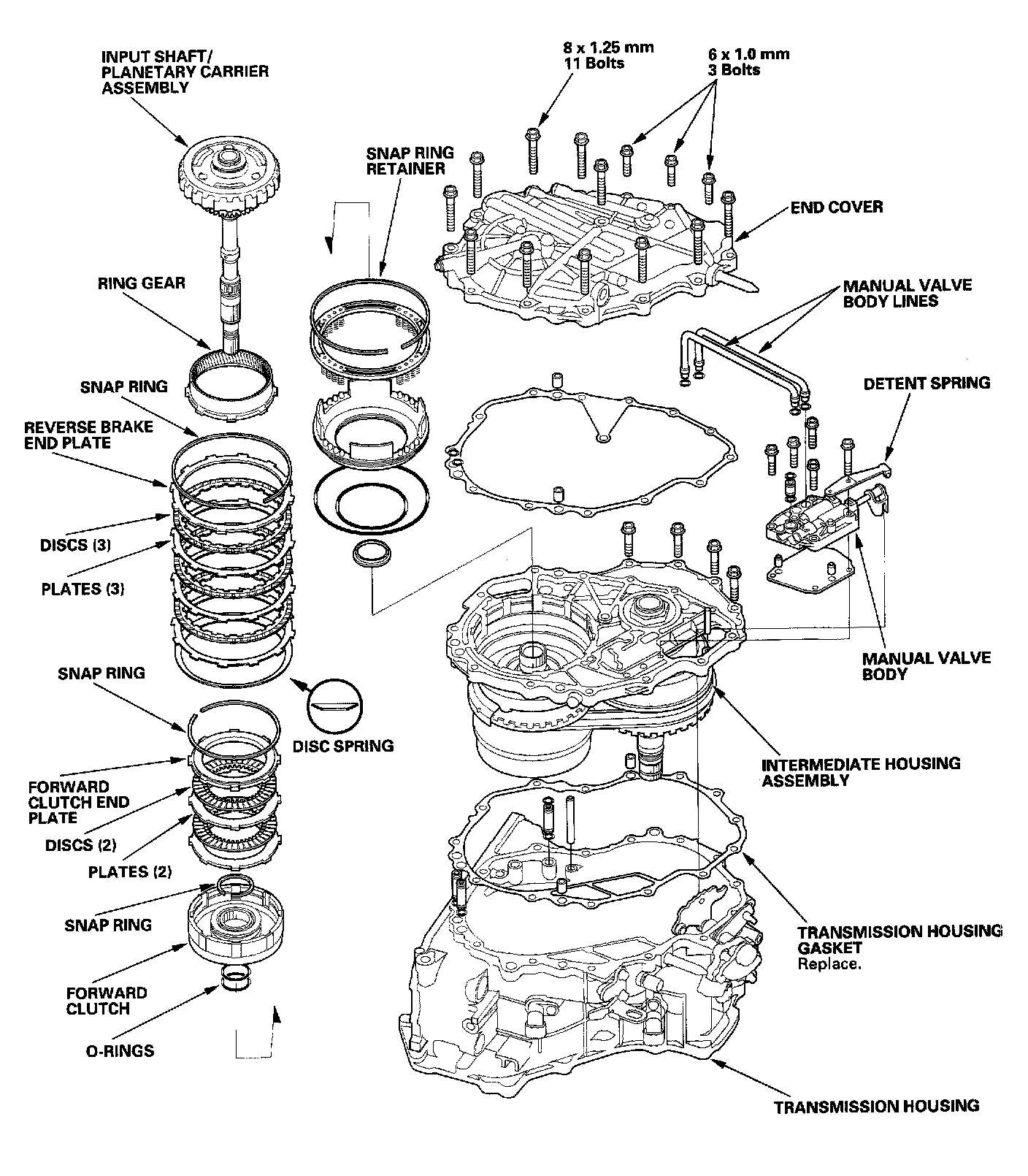

Intermediate Housing, Reverse Brake, and Forward Clutch Installation
