Home >> Honda >> 2003 >> Civic L4-1.7L CNG >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

231. OPDS Unit:

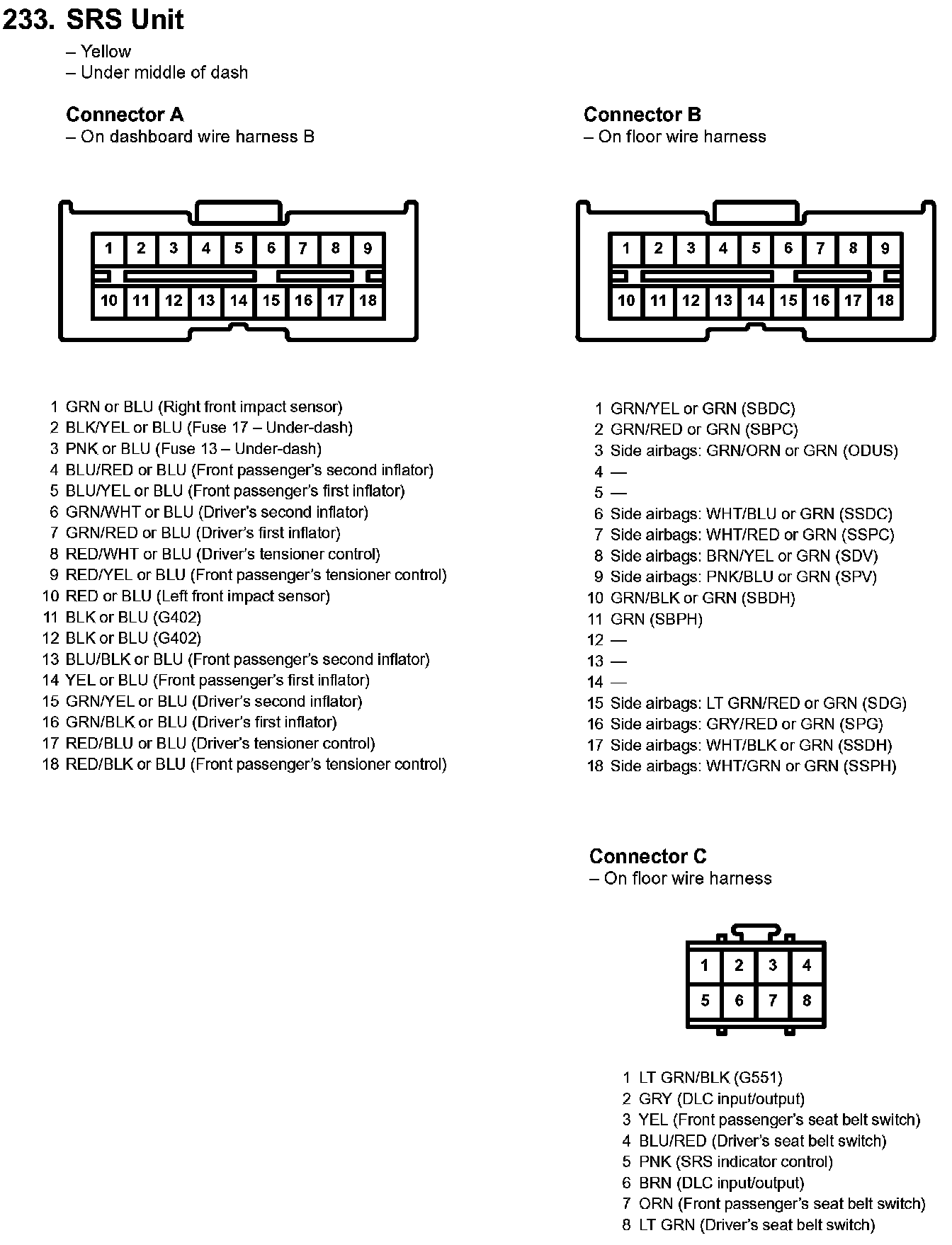

233. SRS Unit:
