Home >> Honda >> 2003 >> Civic L4-1.7L CNG >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Locations

Body Control Systems: Locations

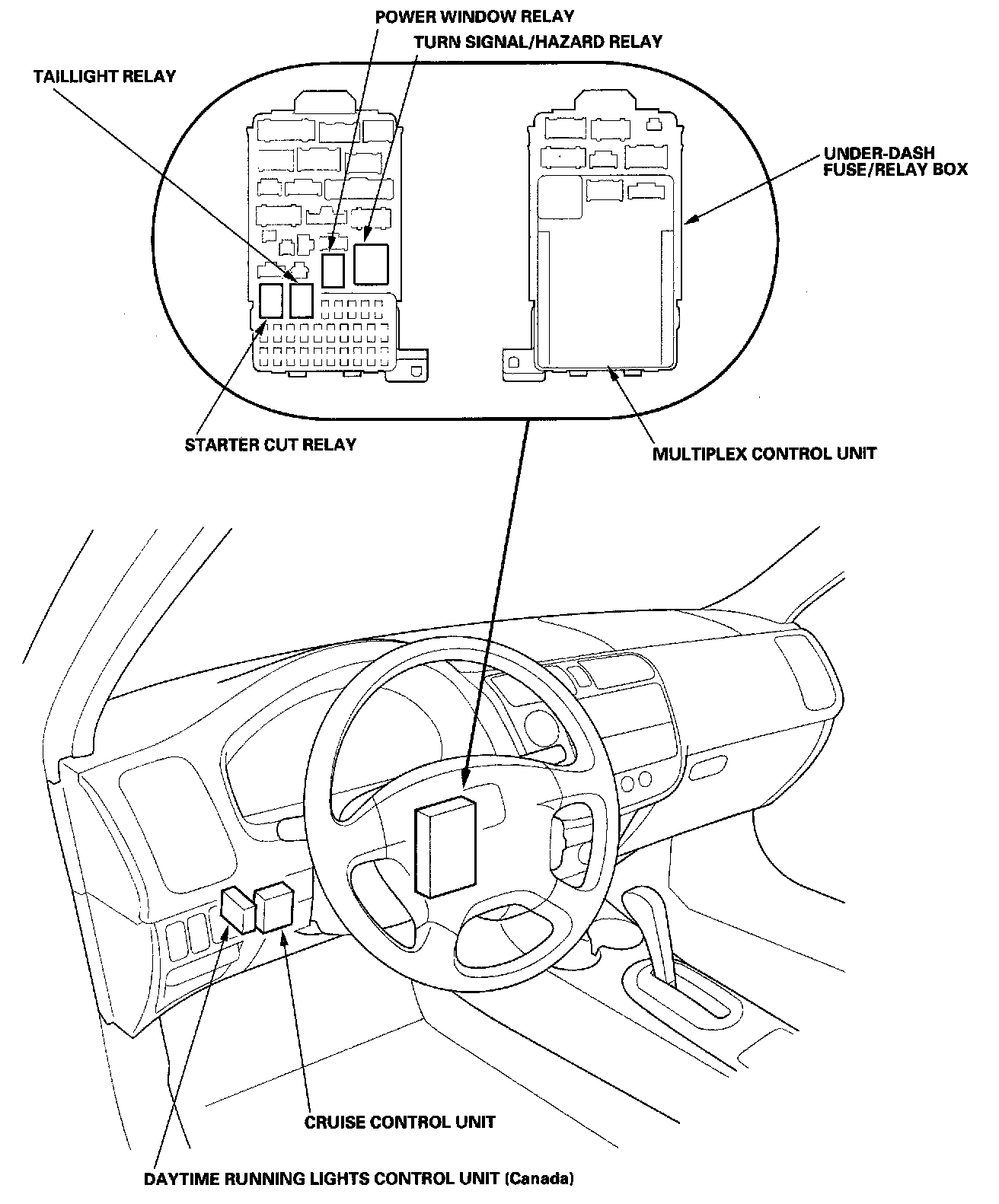

Relay And Control Unit Locations - Dashboard:

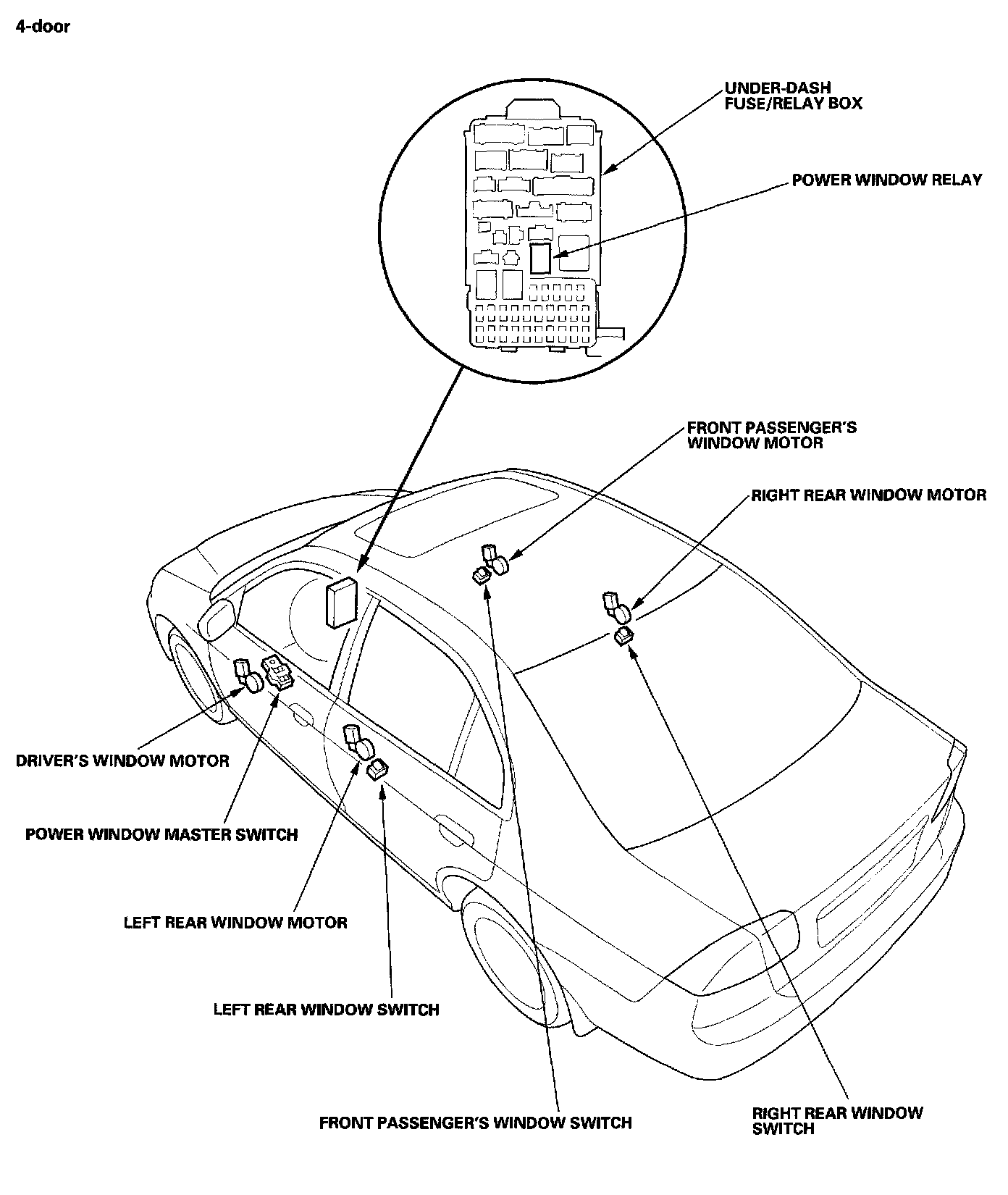

Power Windows Component Location Index:

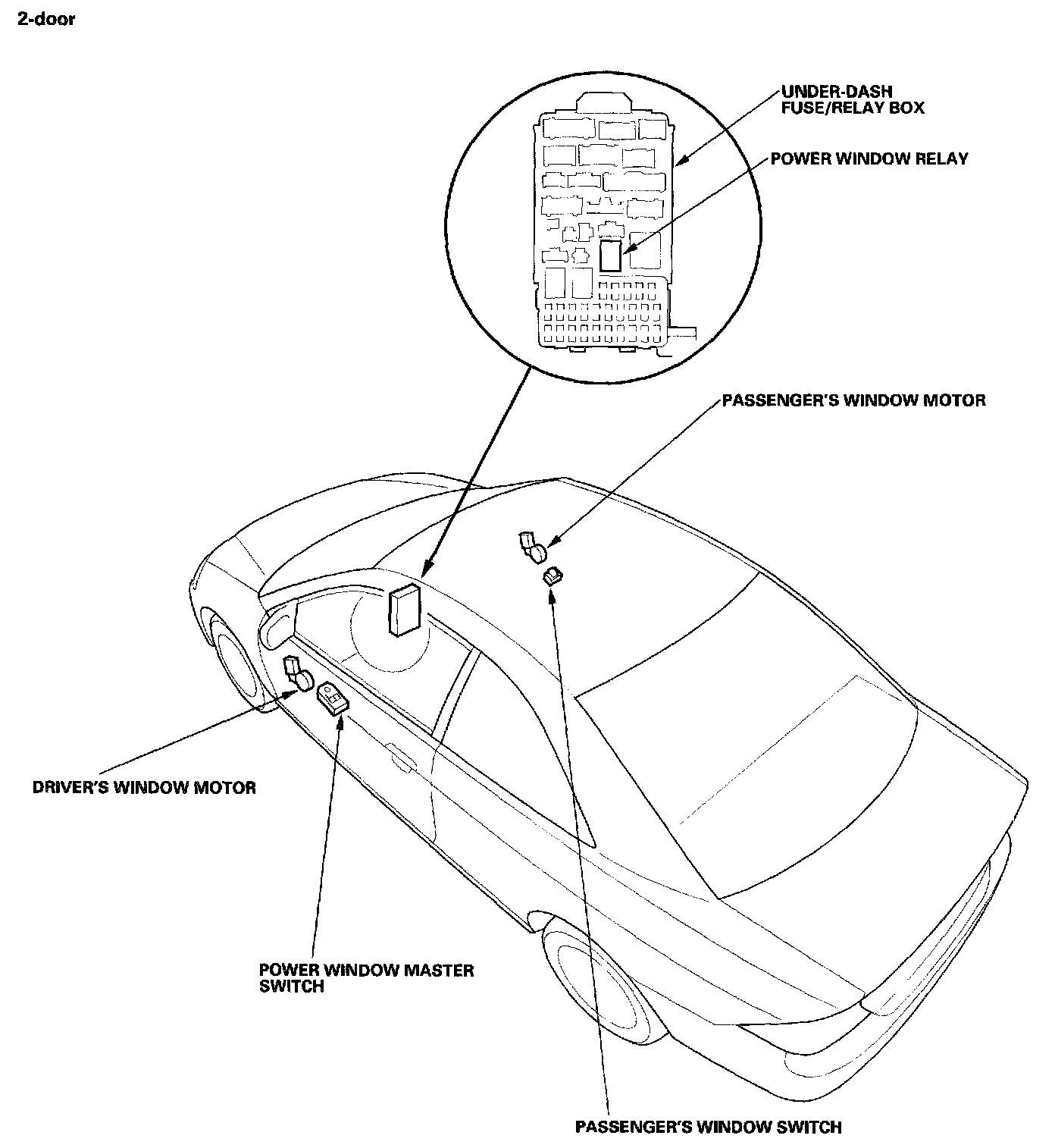

Power Windows Component Location Index:

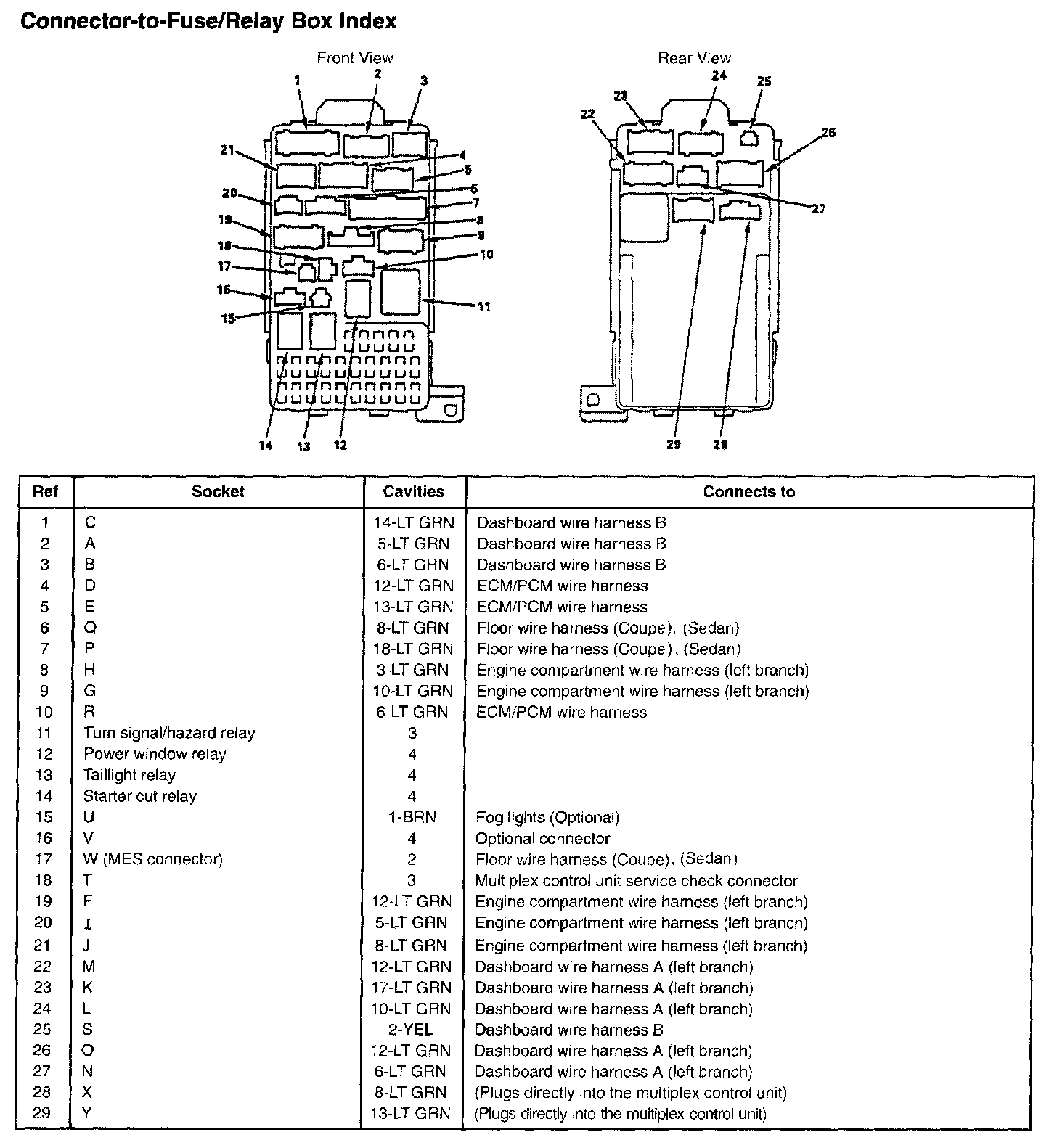

Under-dash Fuse/Relay Box:
