Home >> Honda >> 2003 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Cooling System >> Radiator Cooling Fan Control Module >> Locations

Radiator Cooling Fan Control Module: Locations

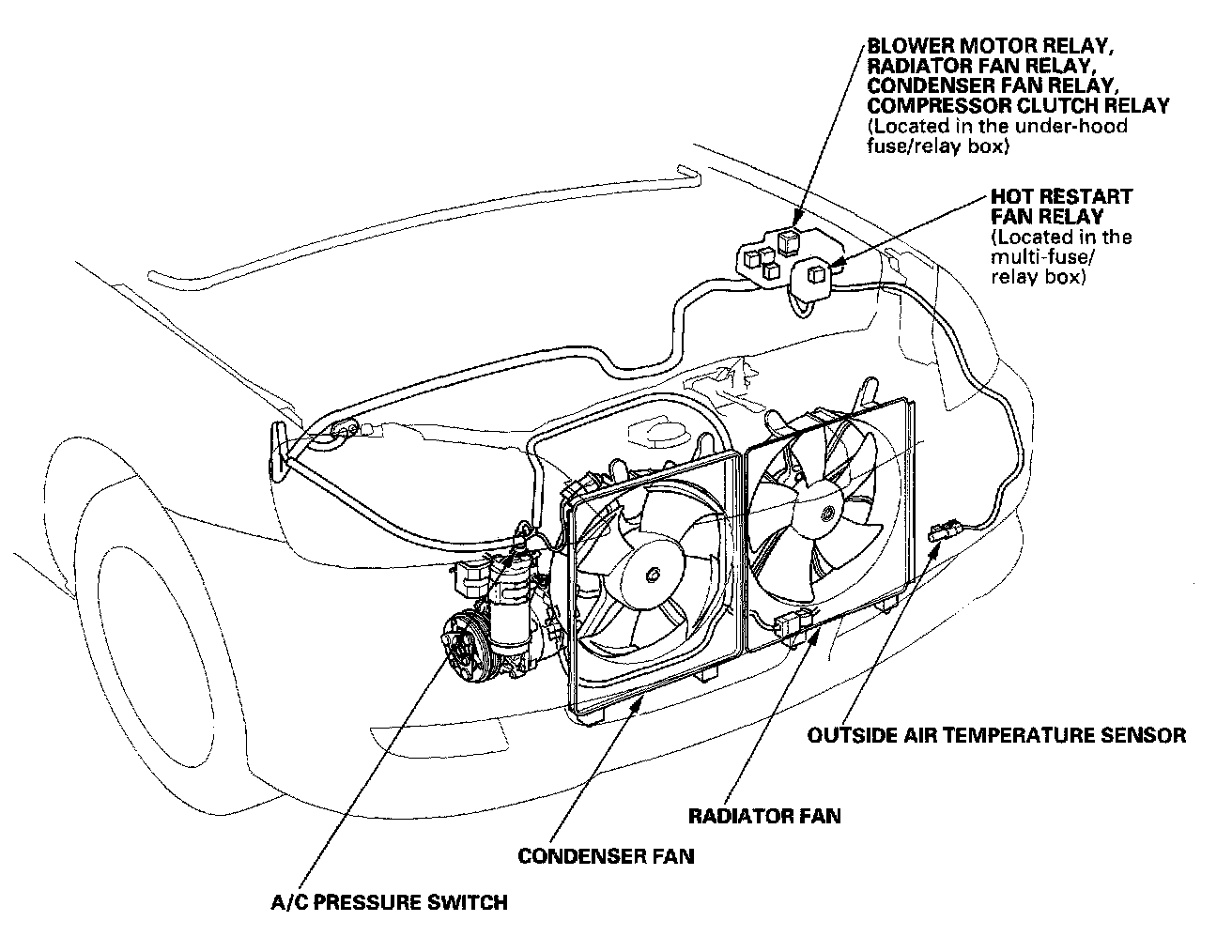

Climate Control - Component Location Index:

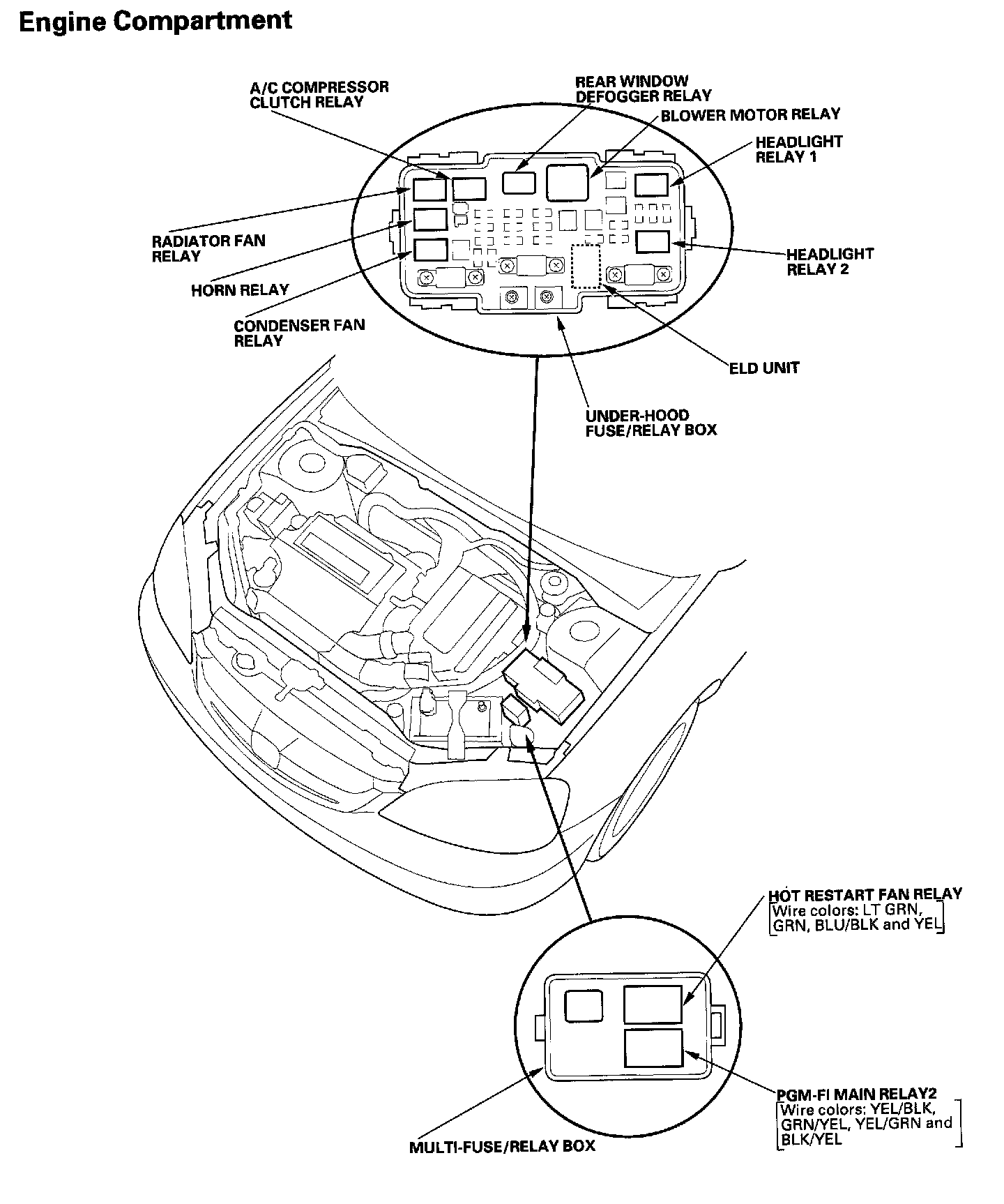

Relay And Control Unit Locations - Engine Compartment:
