Home >> Honda >> 2003 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Hybrid Drive Systems >> Power Control System >> Locations

Power Control System: Locations

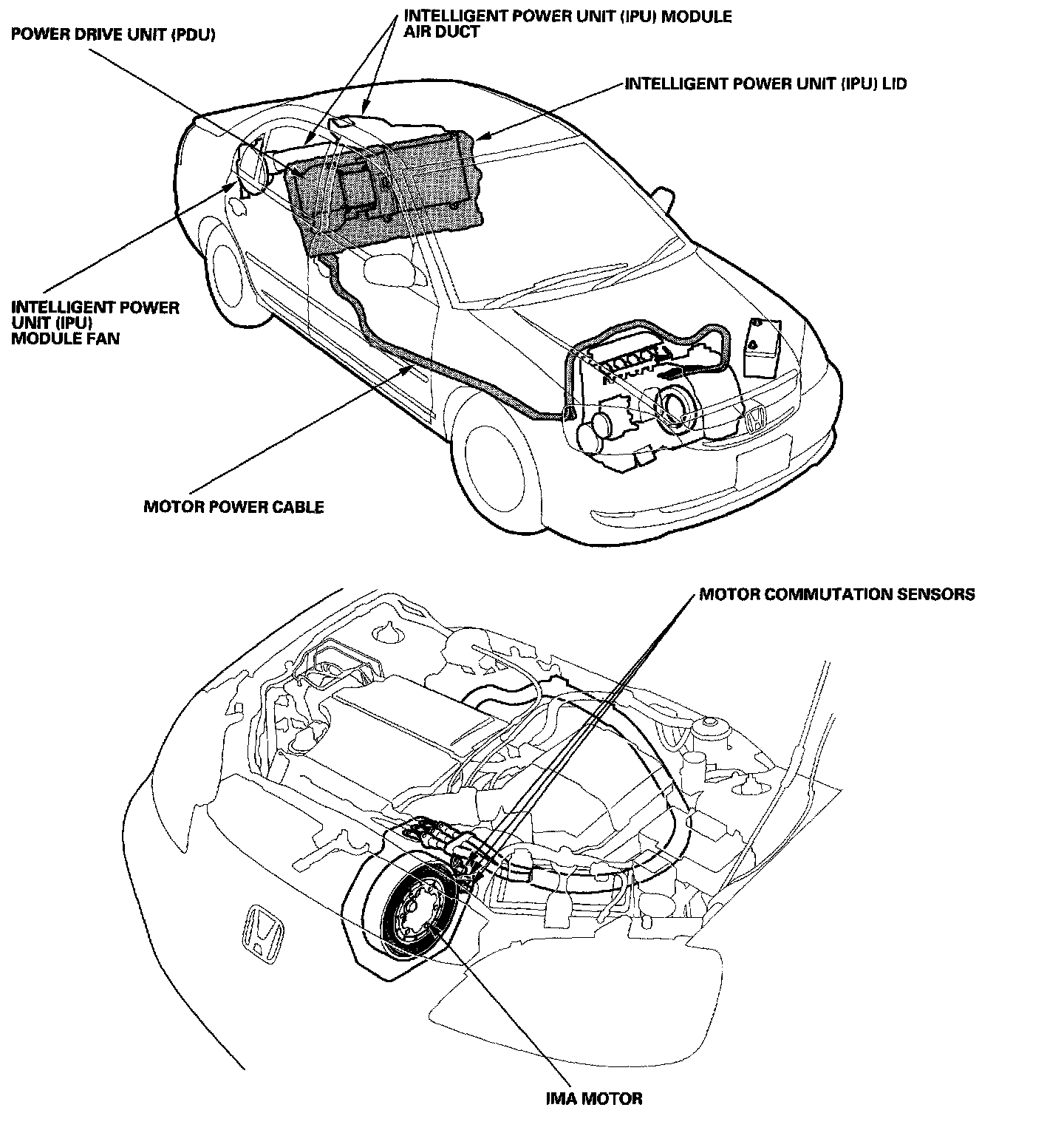

Component Location - Part 1:

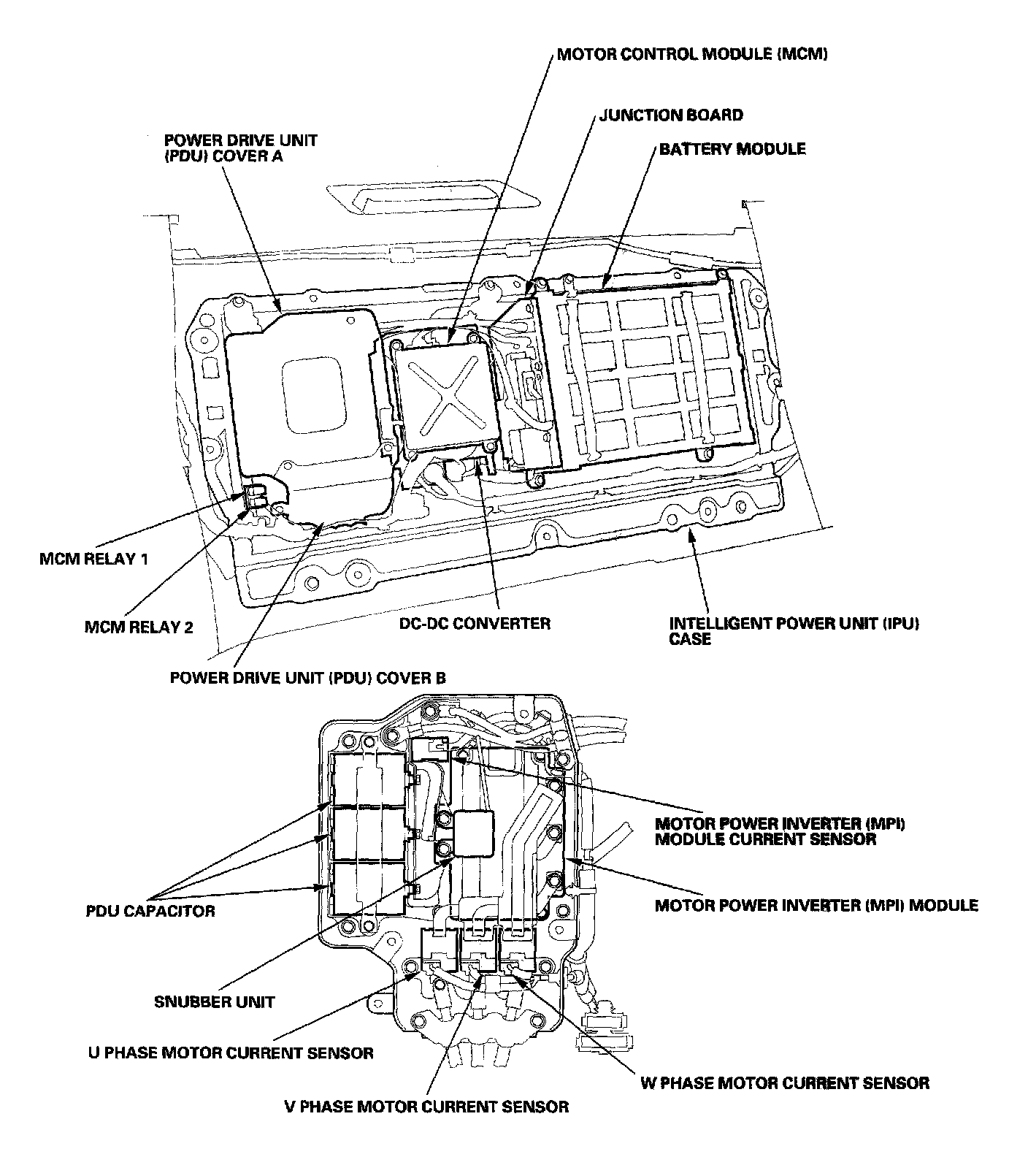

Component Location - Part 2:

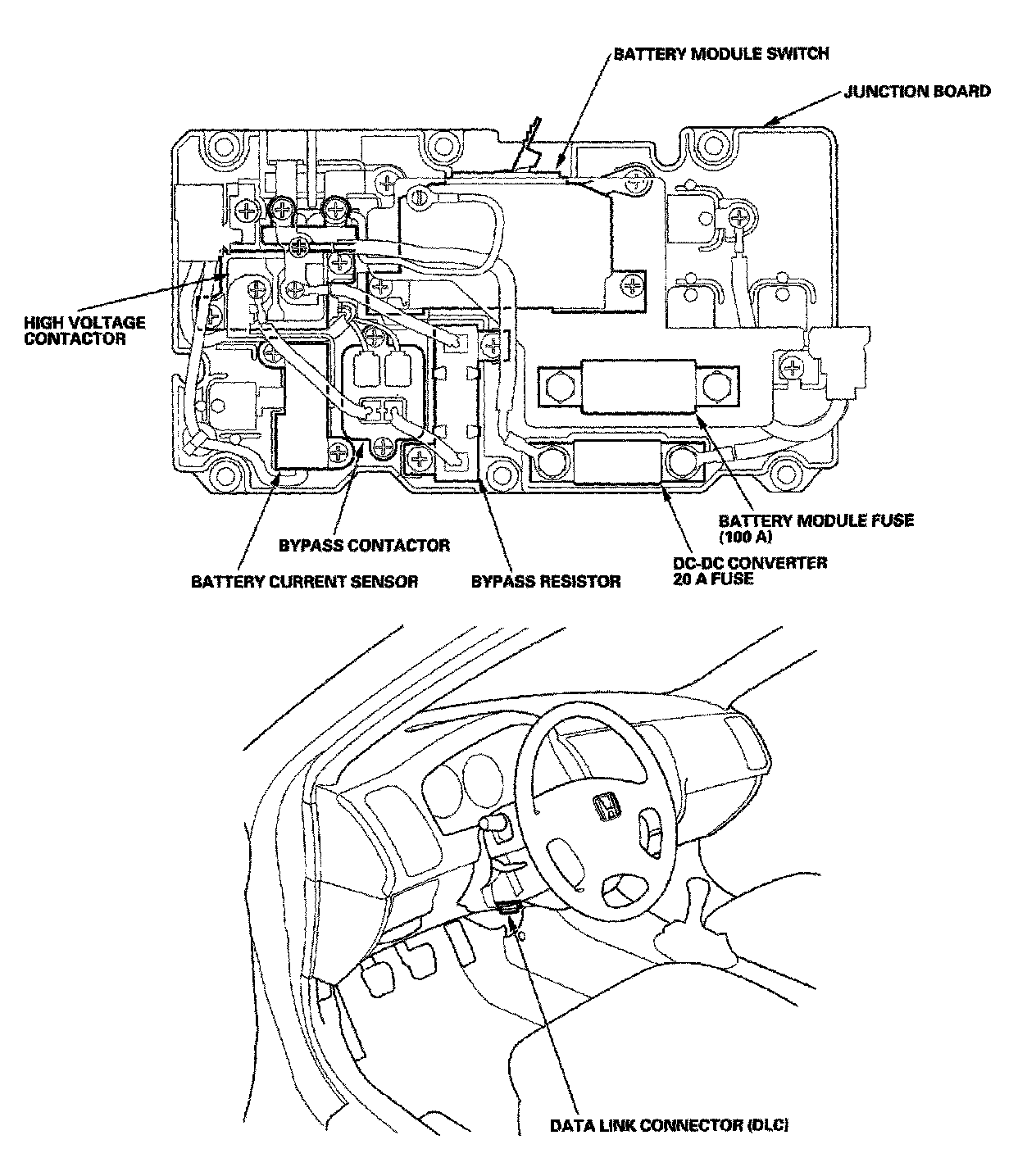

Component Location - Part 3:
