Manual Transmission/Transaxle

Transmission Disassembly

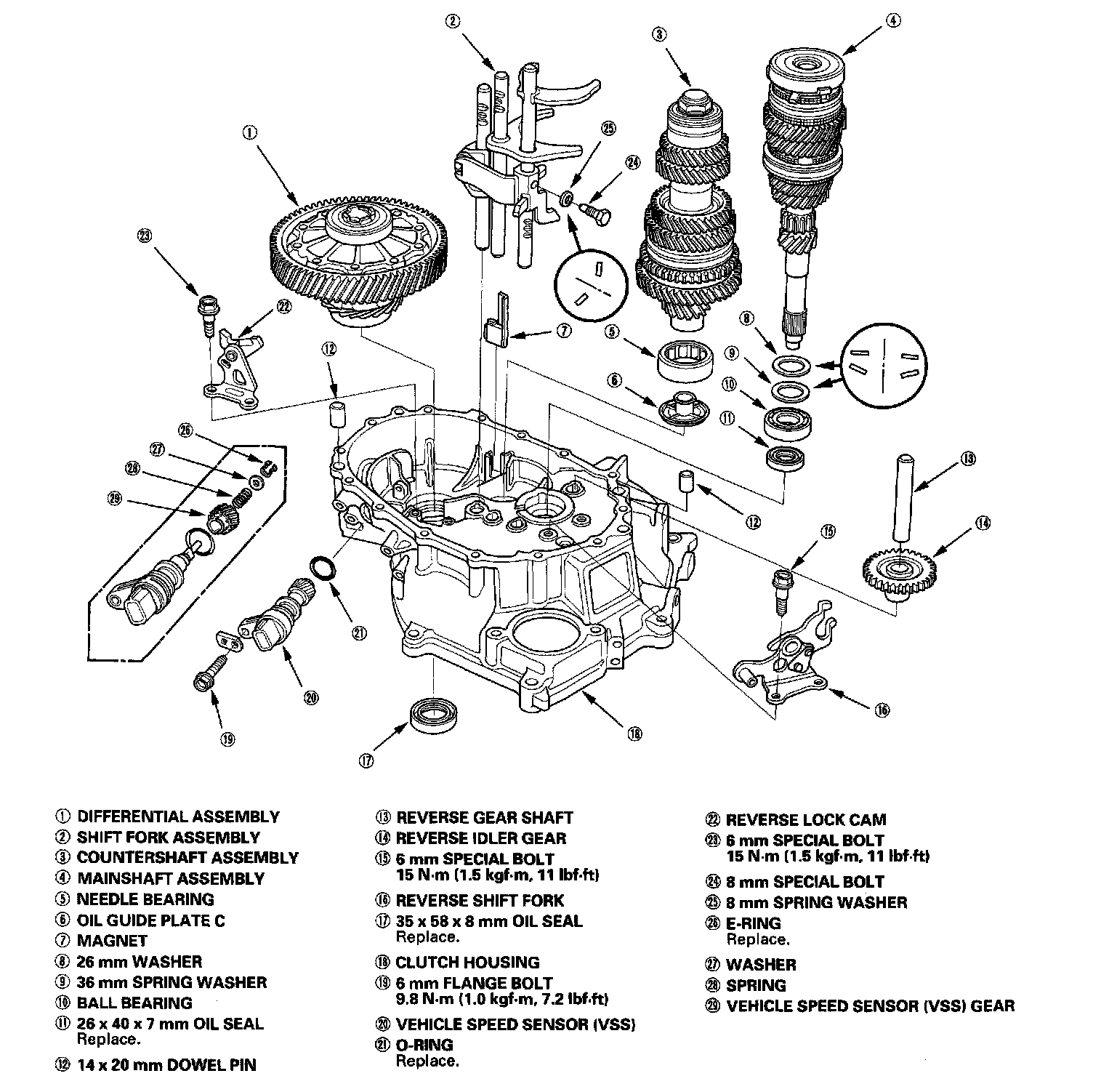

Exploded View -Clutch Housing

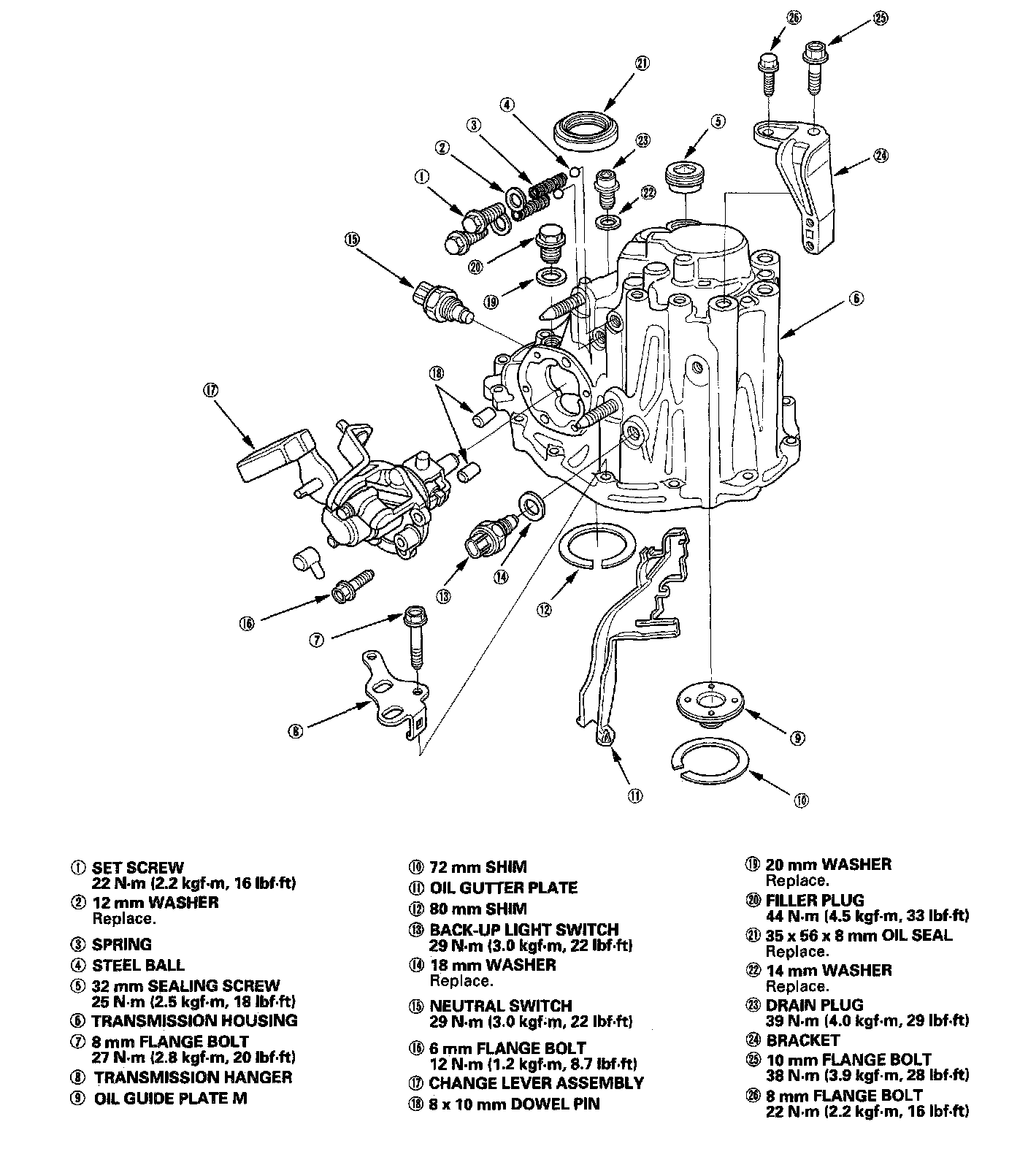

Exploded View - Transmission Housing

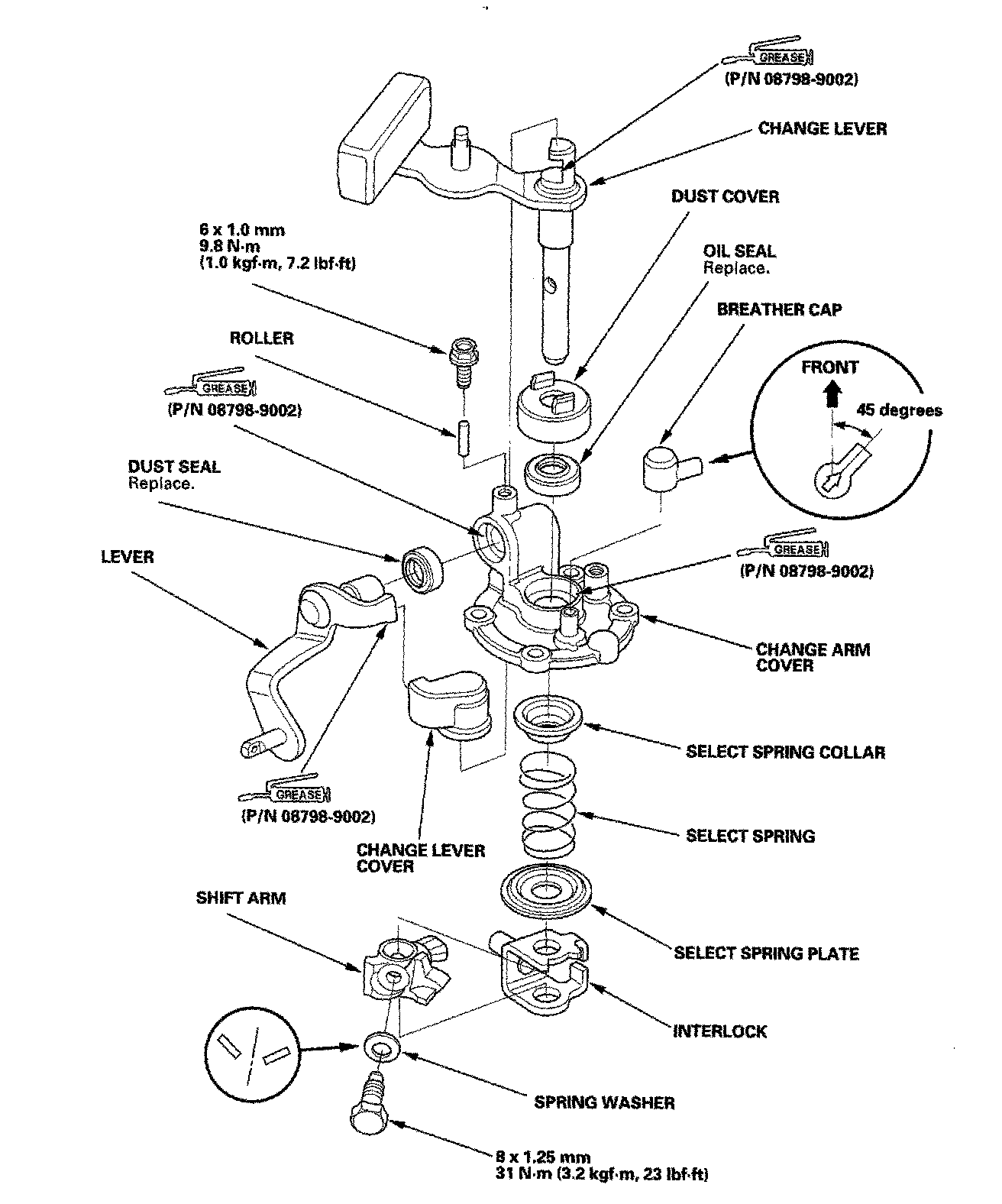

Change Lever Assembly Disassembly/Reassembly

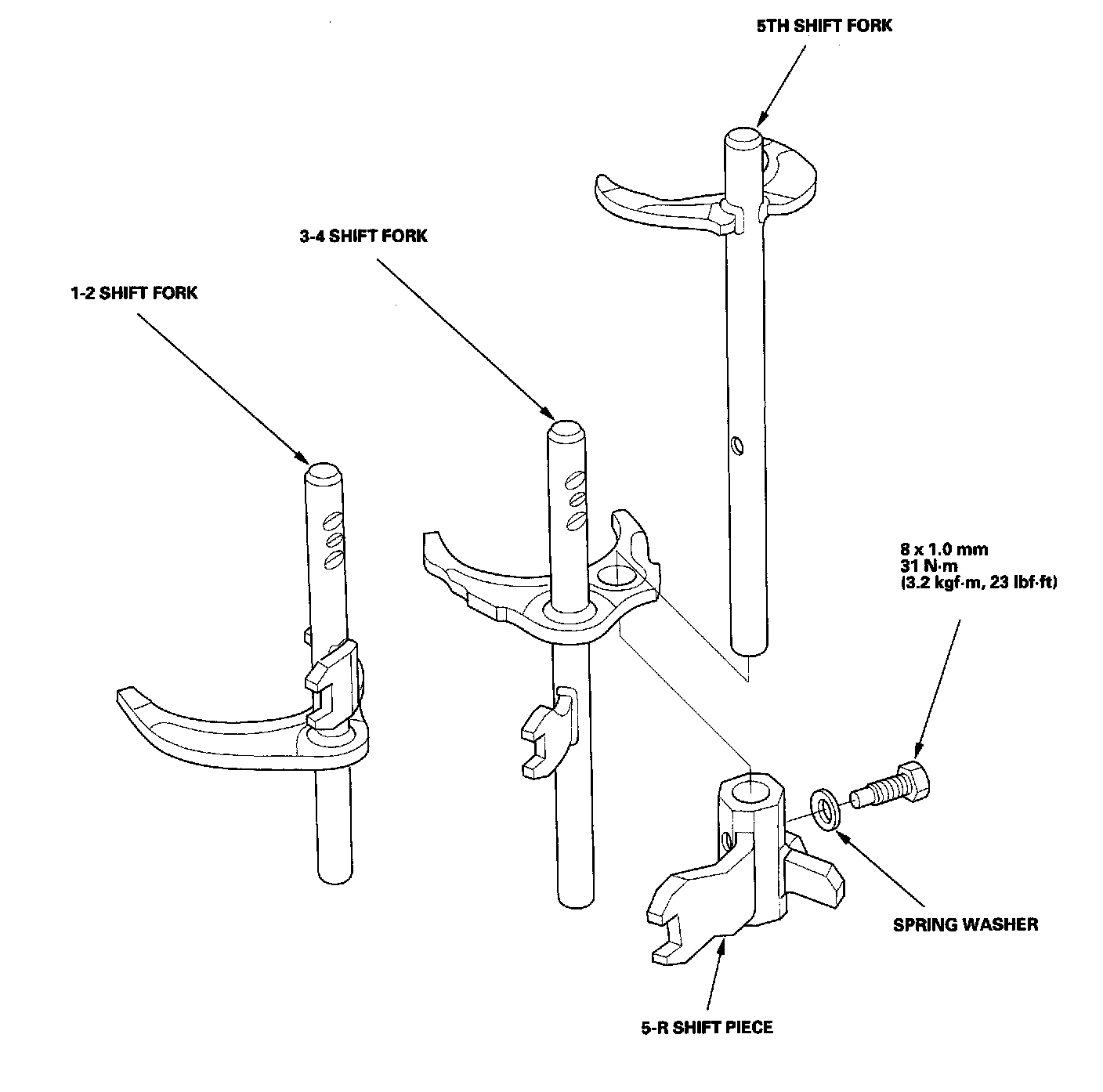

Shift Forks Disassembly/Reassembly

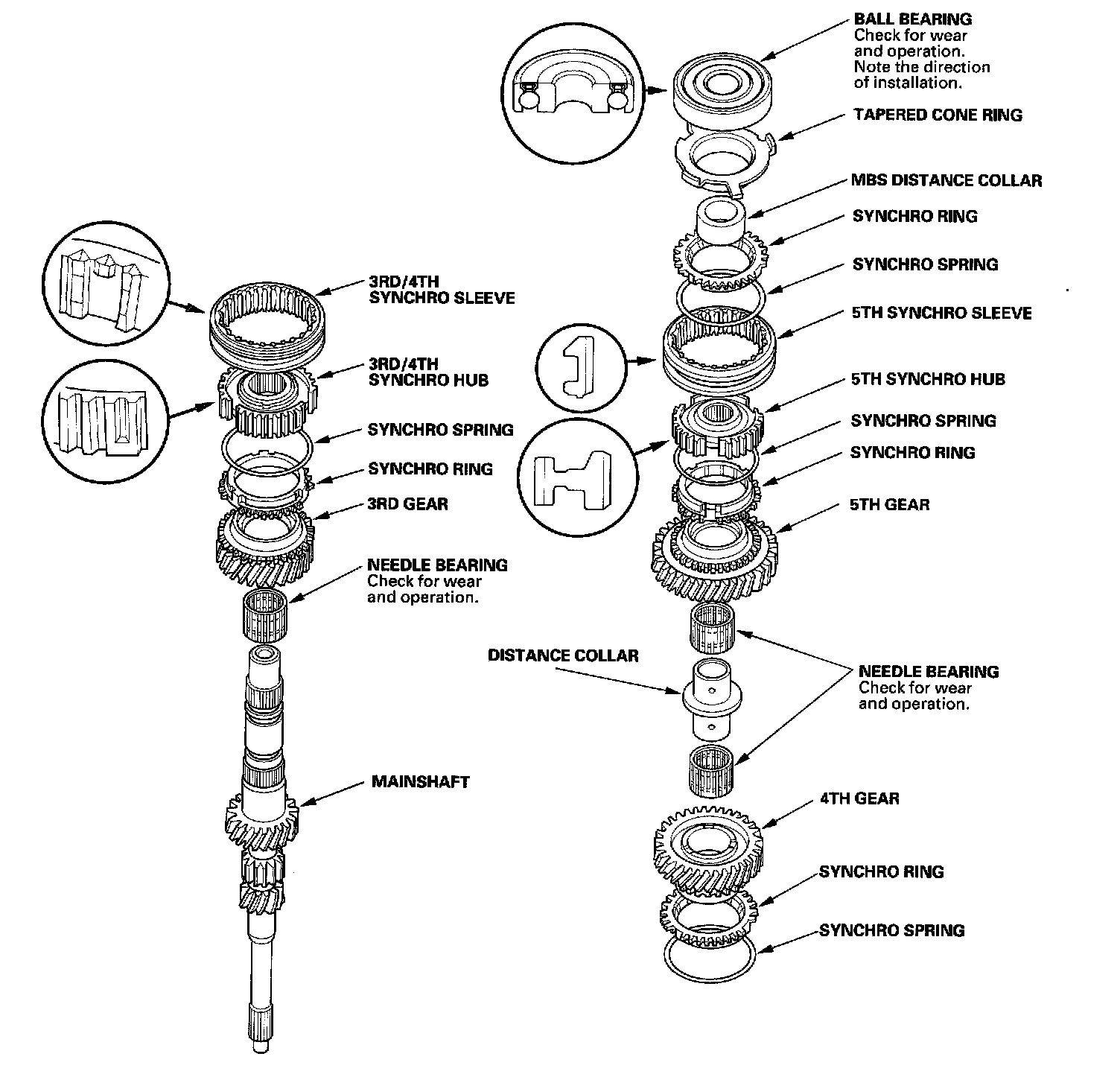

Mainshaft Reassembly

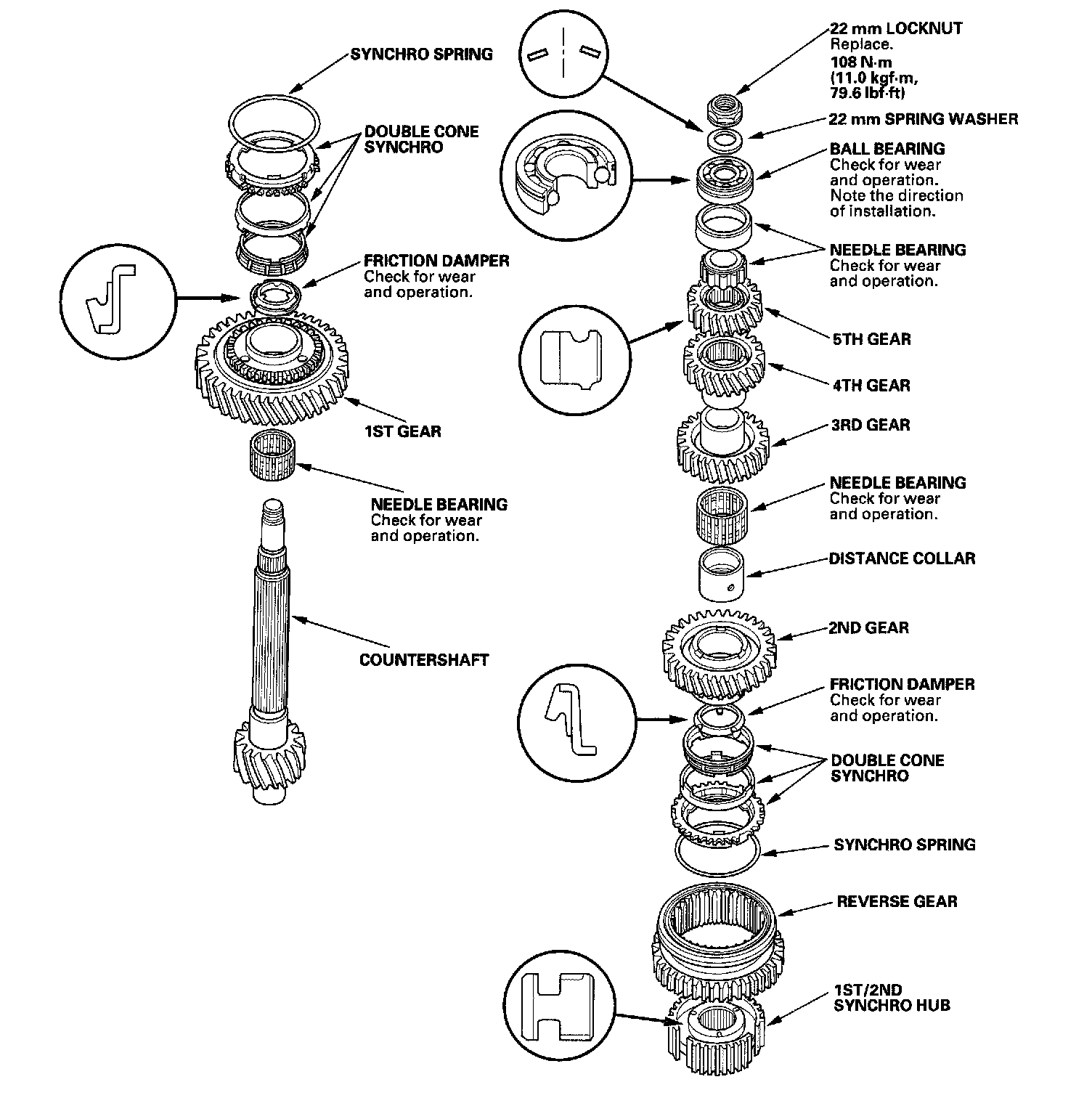

Countershaft Reassembly

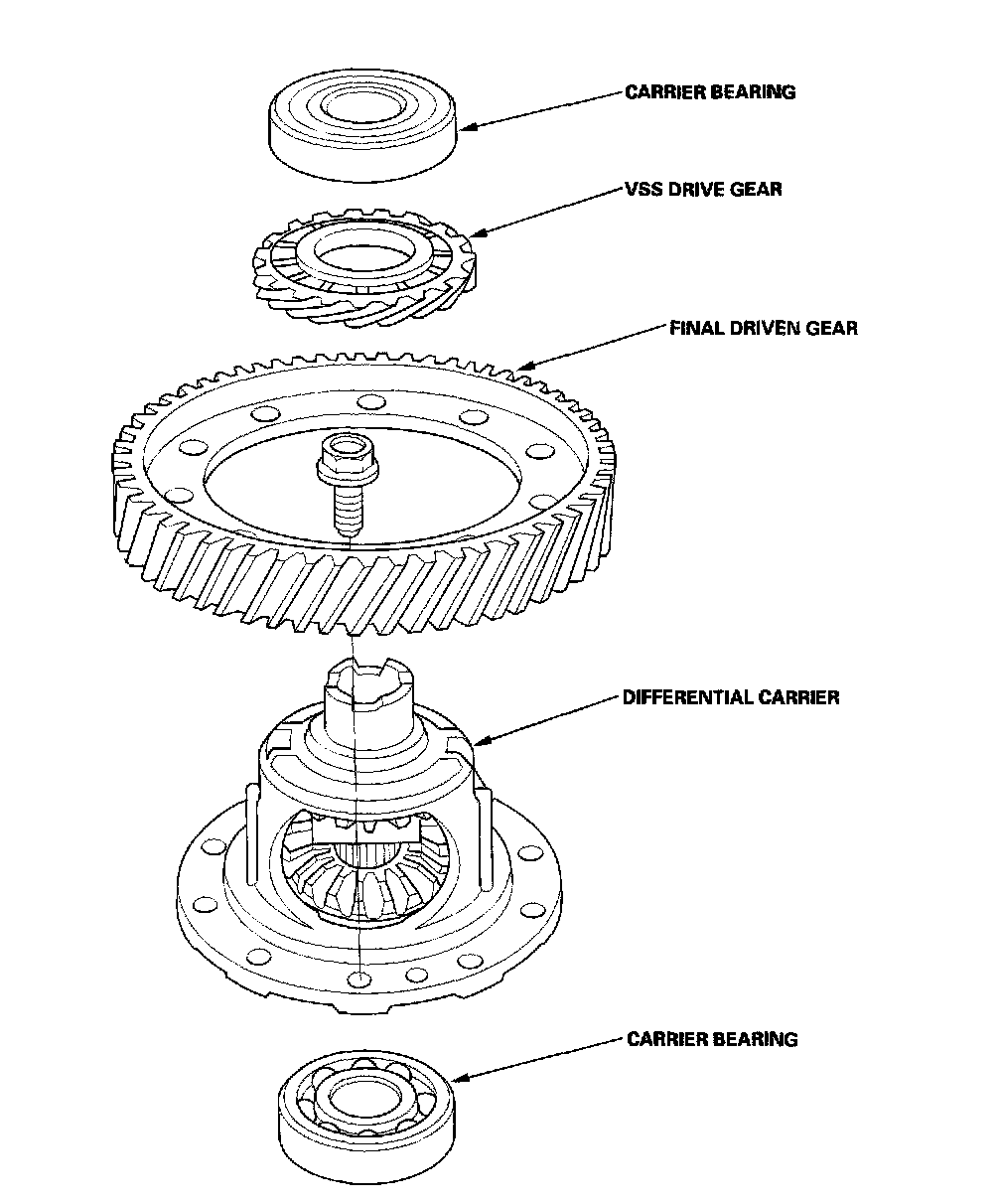

M/T Differential Component Location Index
