Engine Control Module Terminal Arrangement

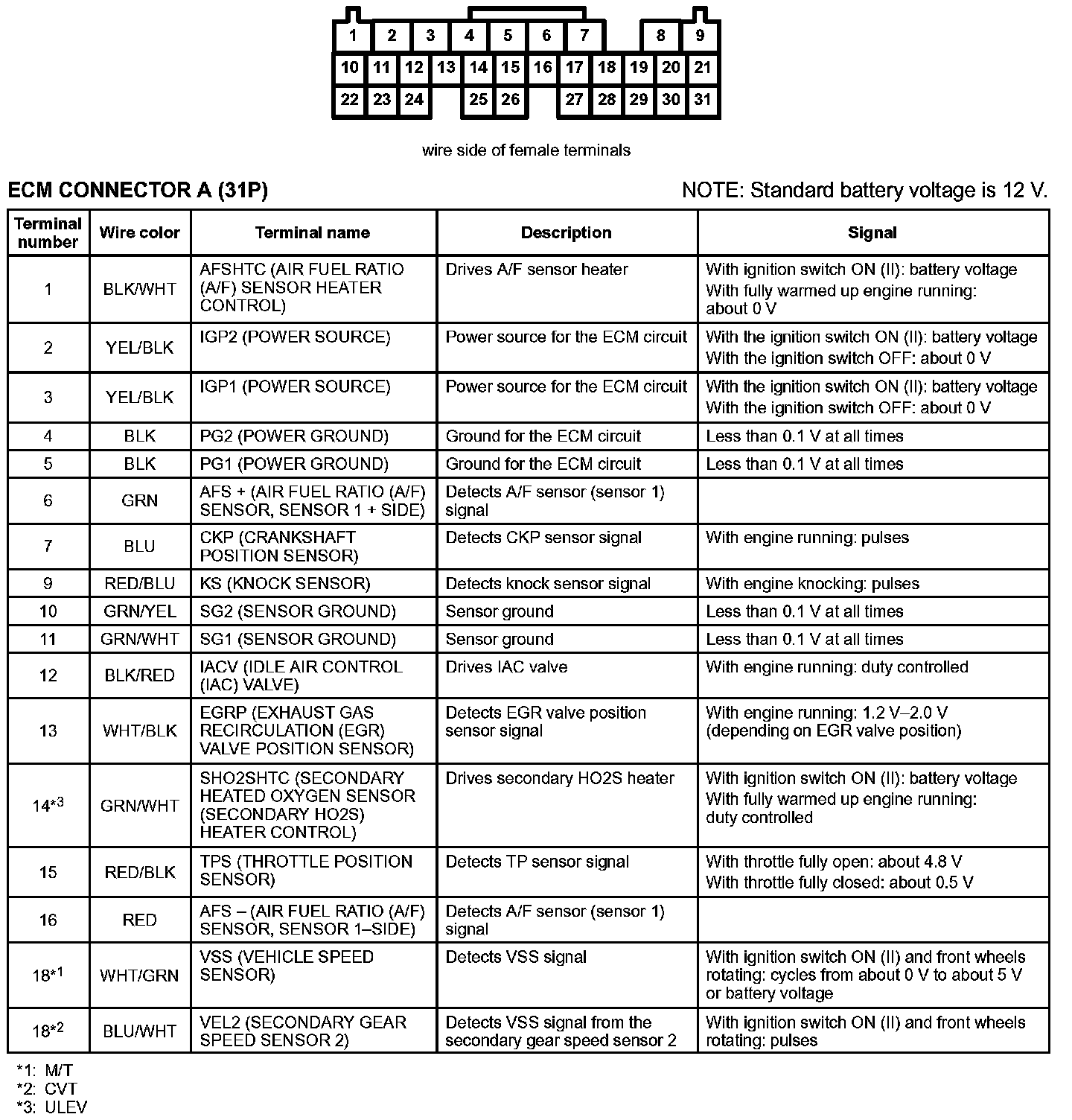

ECM Connector A (31P) Part 1:

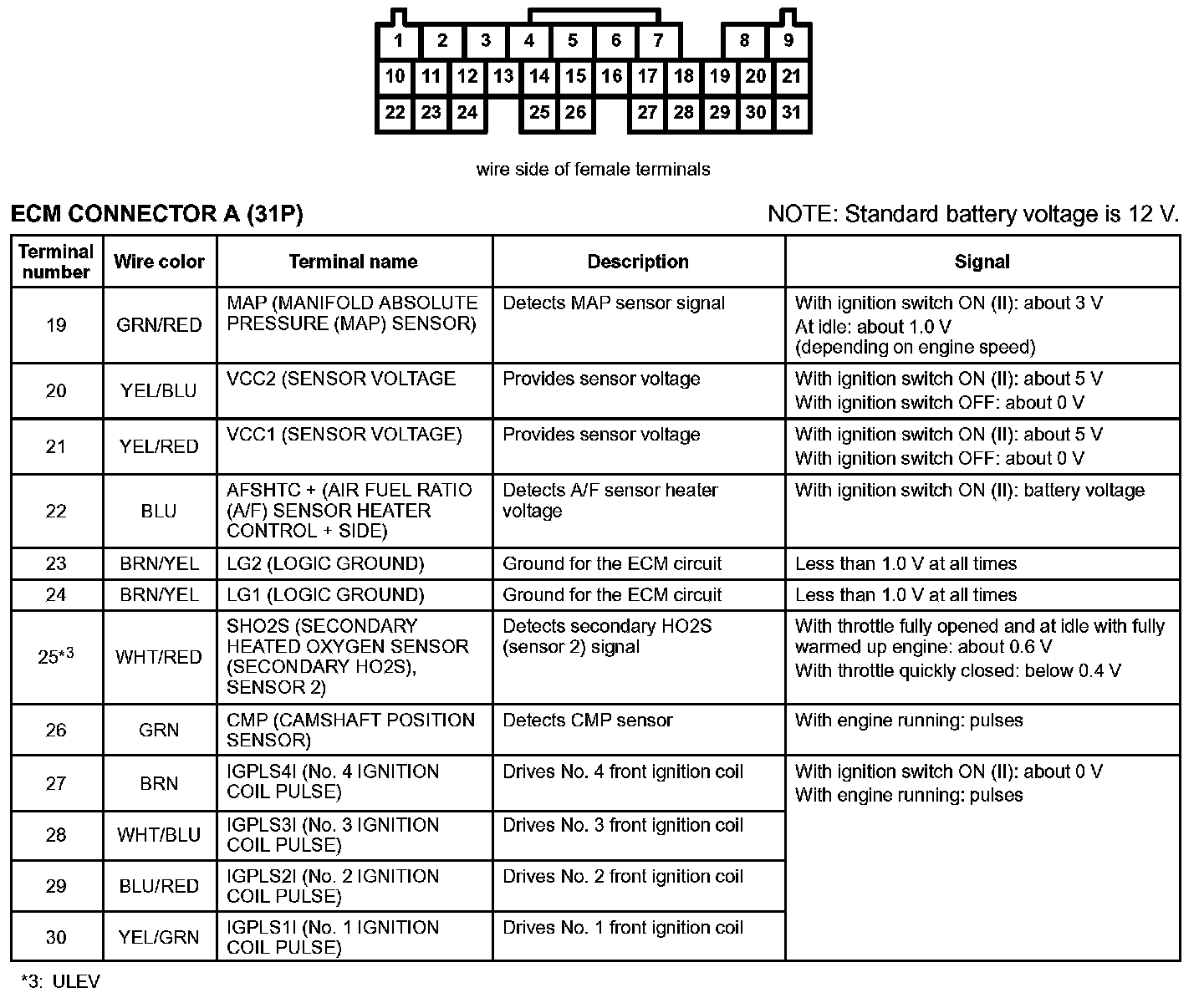

ECM Connector A (31P) Part 2:
