Home >> Honda >> 2003 >> Civic L4-1.3L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, CVT

Control Module, CVT

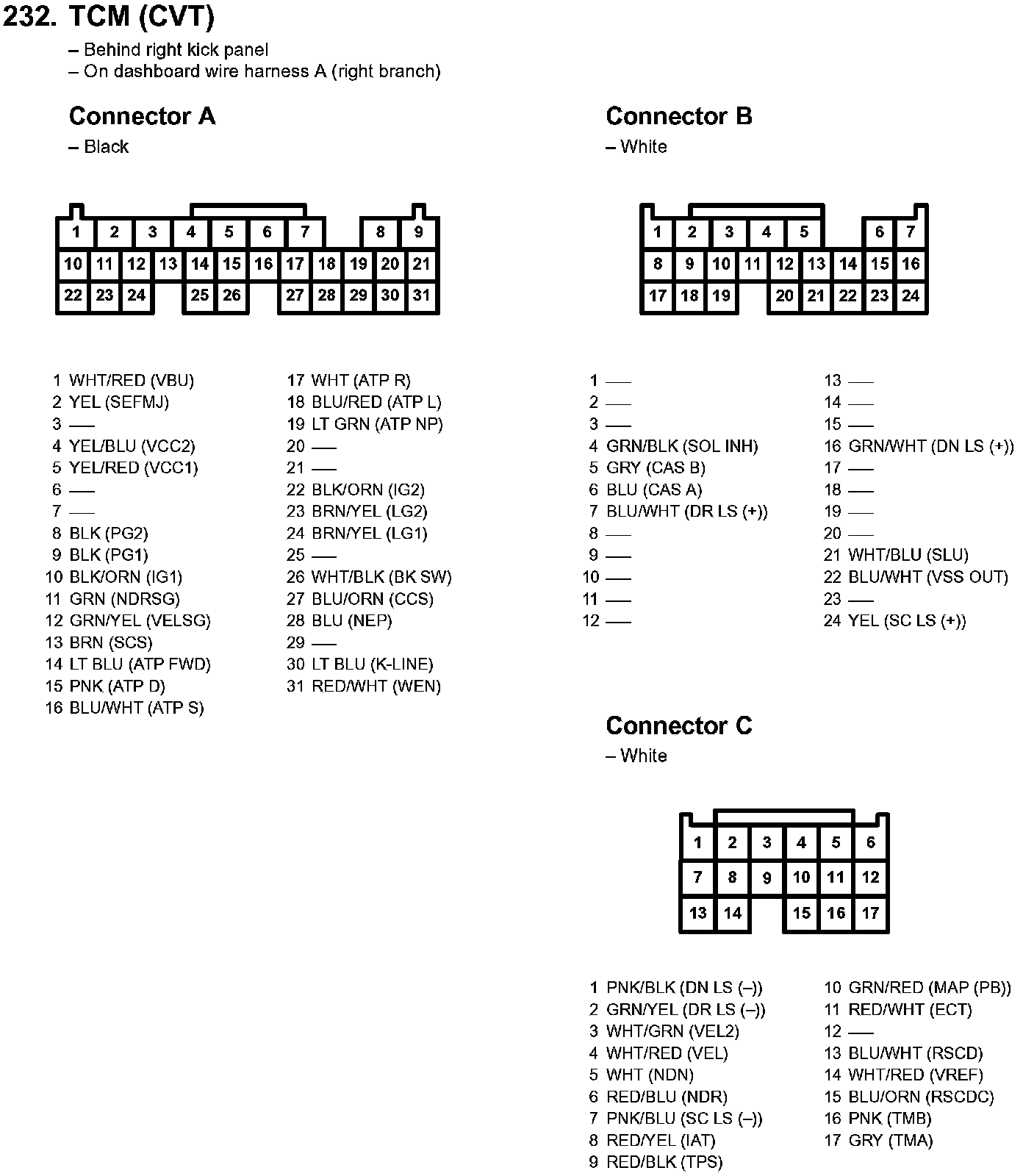

232. TCM (CVT):
