Power Window Switch: Locations

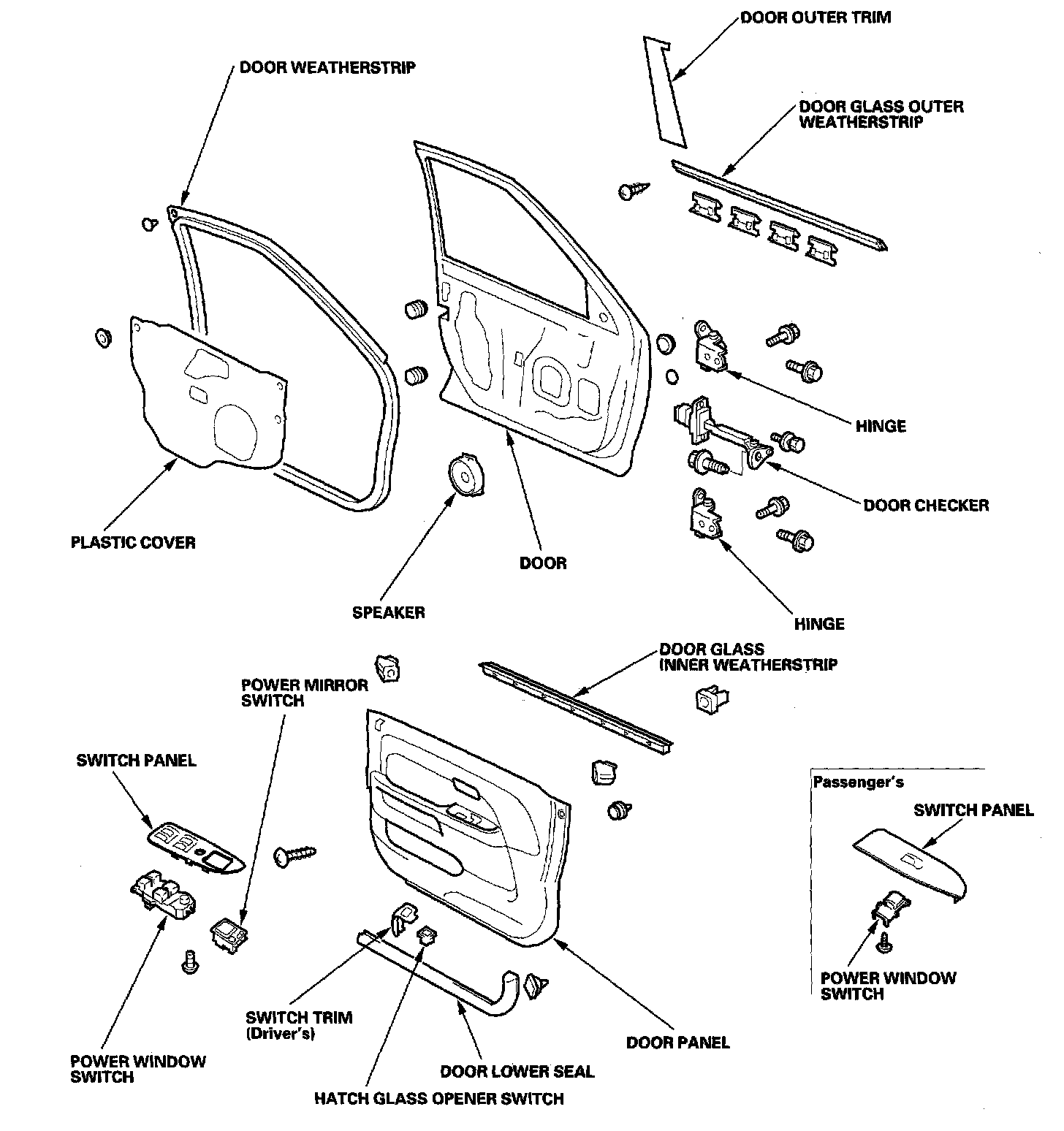

Front Door Component Location Index:

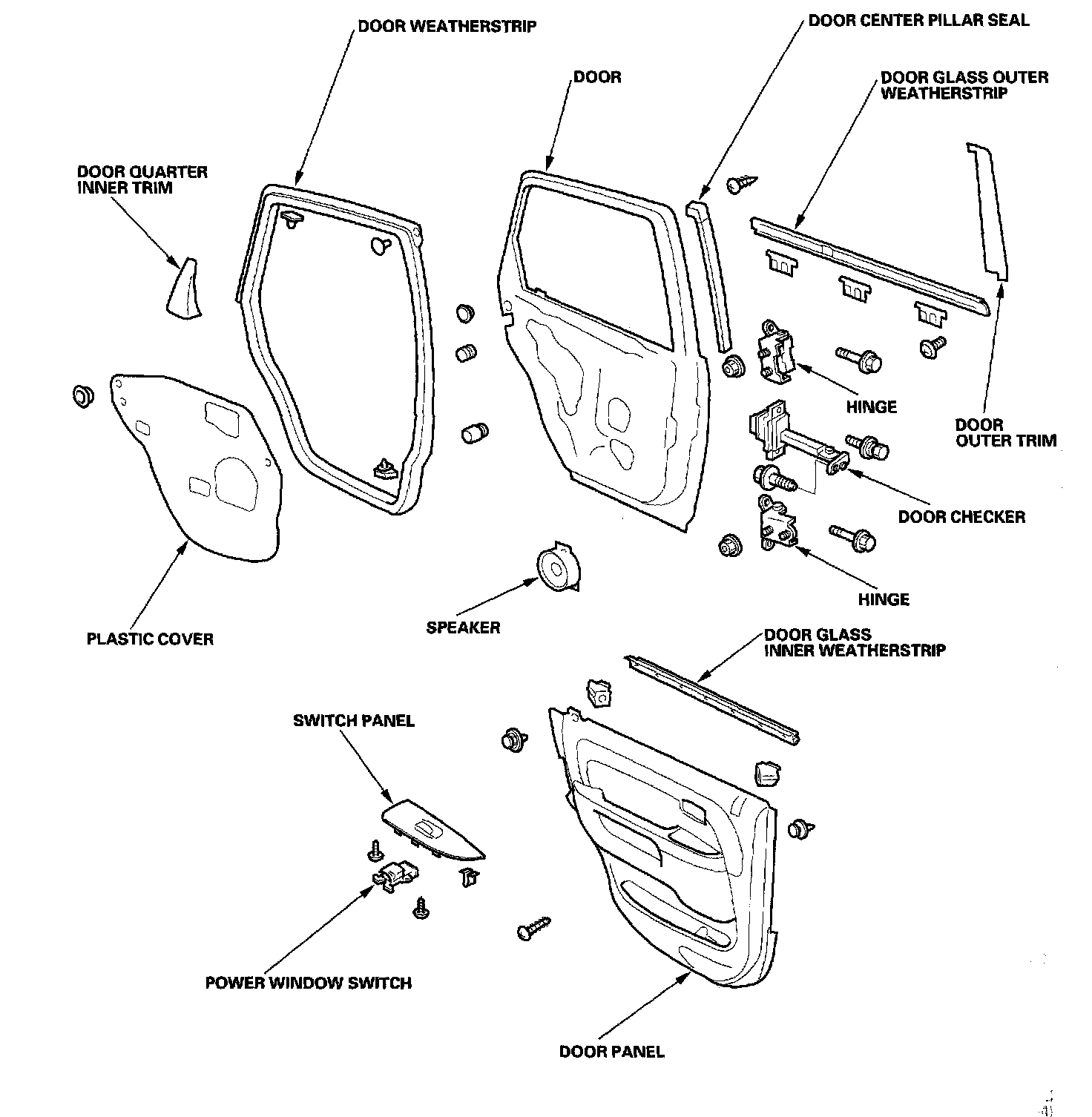

Rear Door Component Location Index:

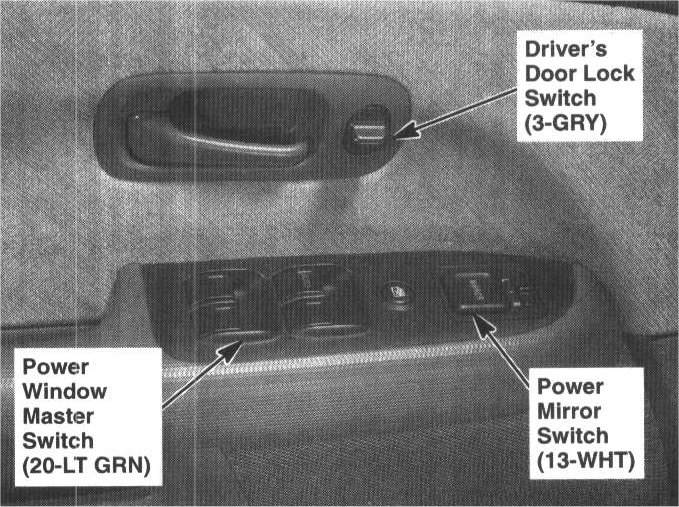

107. Driver's Door:

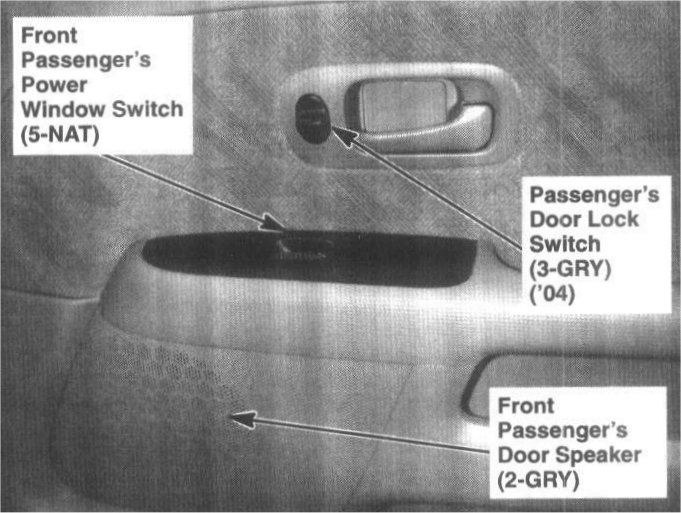

111. Front Passenger's Door:

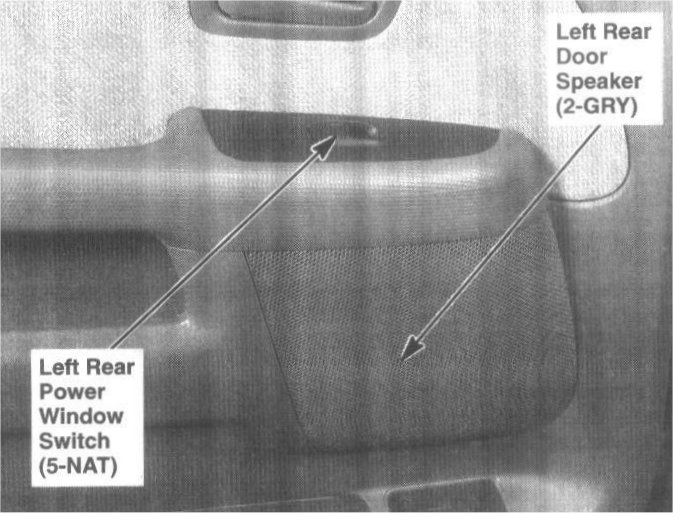

114. Left Rear Door (Right Similar):
