Home >> Honda >> 2003 >> CR-V 2WD L4-2.4L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Restraints and Safety Systems >> Air Bag Control Module >> Locations

Air Bag Control Module: Locations

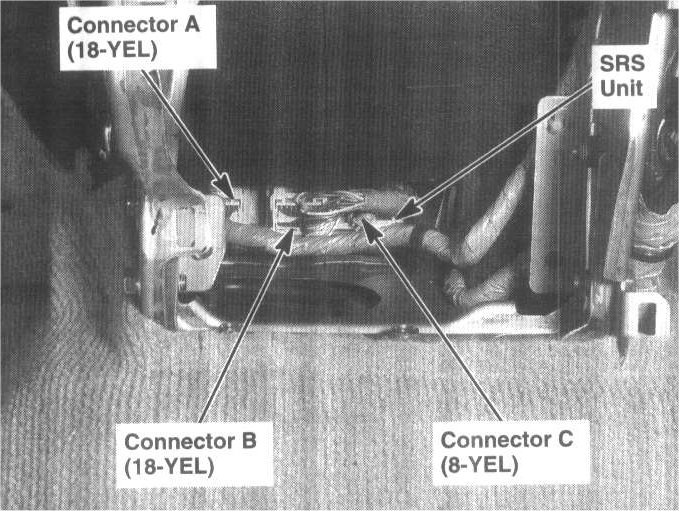

73. Under Middle of Dash:

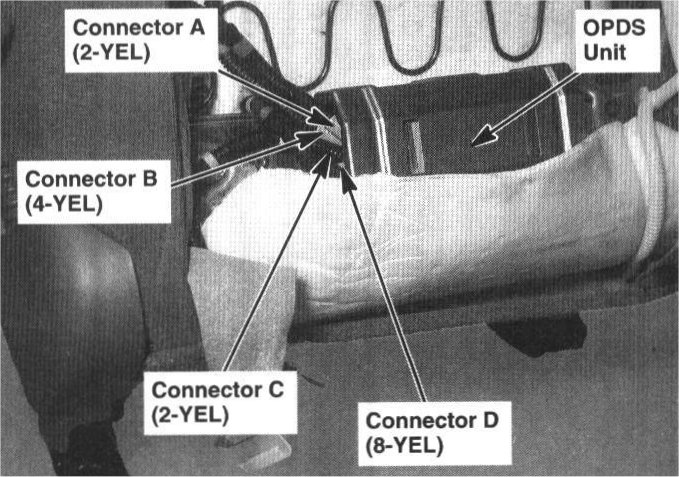

93. In Front Passenger's Seat (Side Airbag):
