Variable Induction Position Sensor: Service and Repair

IMRC Valve Position Sensor Replacement

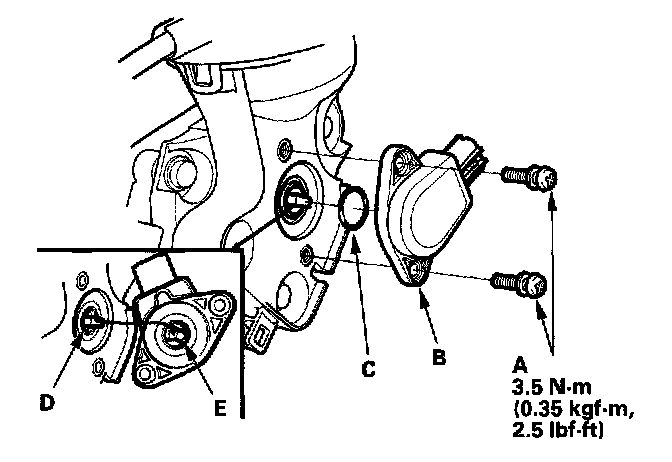

1. Remove the two screws (A) and the IMRC position sensor(B).
2. Install the sensor with a new O-ring (C), and make sure the projection (D) inside the IMRC valve matches up with the groove (E) in the sensor.
