Heating and Air Conditioning: Locations

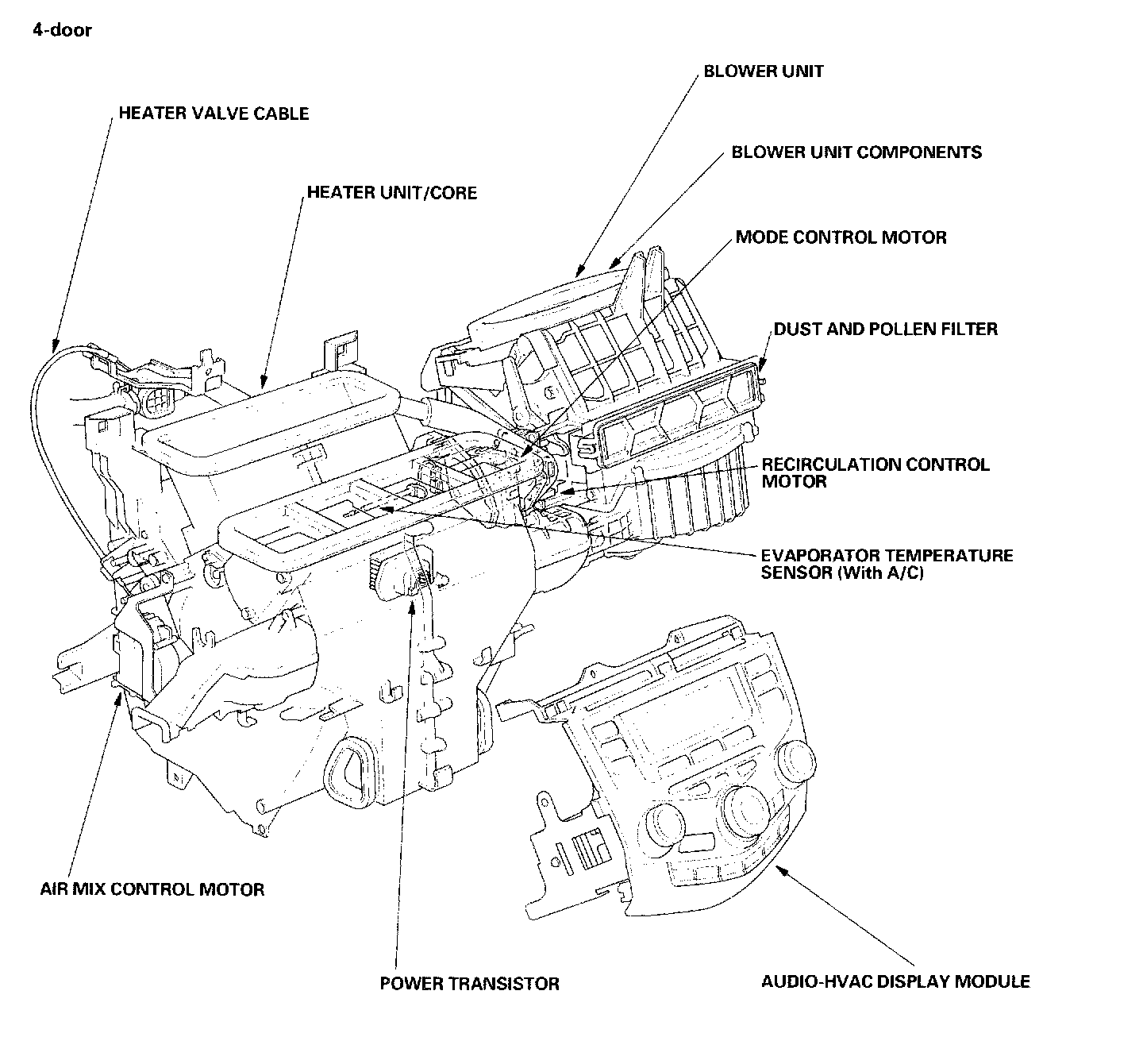

Heating/Air Conditioning Component Location Index (4-door):

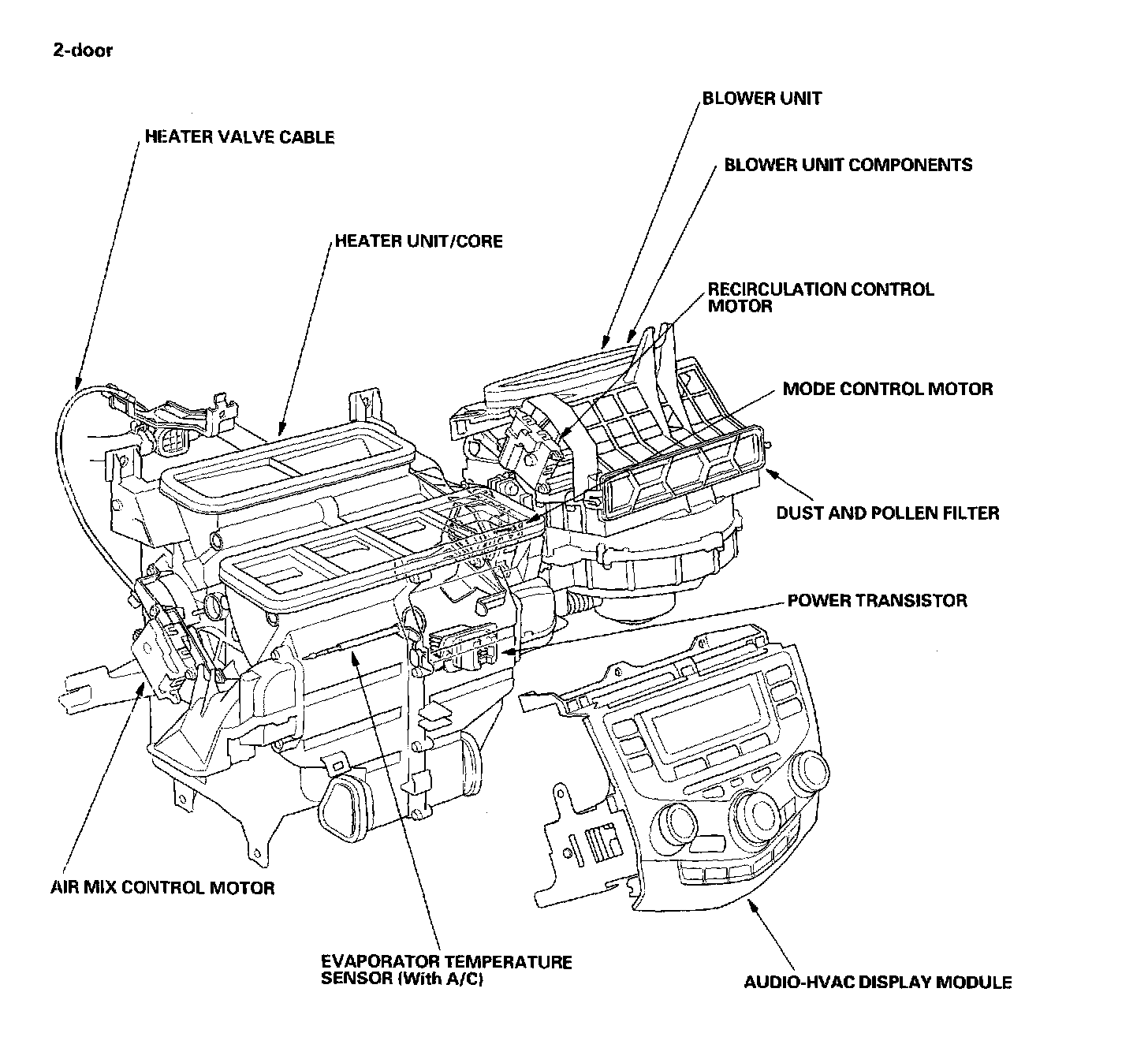

Heating/Air Conditioning Component Location Index (2-door):

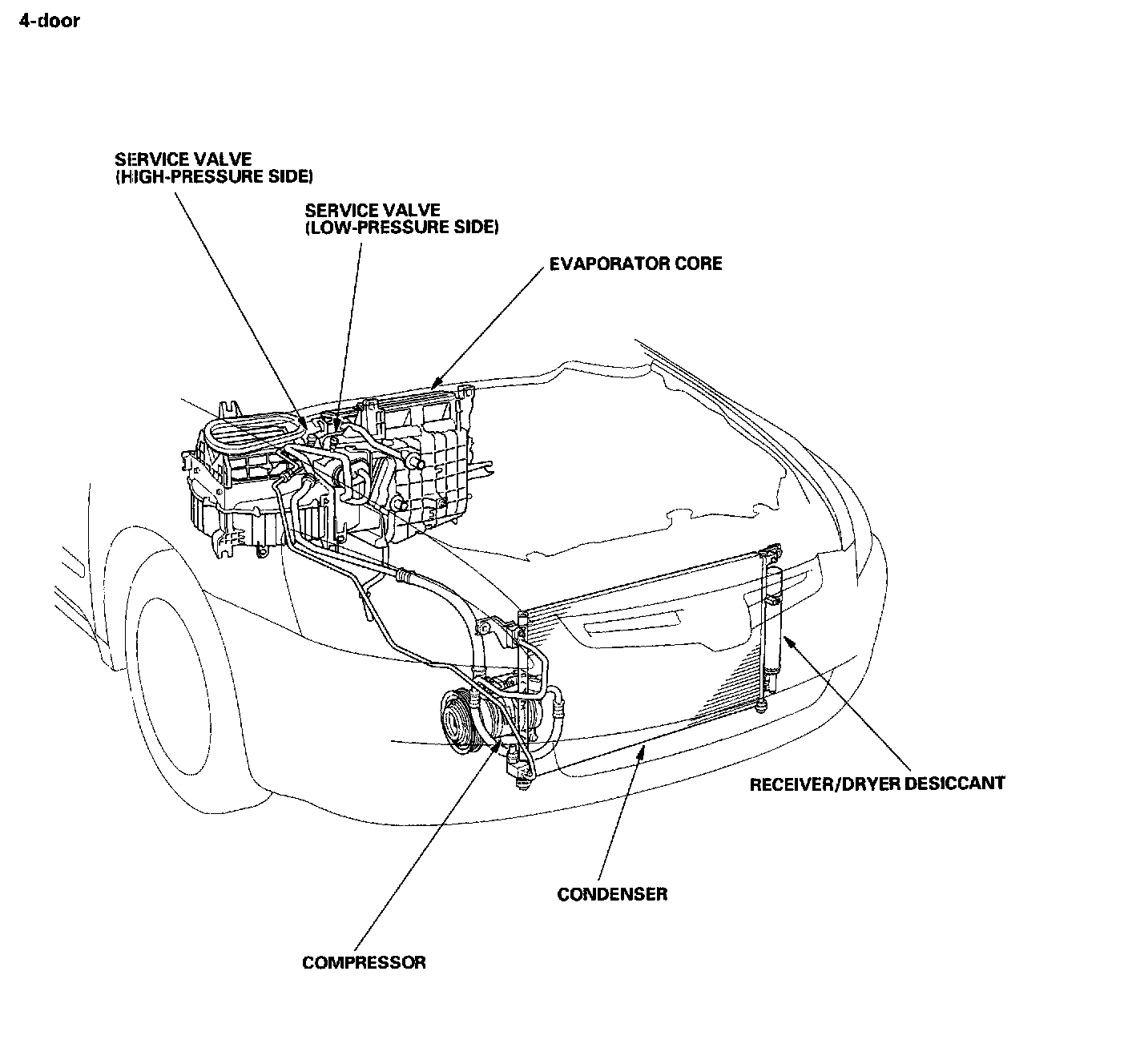

Air Conditioning Component Location Index (4-door):

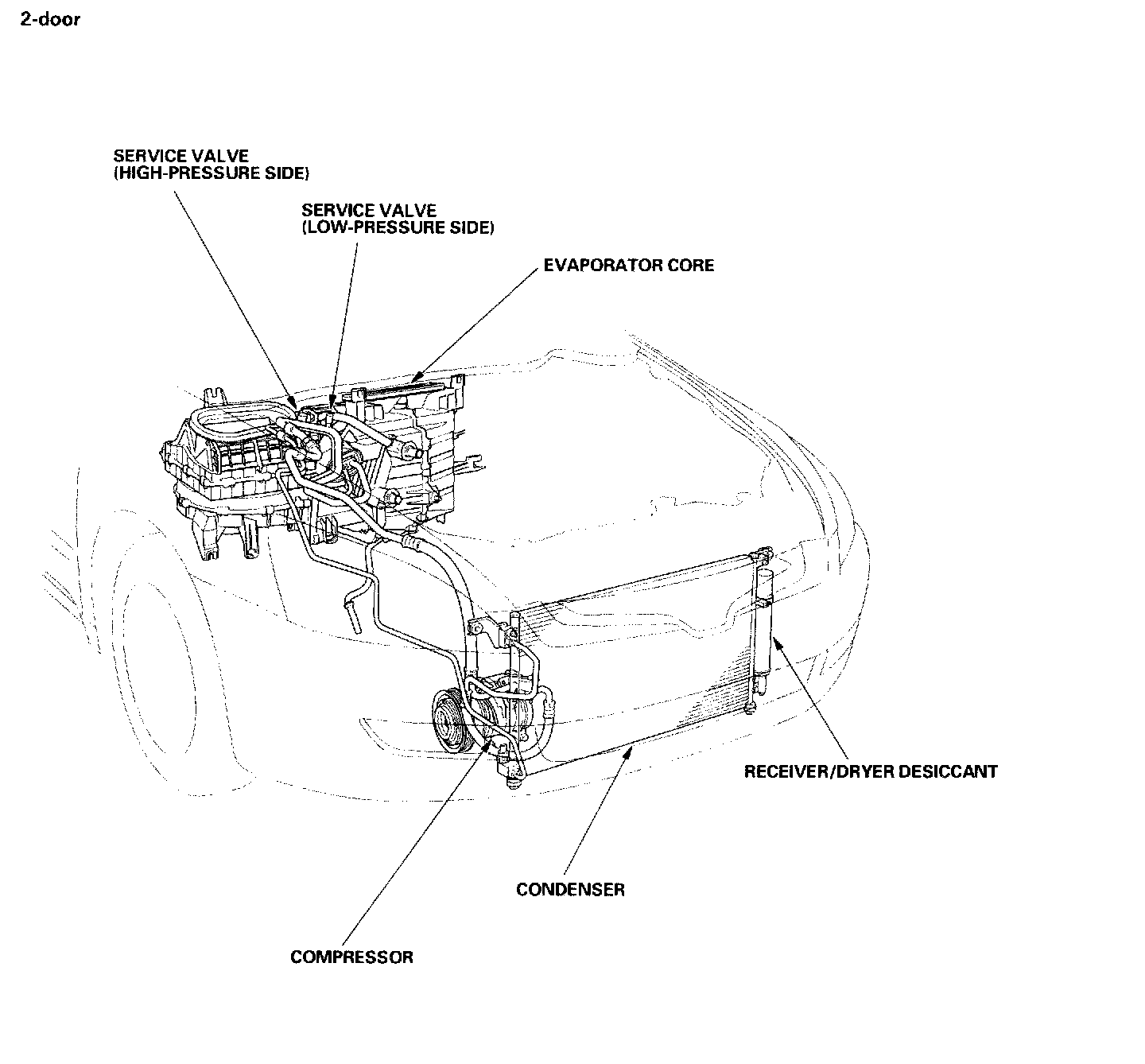

Air Conditioning Component Location Index (2-Door):

Air Conditioning Component Location Index (2-Door):

Air Conditioning Component Location Index (4-Door):

Air Conditioning Component Location Index (2-Door):

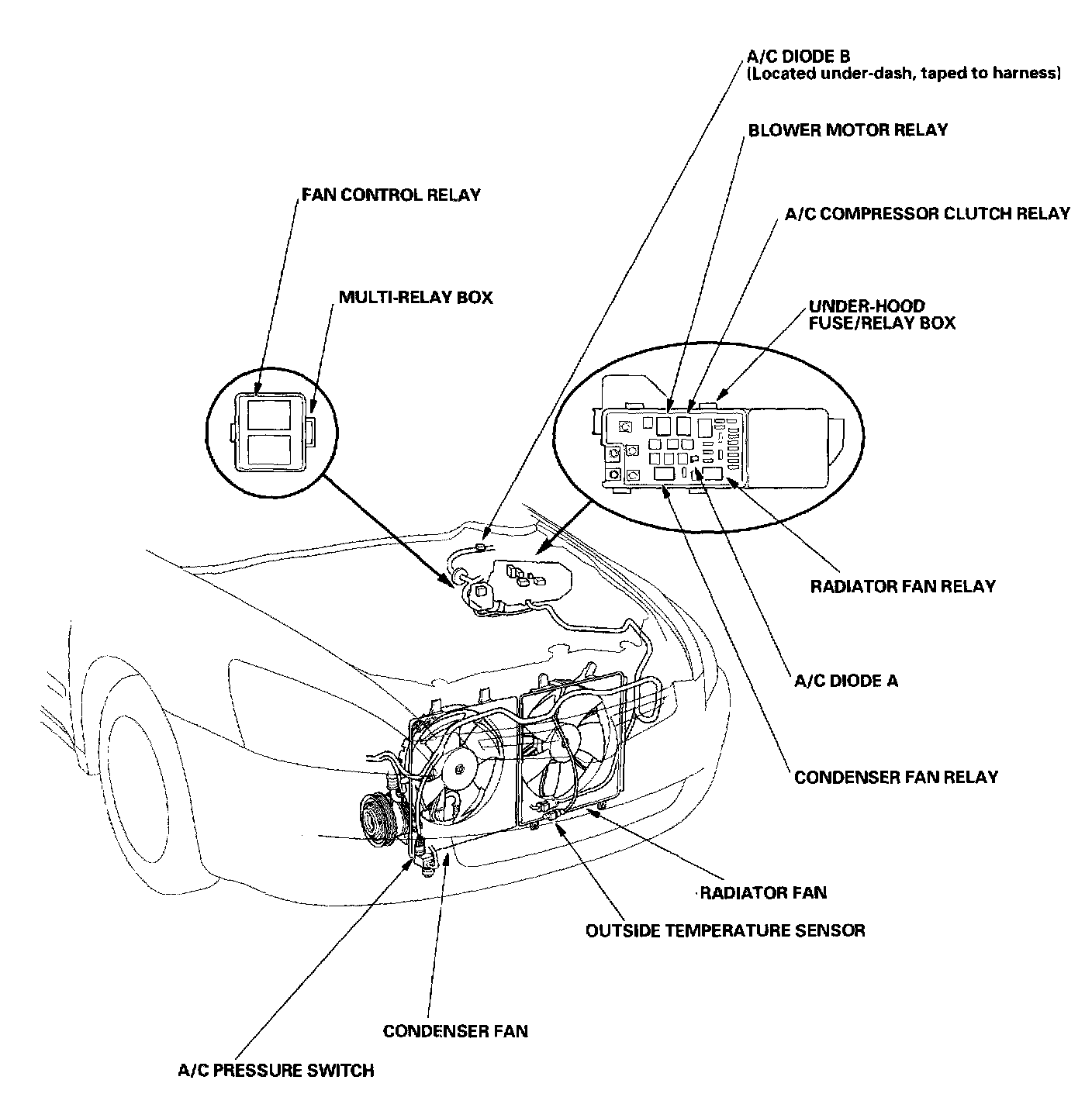

Climate Control Component Location Index:

Climate Control Component Location Index (4-door):

Climate Control Component Location Index (2-door):
