Compressor HVAC: Locations

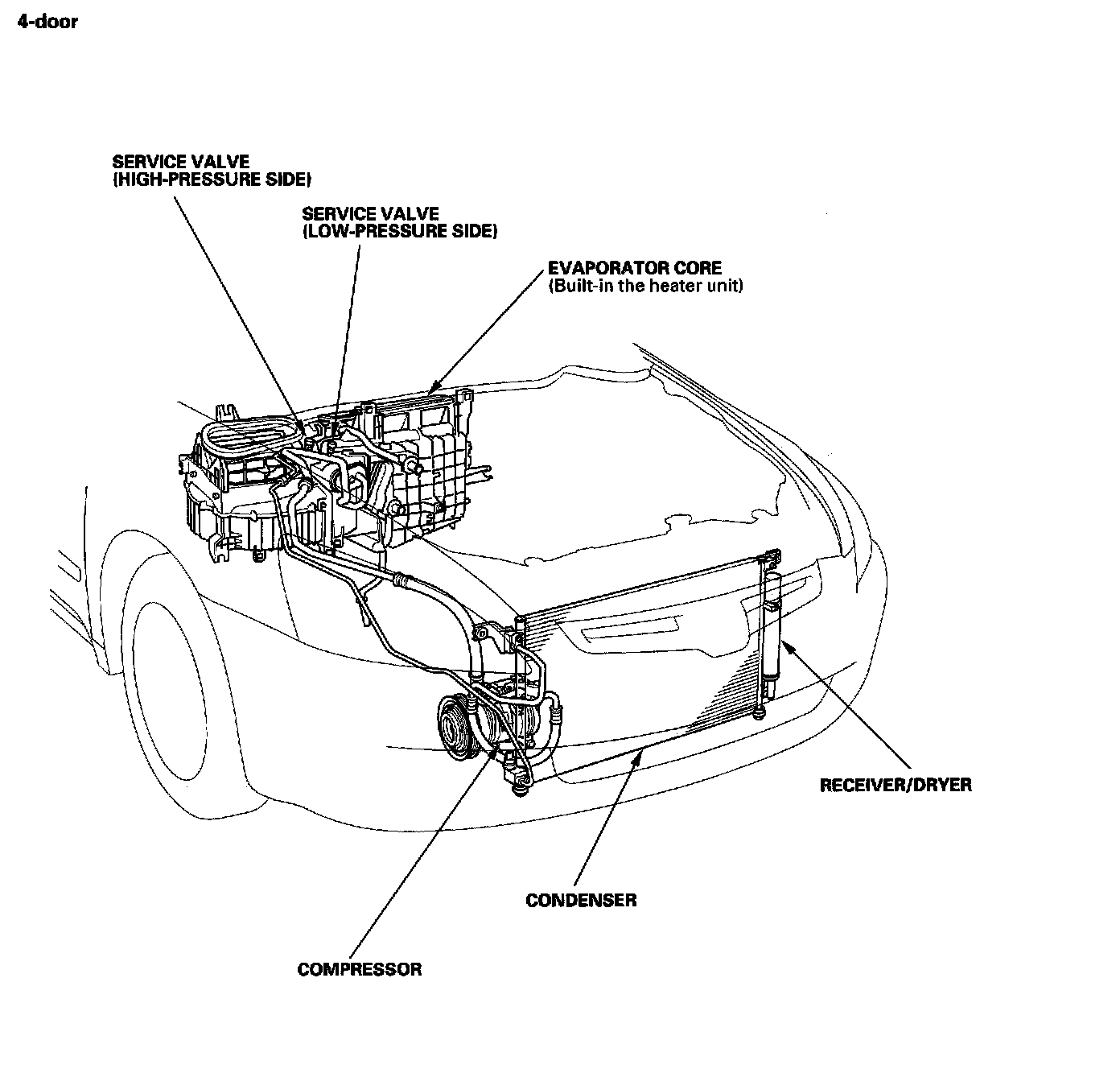

Air Conditioning Component Location Index (4-door):

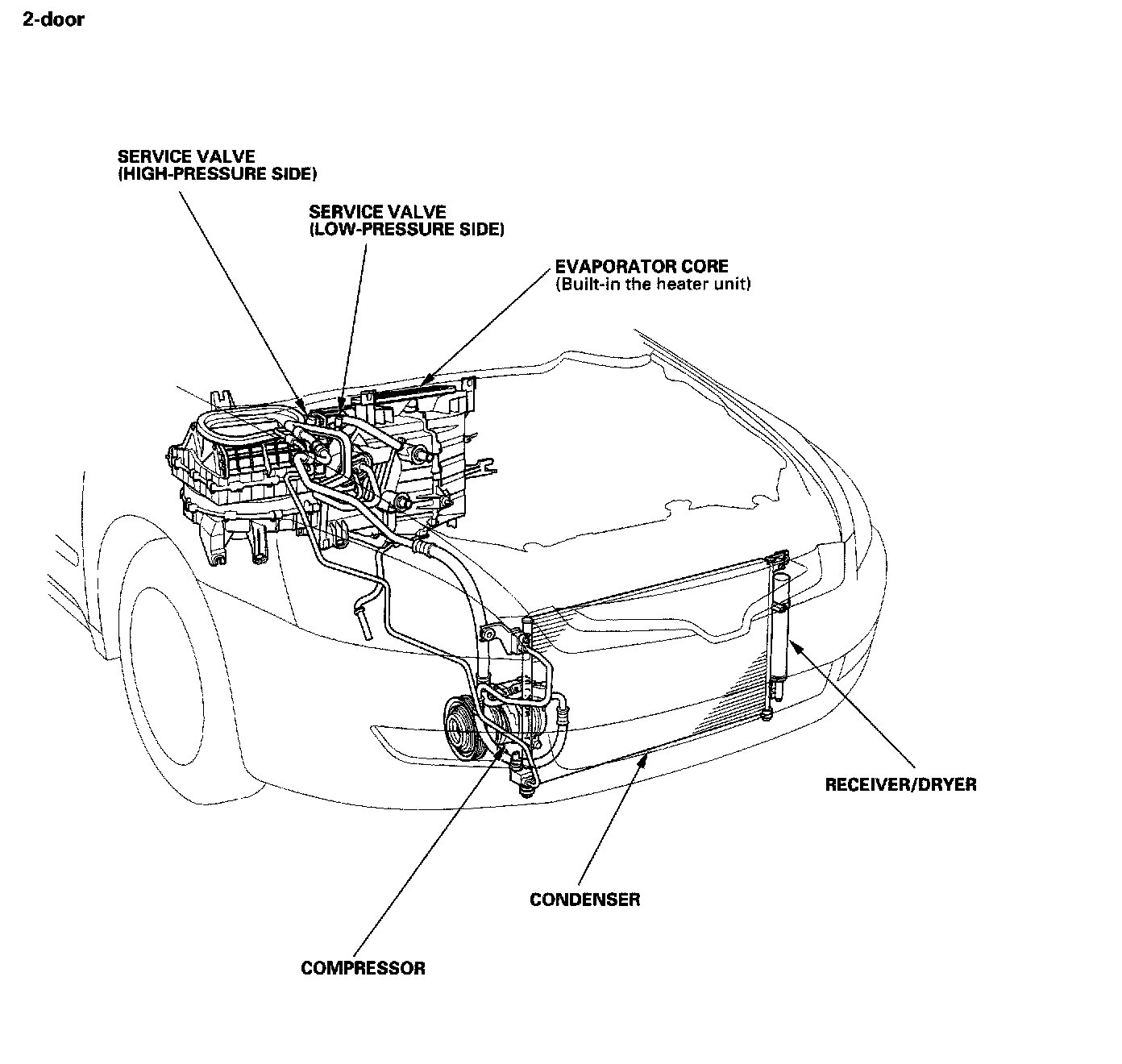

Air Conditioning Component Location Index (2-door):
