PCM A/T Control System
PCM A/T Control System

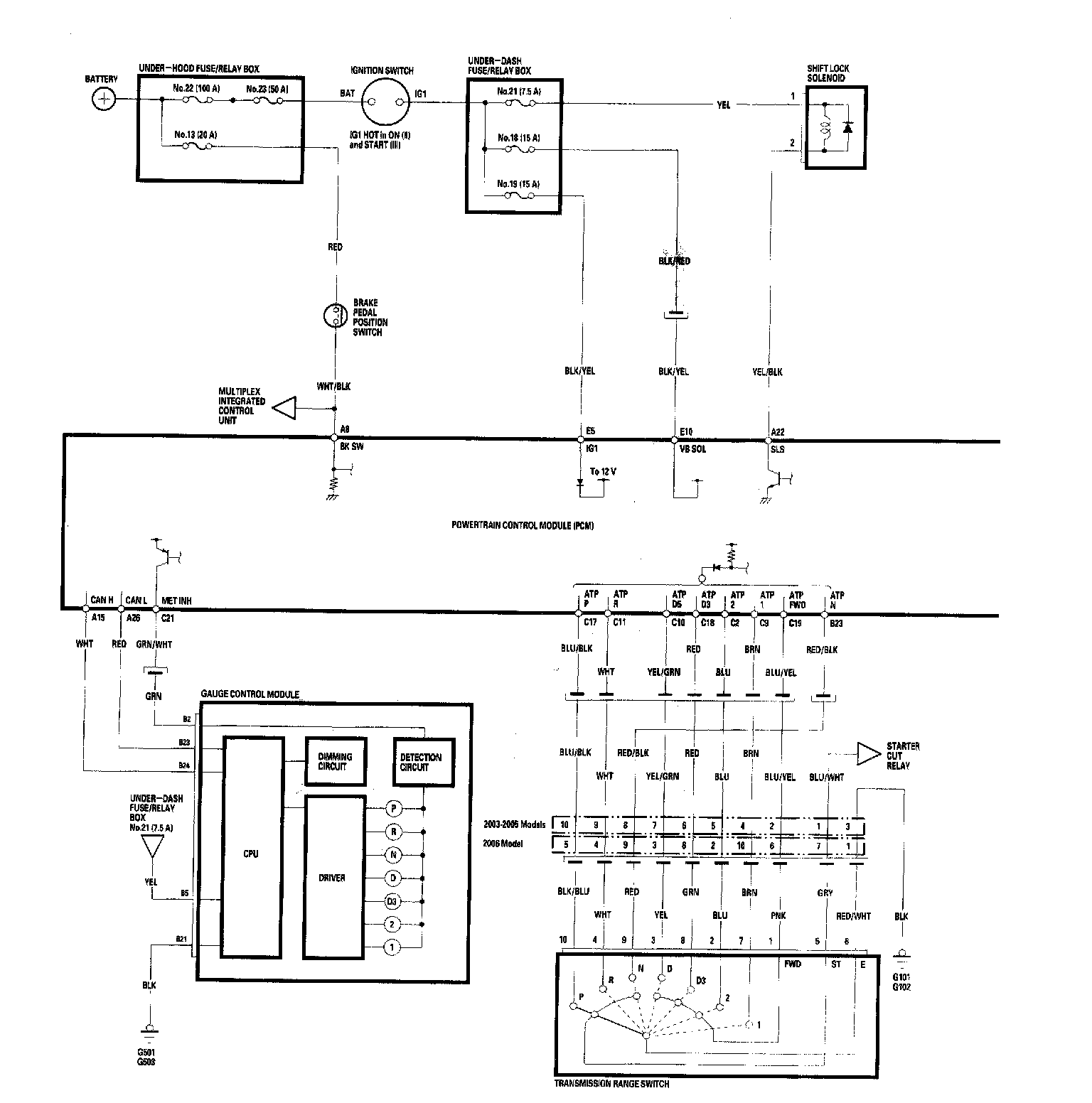

PCM A/T Control System Circuit Diagram:
PCM A/T Control System Circuit Diagram:
