Home >> Honda >> 2003 >> Accord L4-2.4L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Connector Locations >> Under-Dash Fuse/Relay Box

Under-Dash Fuse/Relay Box

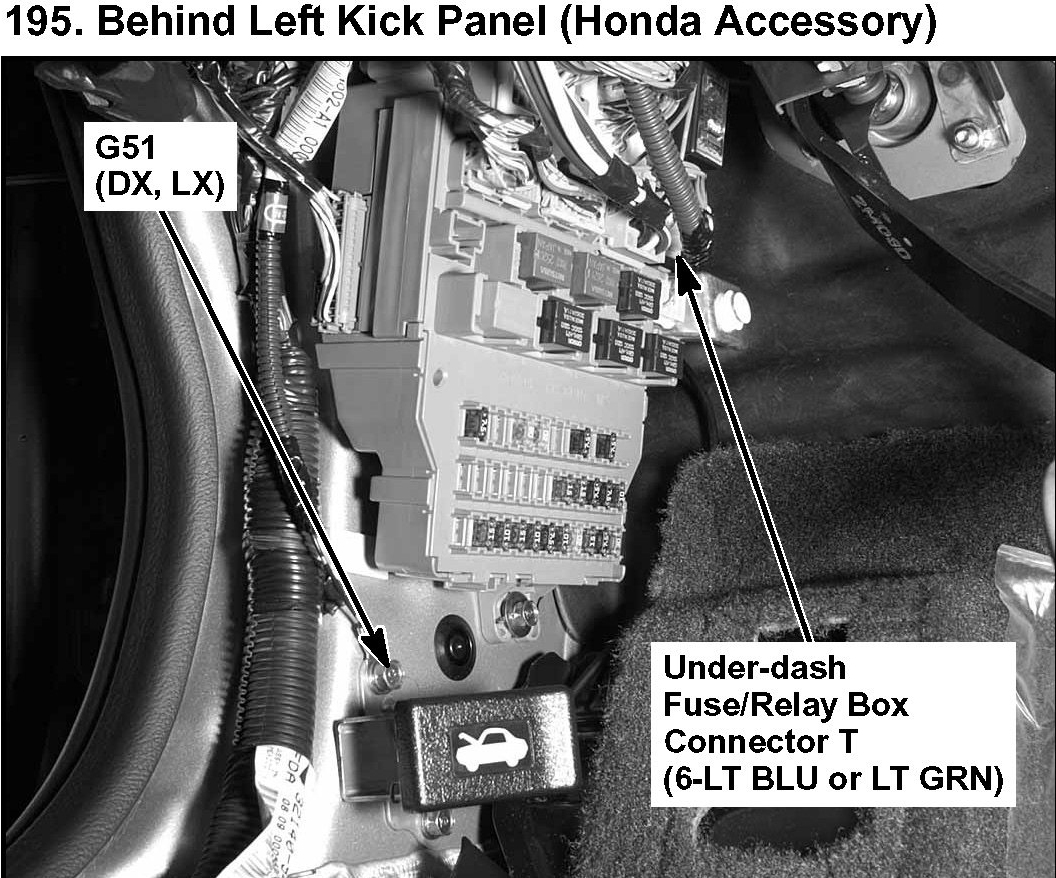

195. Behind Left Kick Panel (Honda Accessory):

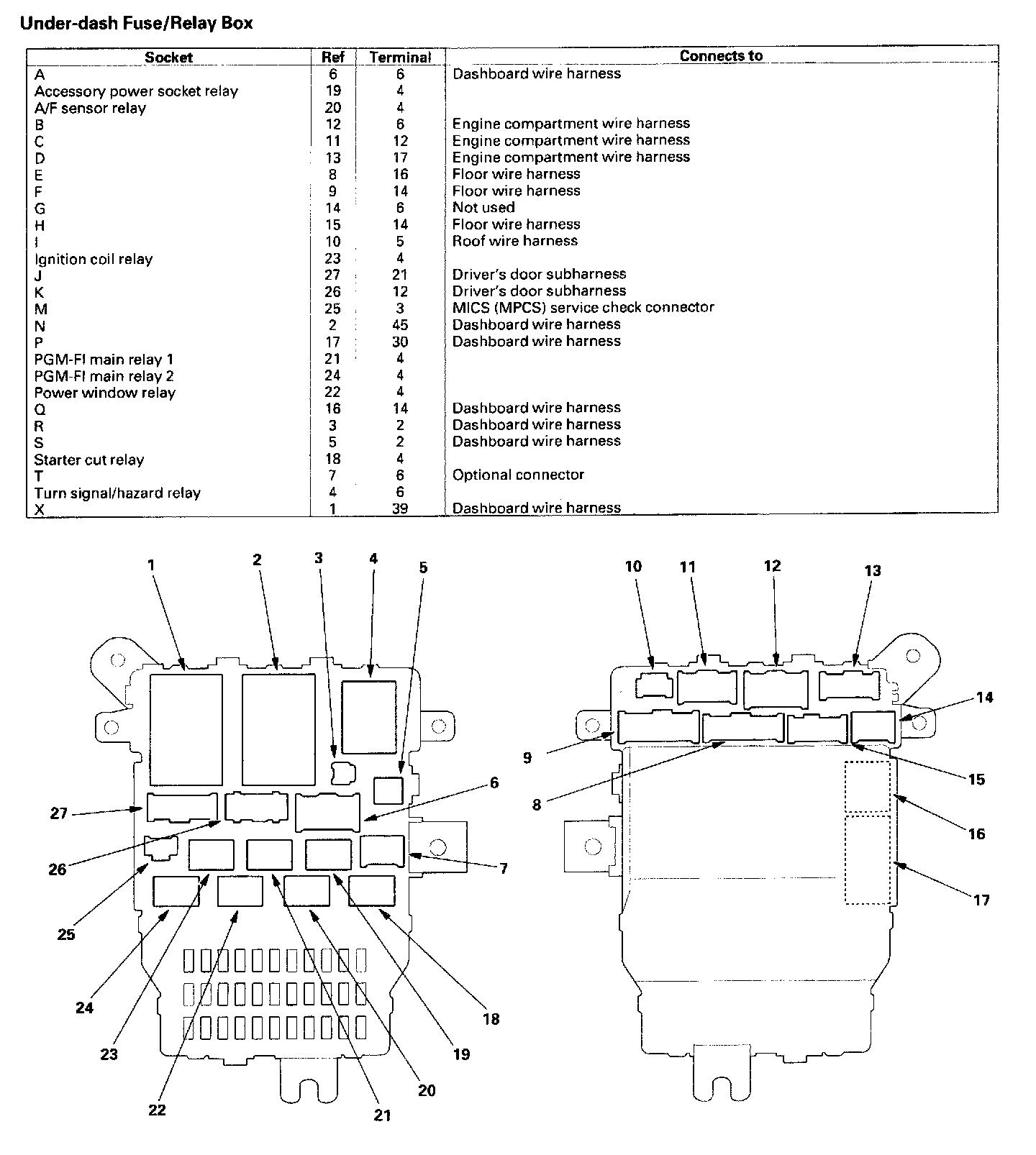

Under-dash Fuse/Relay Box:
