Home >> Honda >> 2003 >> Accord L4-2.4L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Shifter A/T

Shifter A/T

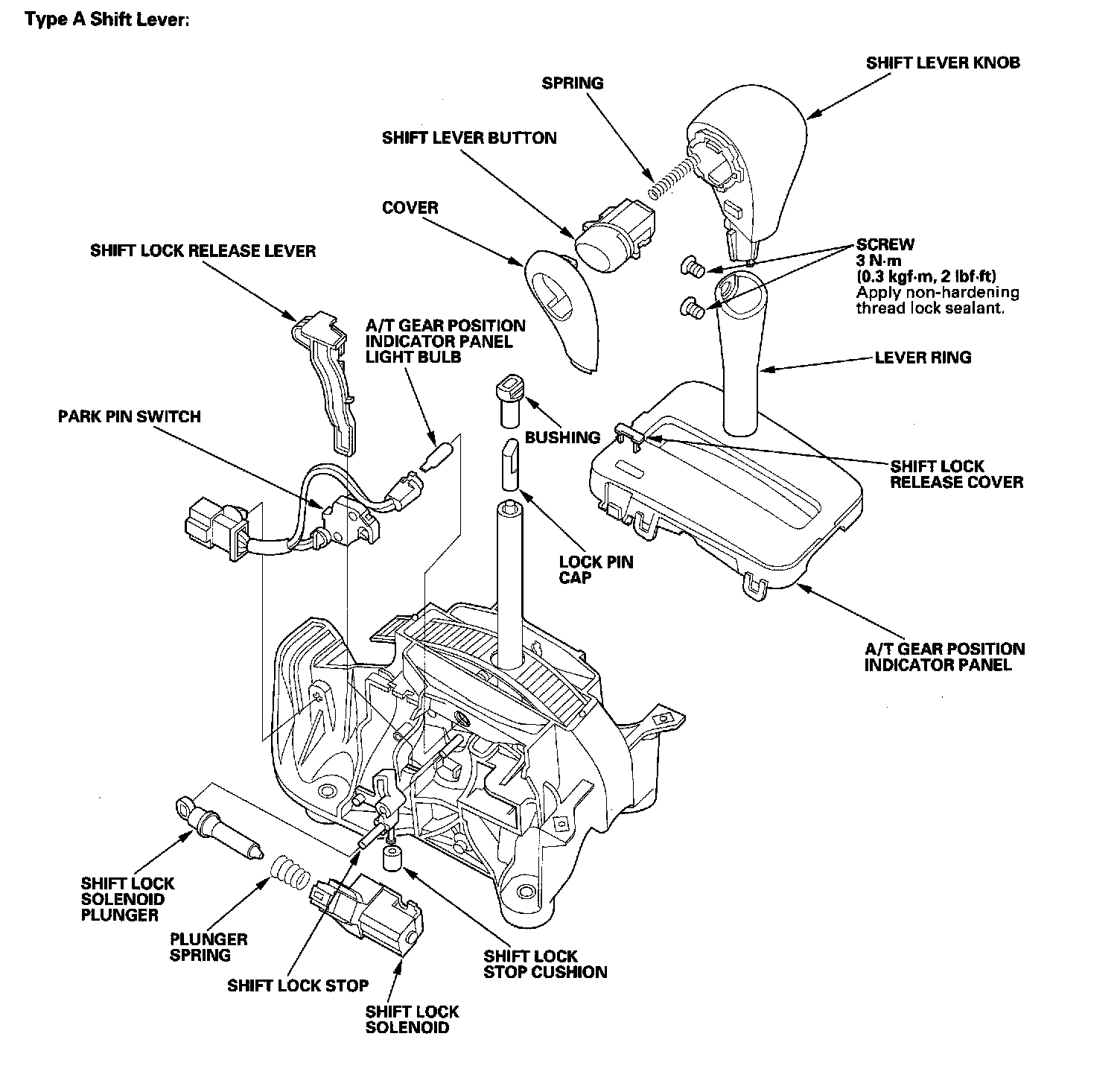

'03-05-Model Type A Shift Lever:

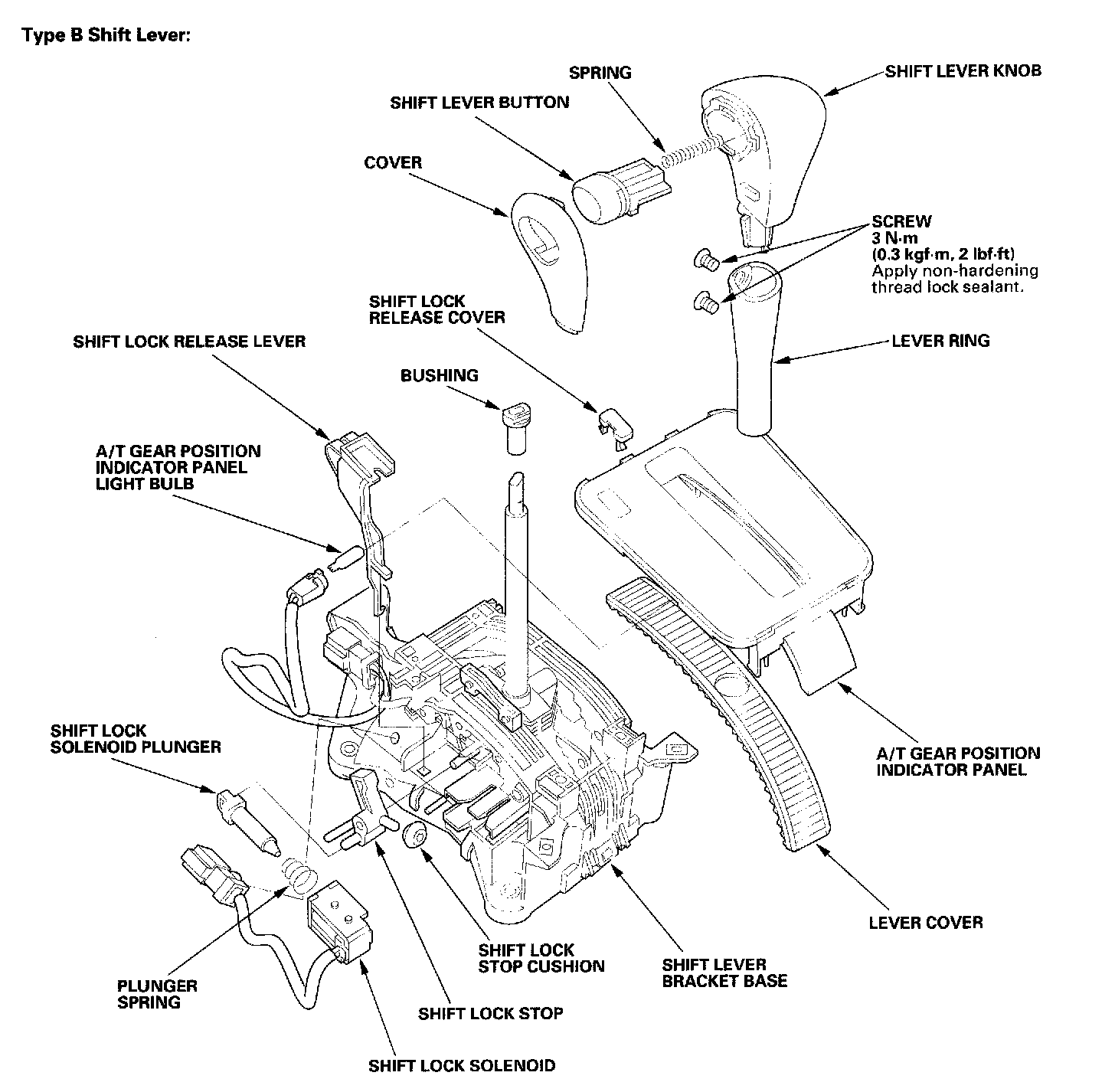

'03-05-Model Type B Shift Lever:
