Information Bus: Diagrams

102. Multiplex Control Inspection Connector:

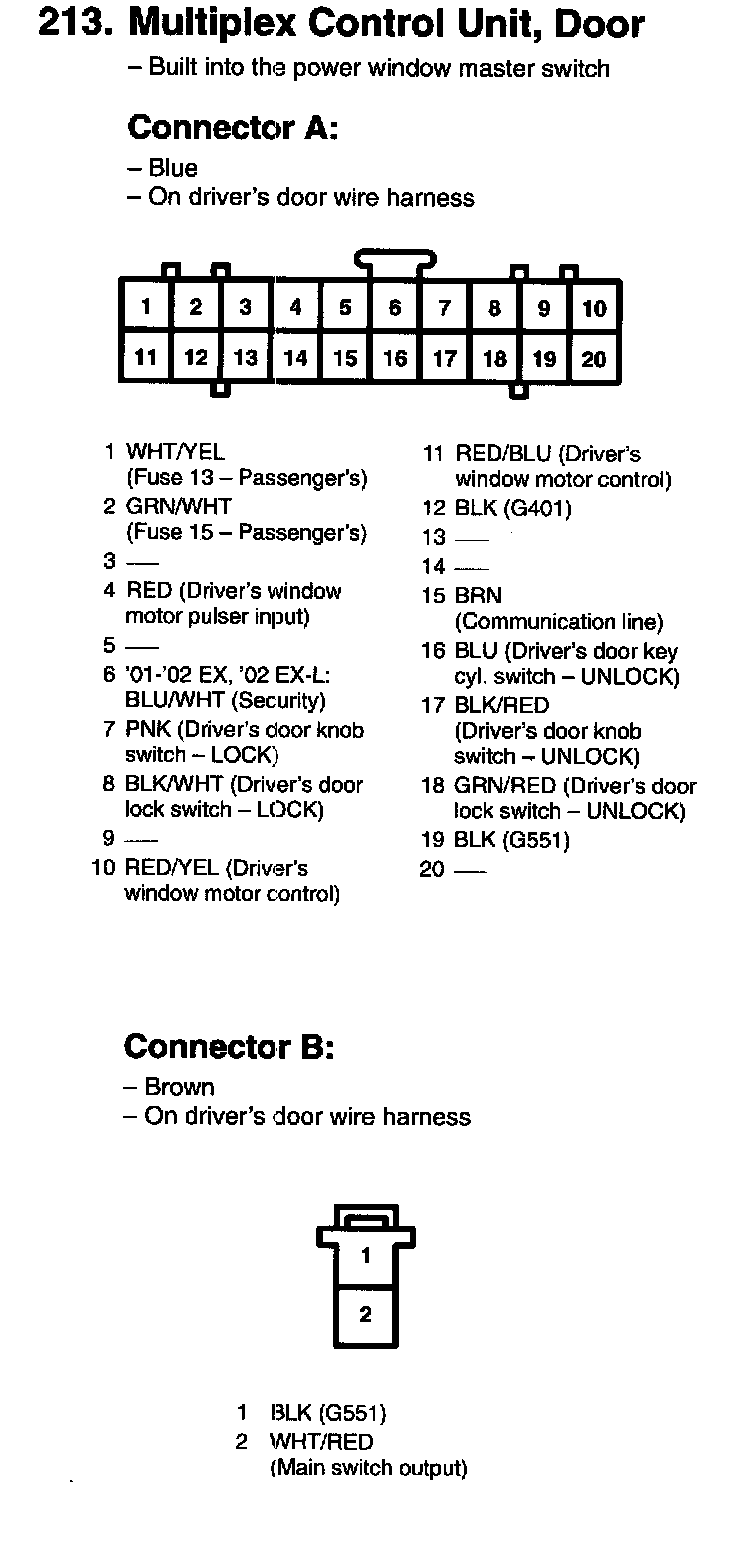

213. Multiplex Control Unit, Door Connector A, B:

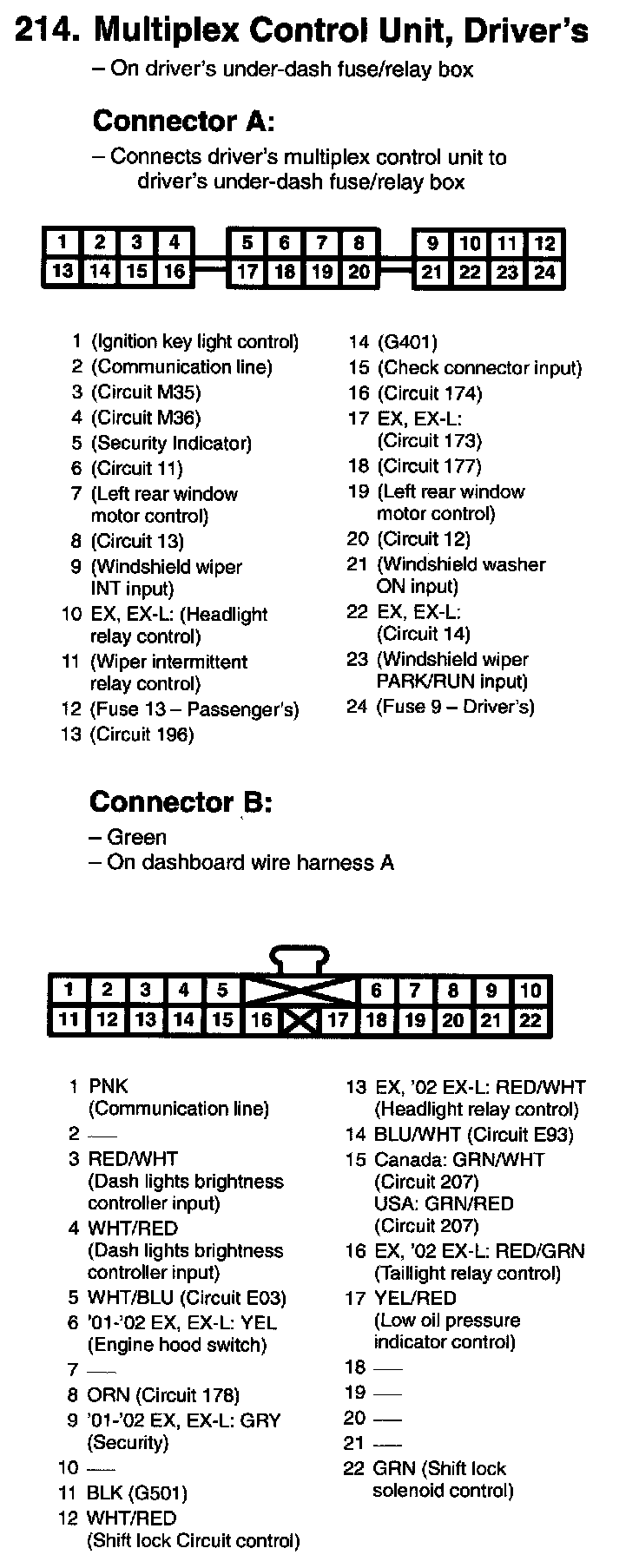

214. Multiplex Control Unit, Driver's Connector A, B:

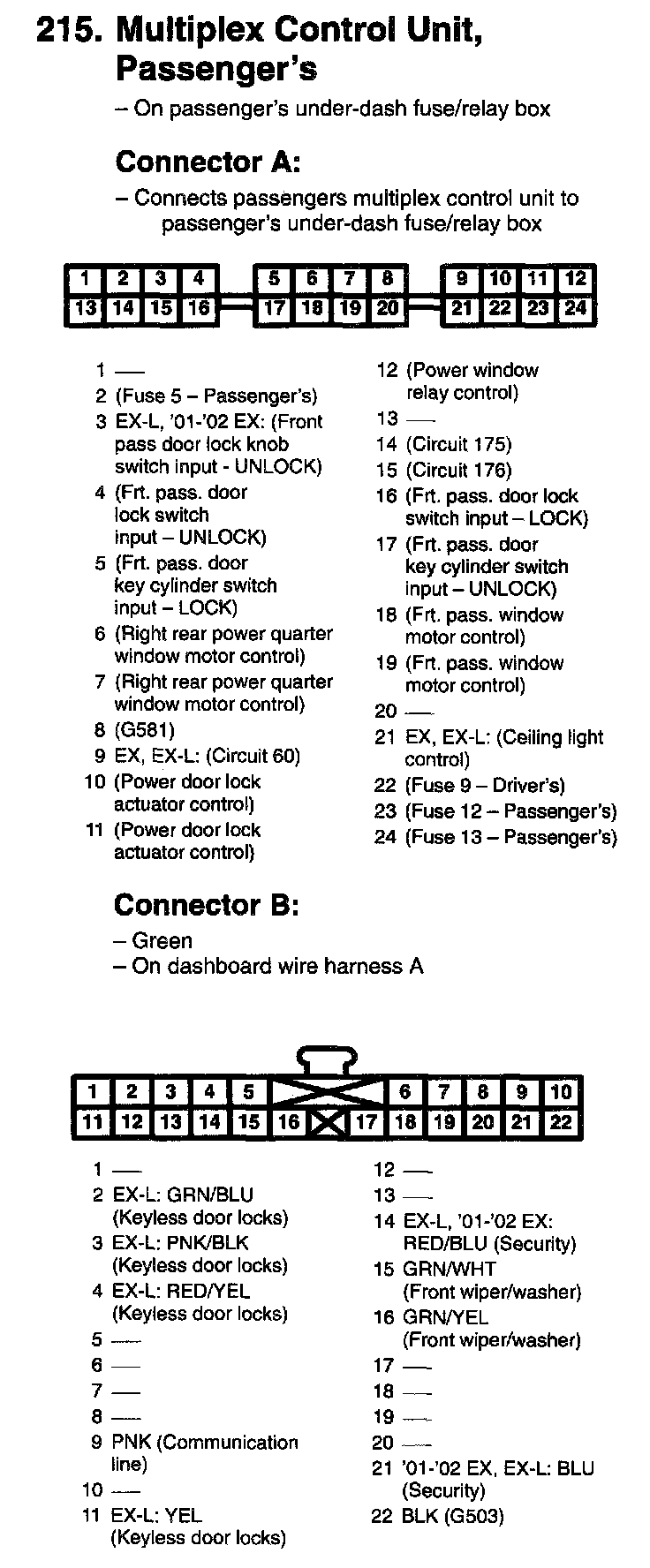

215. Multiplex Control Unit, Passenger's Connector A, B:
