Home >> Honda >> 2002 >> Insight Standard >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Shift Interlock Systems >> Removal & Installation >> Front Console >> Removal & Installation

Removal & Installation

  1. Remove screws and clips. Remove front console. See Fig 1.
  2. Install the console in the reverse order of removal, and replace any damaged clips.

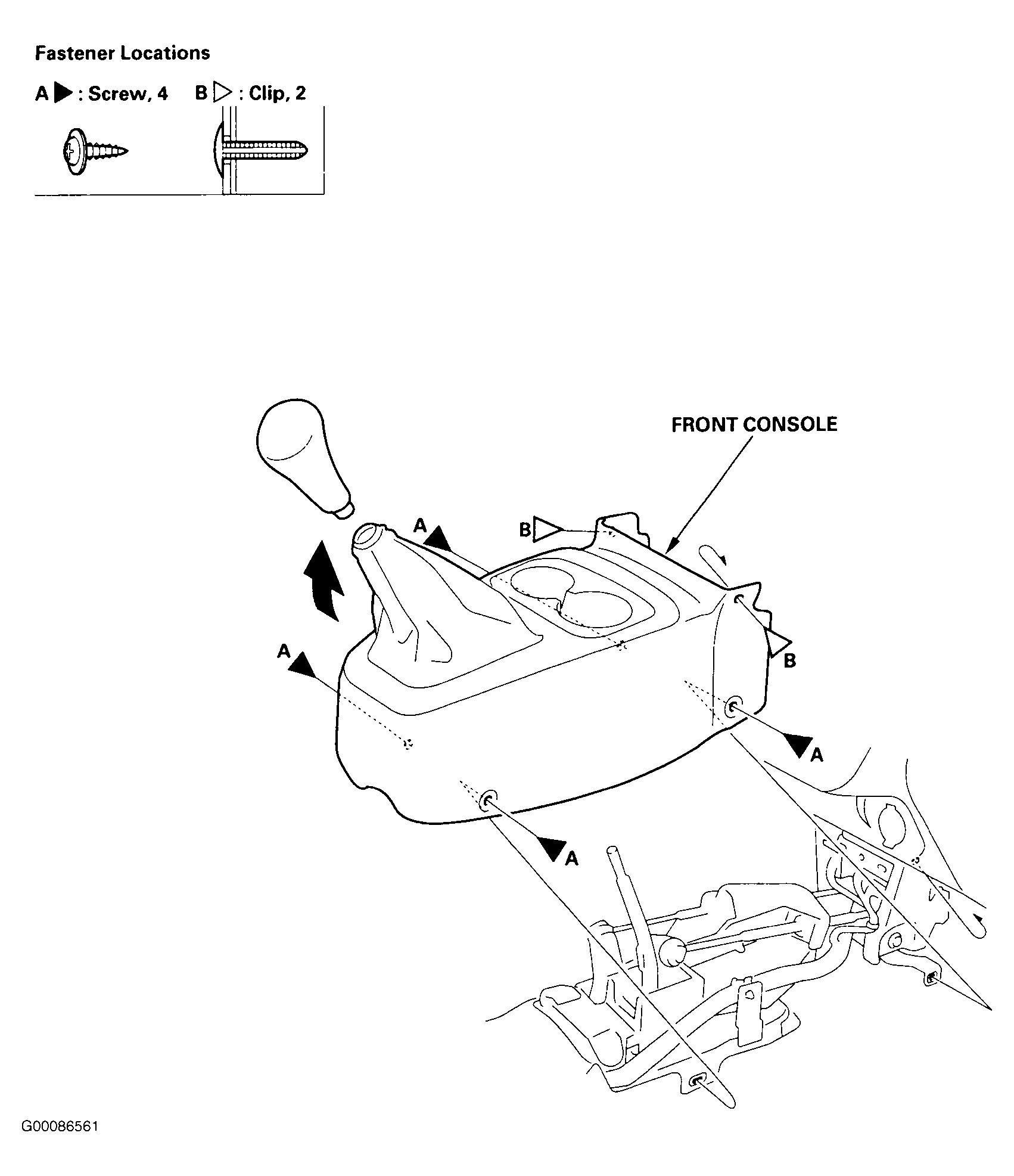

Fig 1: Removing Front Console
G00086561Courtesy of AMERICAN HONDA MOTOR CO., INC.
