Bench Testing: Stator

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2004 Honda Odyssey, 2003 Honda Odyssey, 2002 Honda Odyssey, 2001 Honda Odyssey, and 2000 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check that there is continuity between each pair of leads. If there is continuity, go to next step. If there is no continuity, replace the alternator.
  2. Check for no continuity between each lead and the coil core. If there is no continuity, go to next step. If there is continuity, replace the alternator.
  3. Reassemble the alternator in the reverse order of disassembly. Be careful not to get any grease or oil on the slip rings during reassembly.

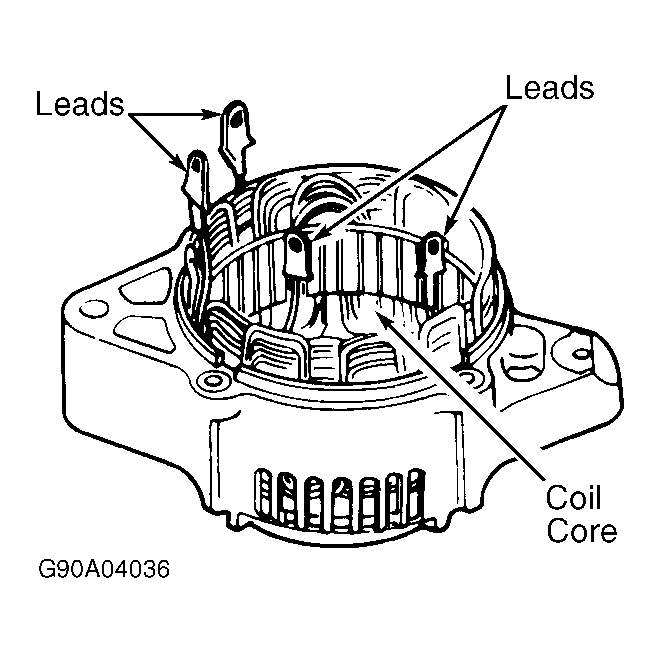

Fig 1: Testing Stator Assembly
G90A04036Courtesy of AMERICAN HONDA MOTOR CO., INC.
