Electronic Controls Location

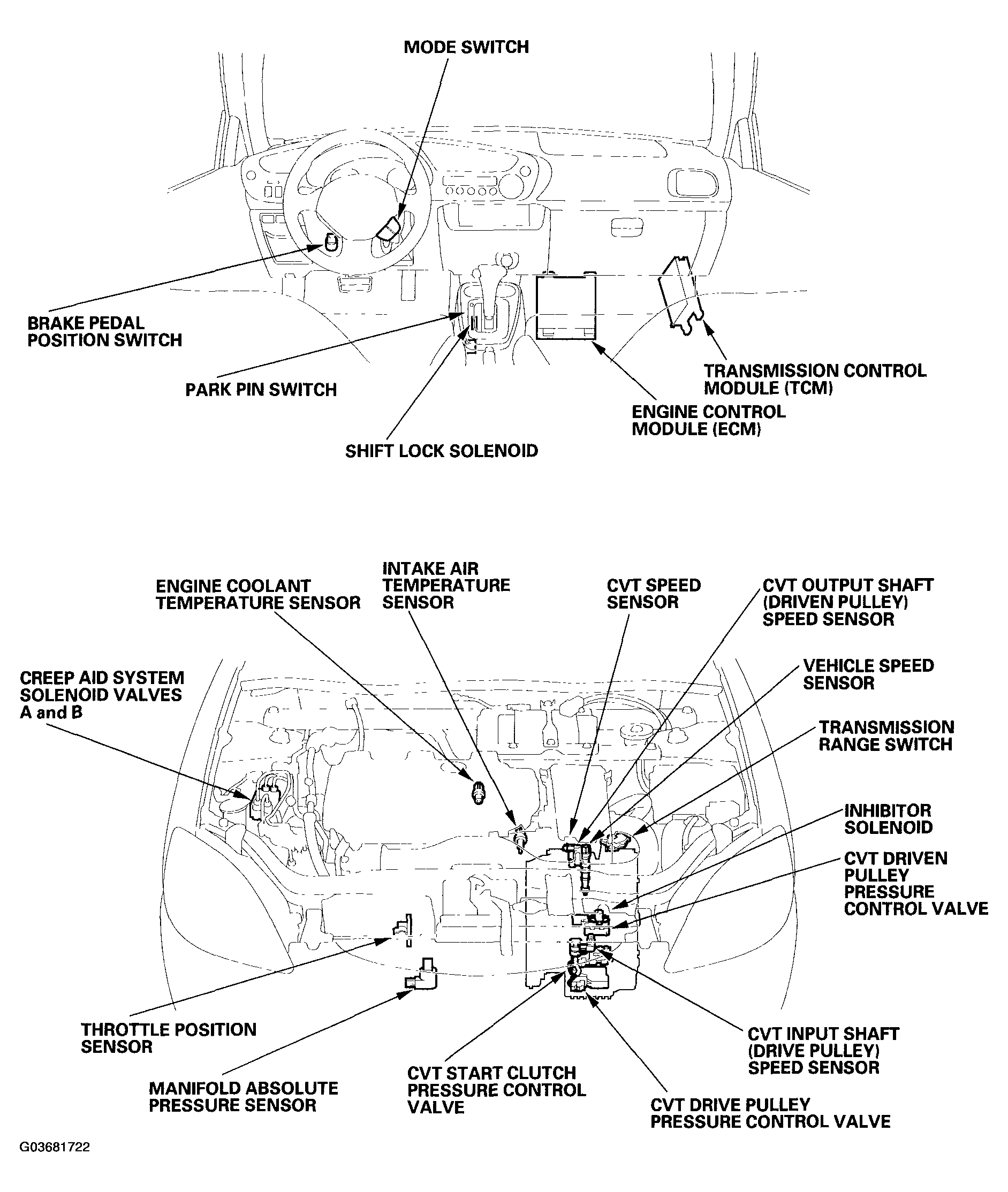

Fig 1: Identifying Electronic Controls Location

G03681722

Courtesy of AMERICAN HONDA MOTOR CO., INC.
