Connecting Rod Journal Code Location

  1. The connecting rod journal codes are stamped on the No. 1 web.

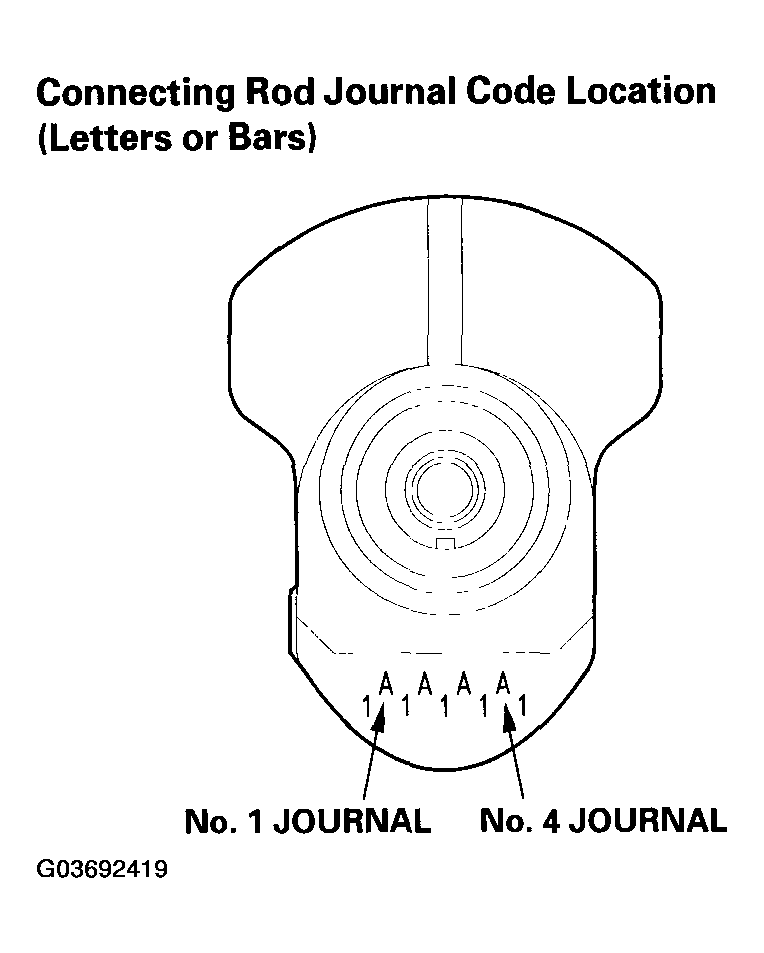

    Fig 1: Identifying Connecting Rod Journal Codes
    G03692419Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Use the big end bore codes and rod journal codes to select appropriate replacement bearings from the following table.
    NOTE: Color code is on the edge of the bearing.

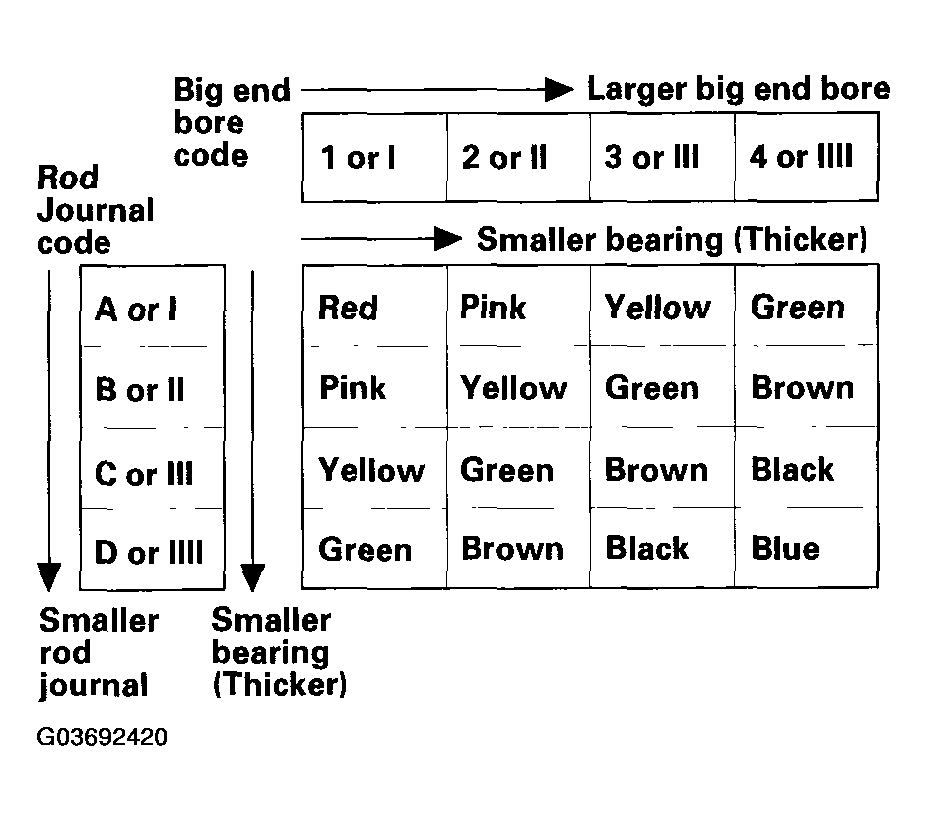

    Fig 2: Bearing Color Codes Chart
    G03692420Courtesy of AMERICAN HONDA MOTOR CO., INC.
