Home >> Honda >> 2000 >> Insight L3-1.0L Hybrid >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Relay >> Locations

Power Window Relay: Locations

Power Window:

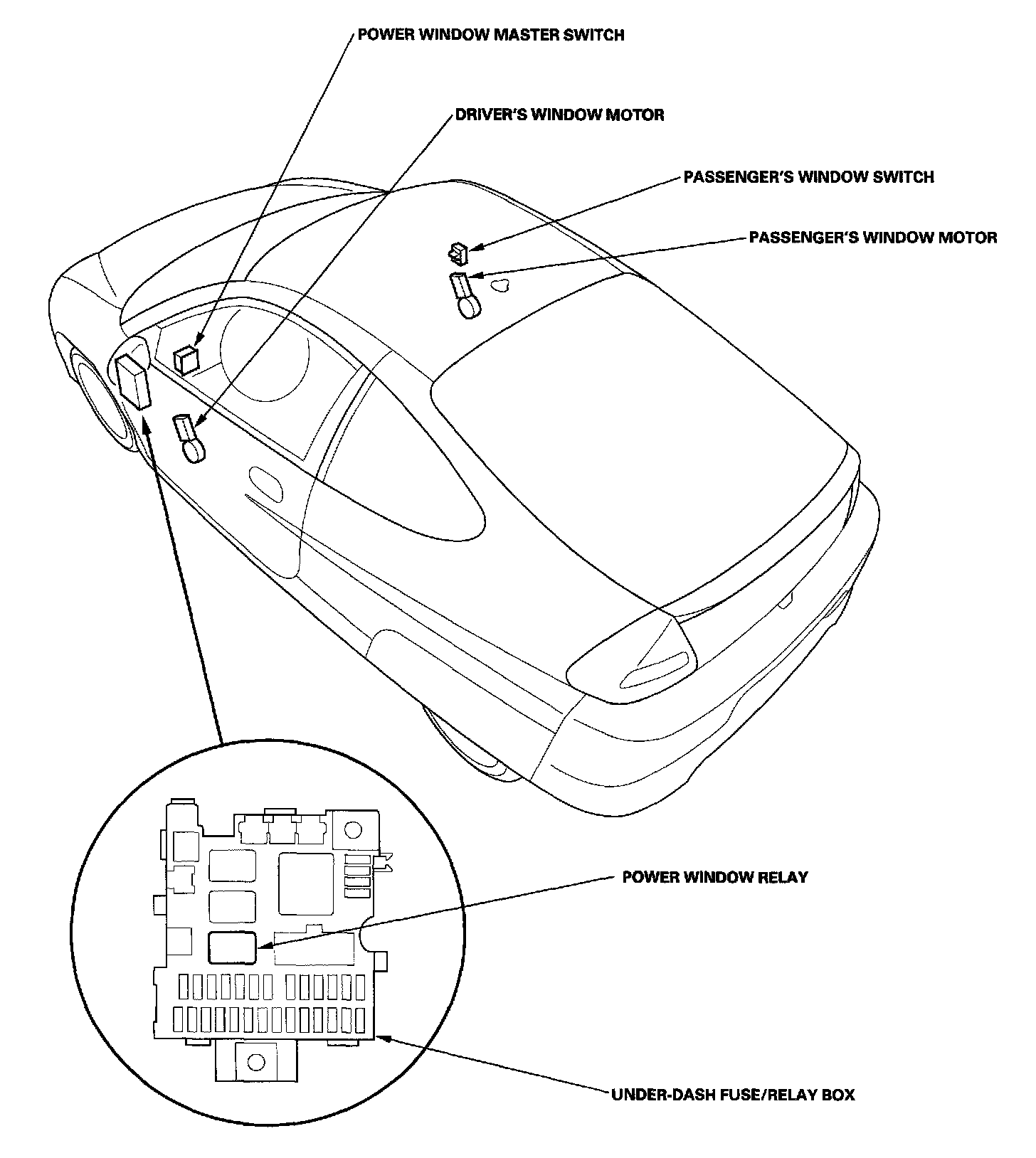

Relay And Control Unit Locations - Dashboard:



40. Upper Left Kick Panel Area:
