Home >> Honda >> 2000 >> Insight L3-1.0L Hybrid >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> Alarm Module, (Vehicle Antitheft)

Alarm Module, (Vehicle Antitheft)

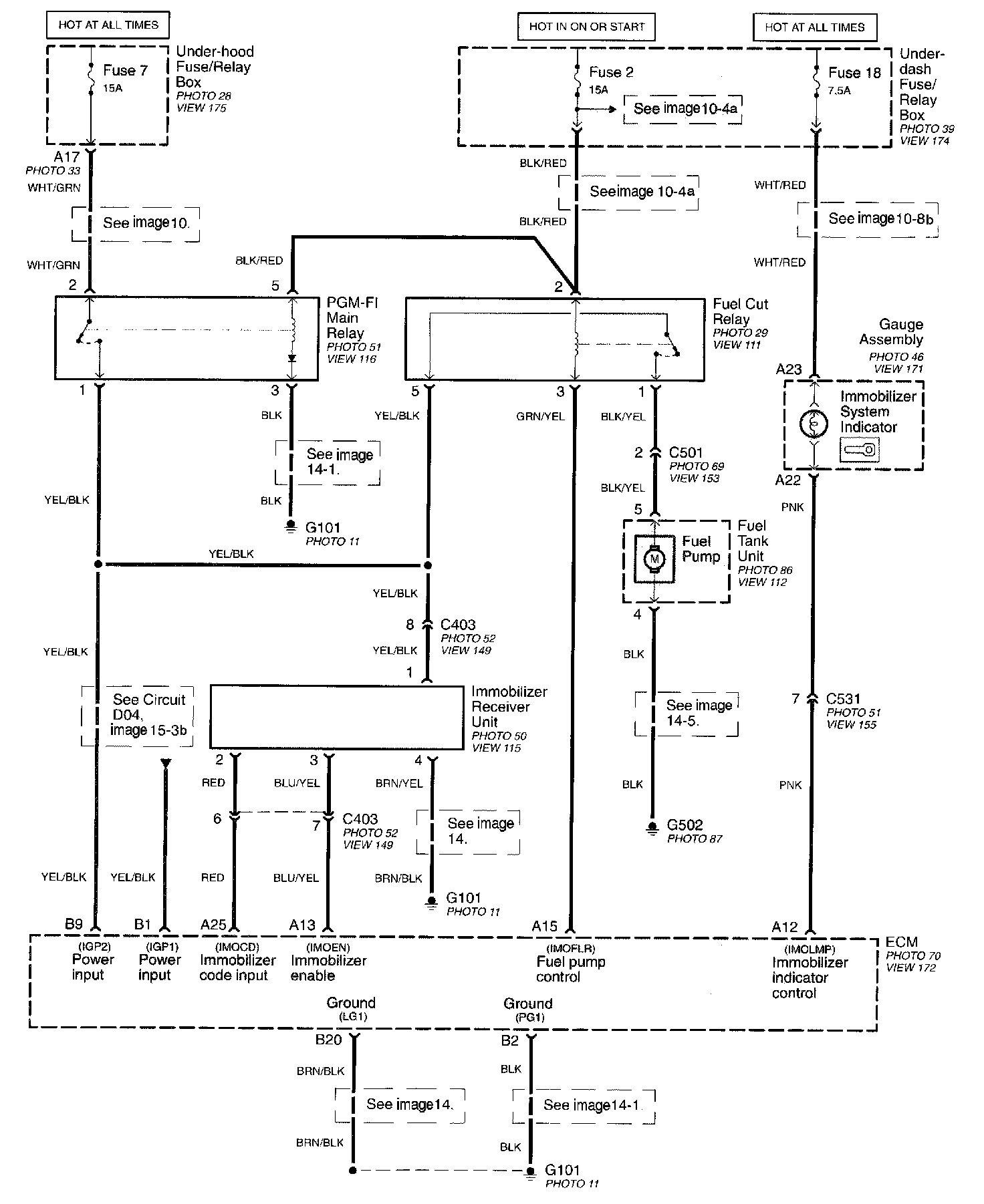

Immobilizer System Image 132:
