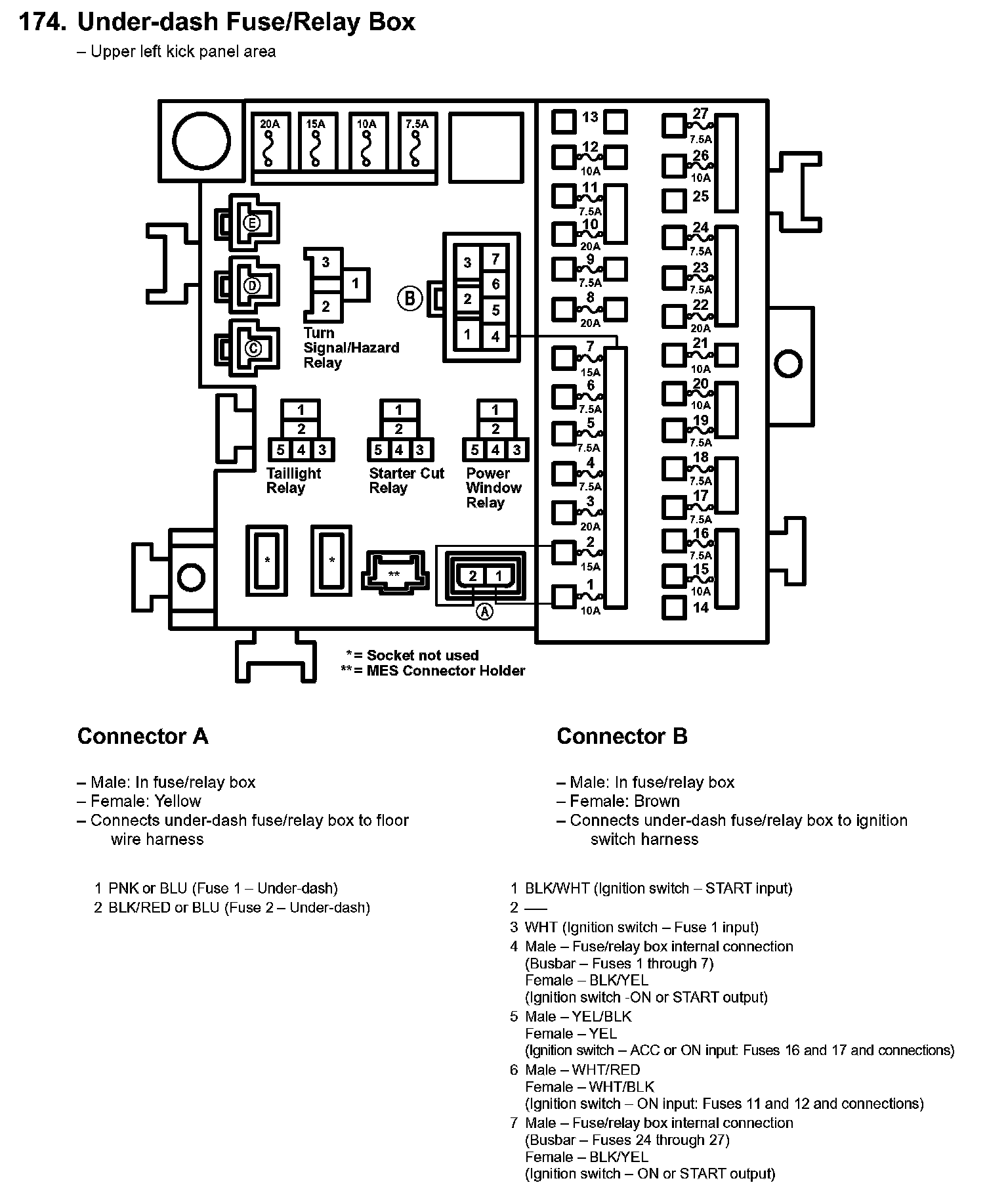

174. Under-dash Fuse/Relay Box Part 1:

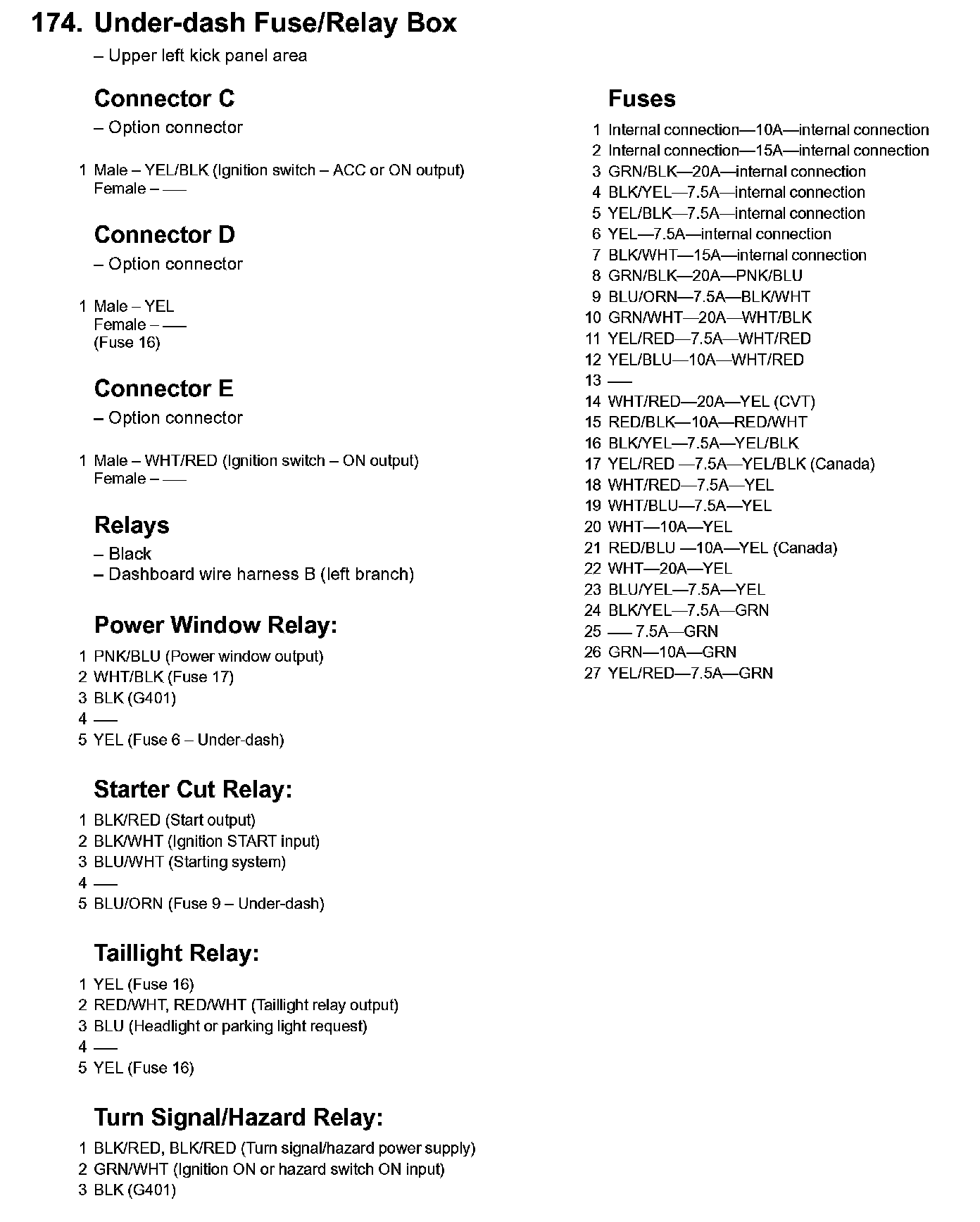

174. Under-dash Fuse/Relay Box Part 2:

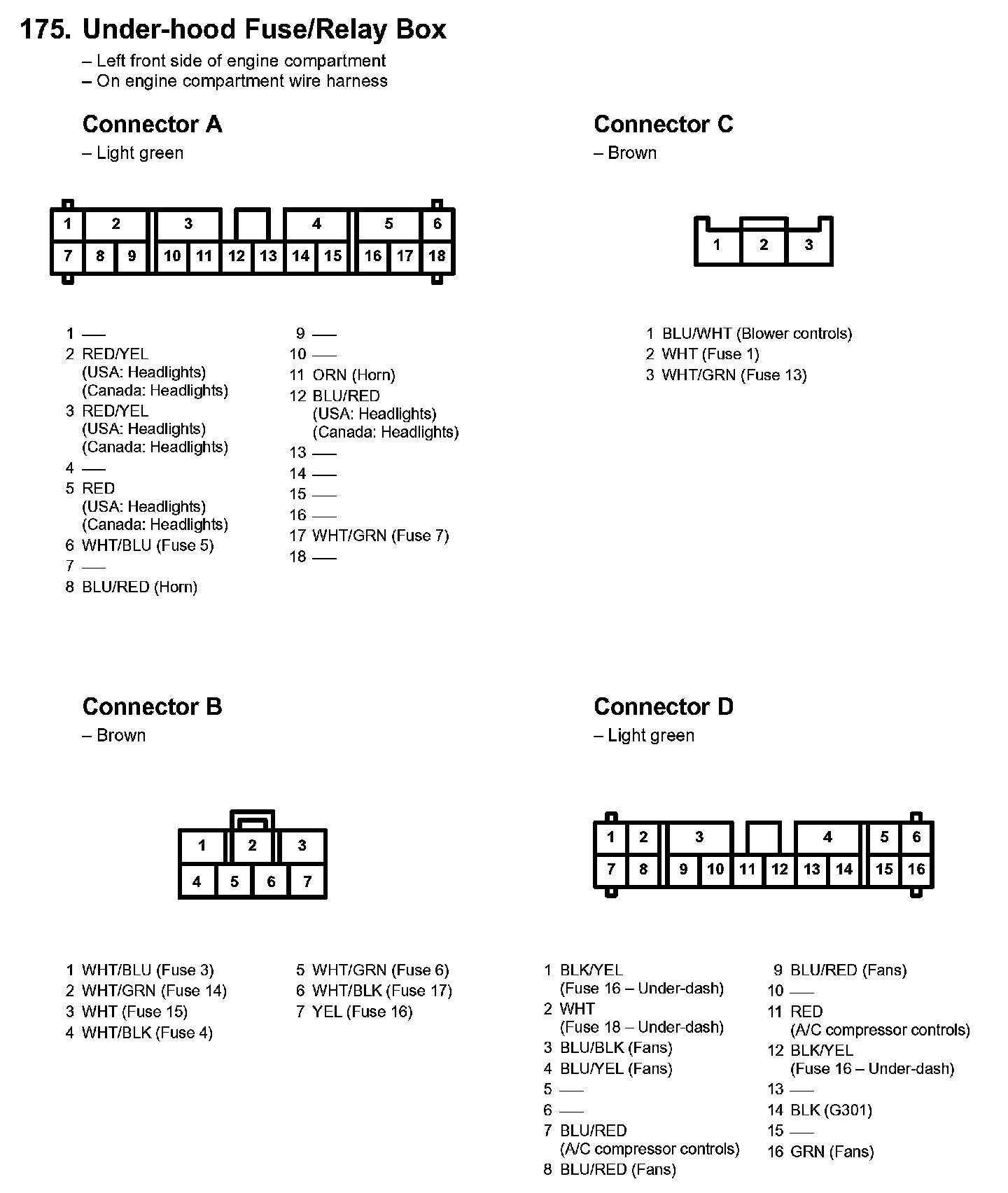

175. Under-hood Fuse/Relay Box:
