Home >> Honda >> 1996 >> Del Sol L4-1590cc 1600 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Voltage Signal >> Testing and Inspection

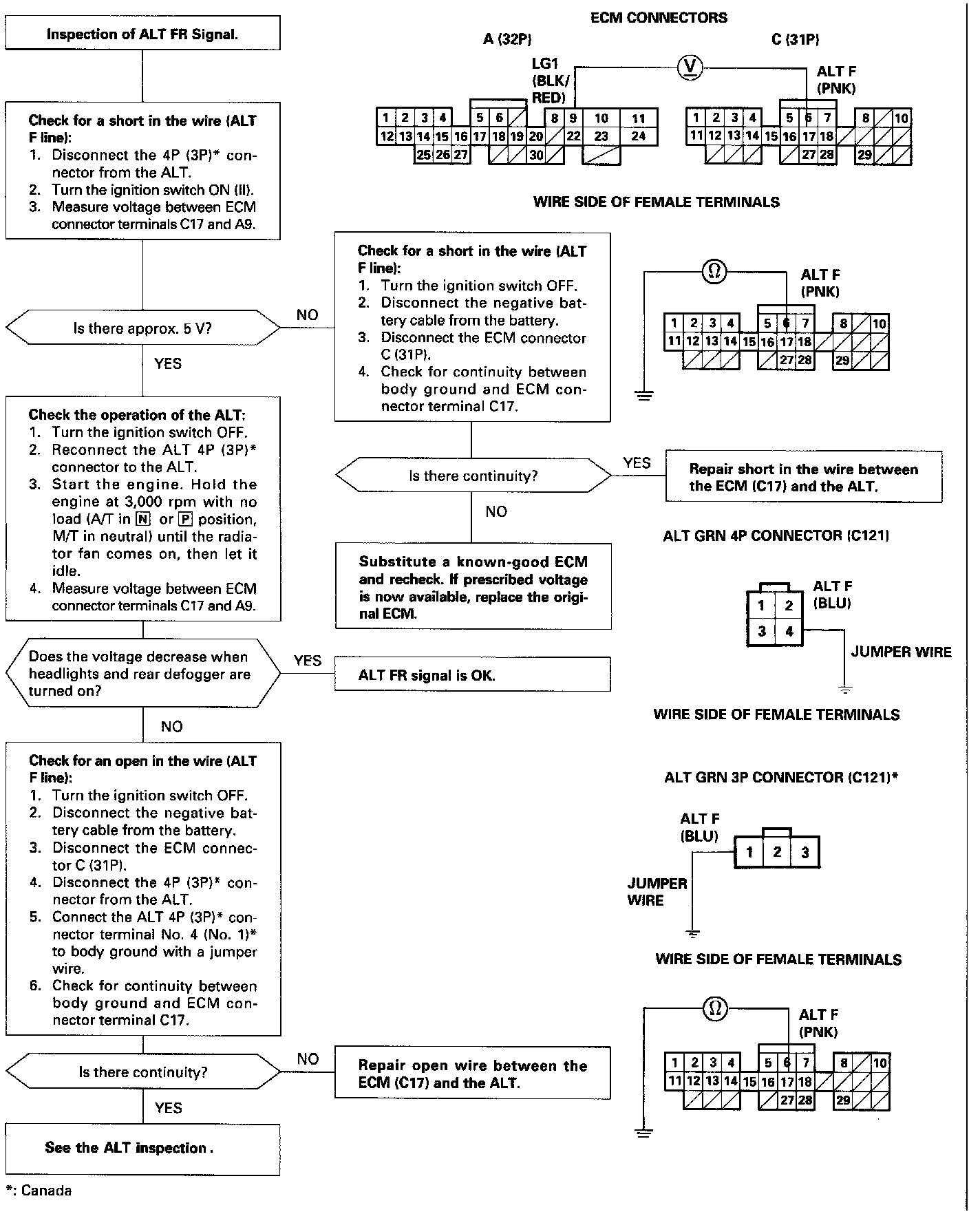

Voltage Signal: Testing and Inspection




This signals the ECM when the Alternator (ALT) is charging.
