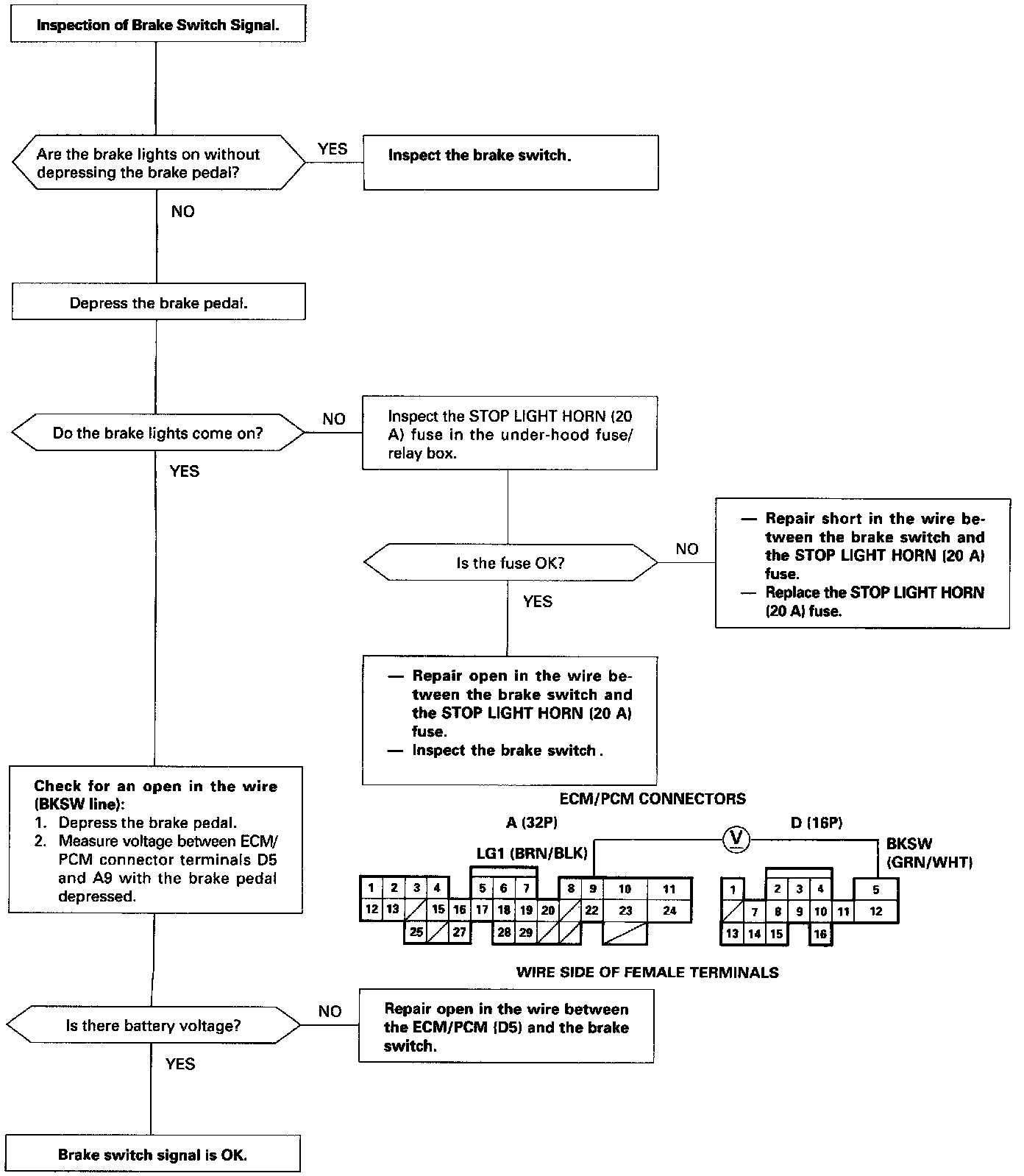

Brake Signal: Testing and Inspection




This signals the ECM/PCM when the brake pedal is depressed.
