Symbol Identification

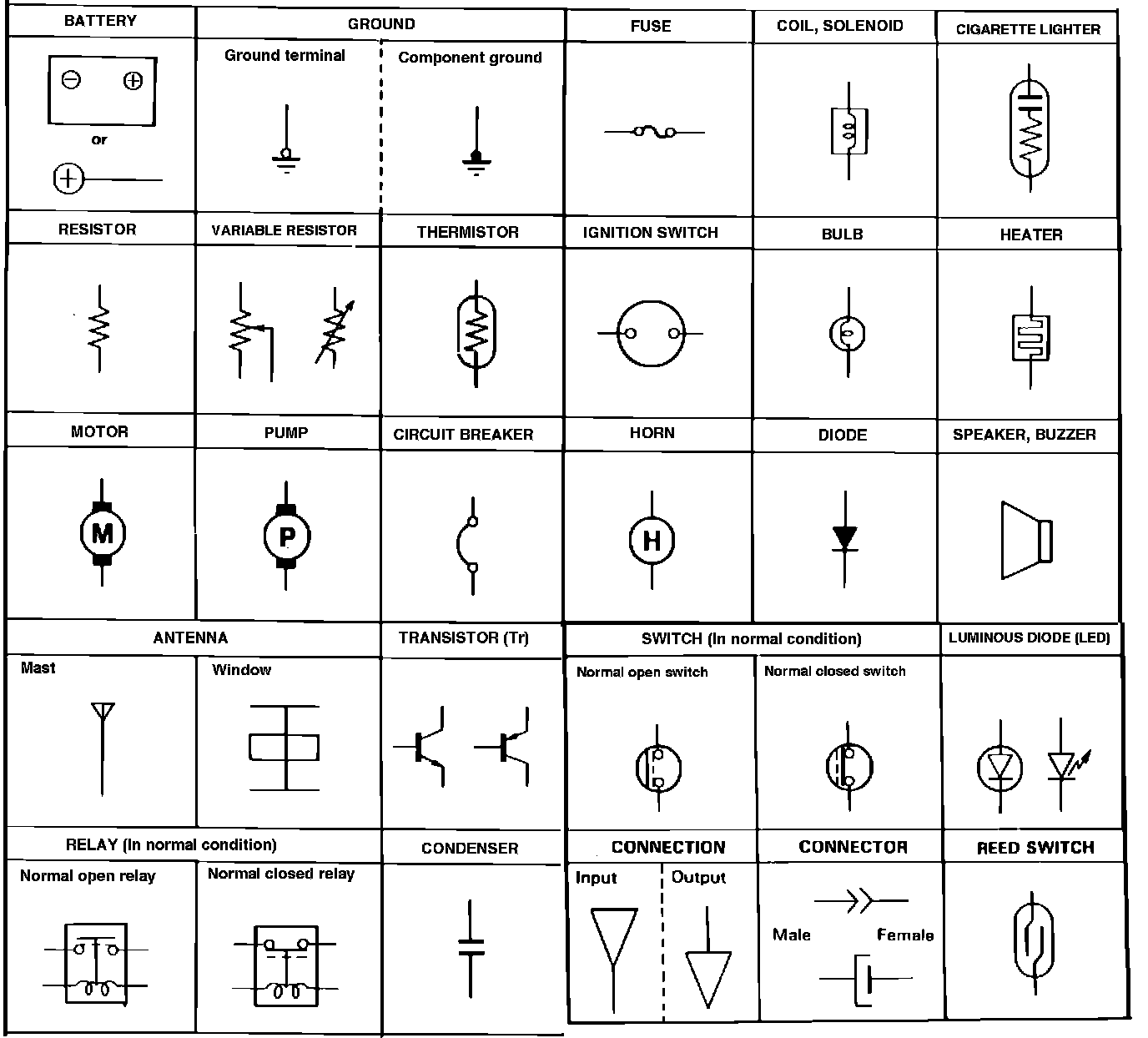

Symbol Identification:

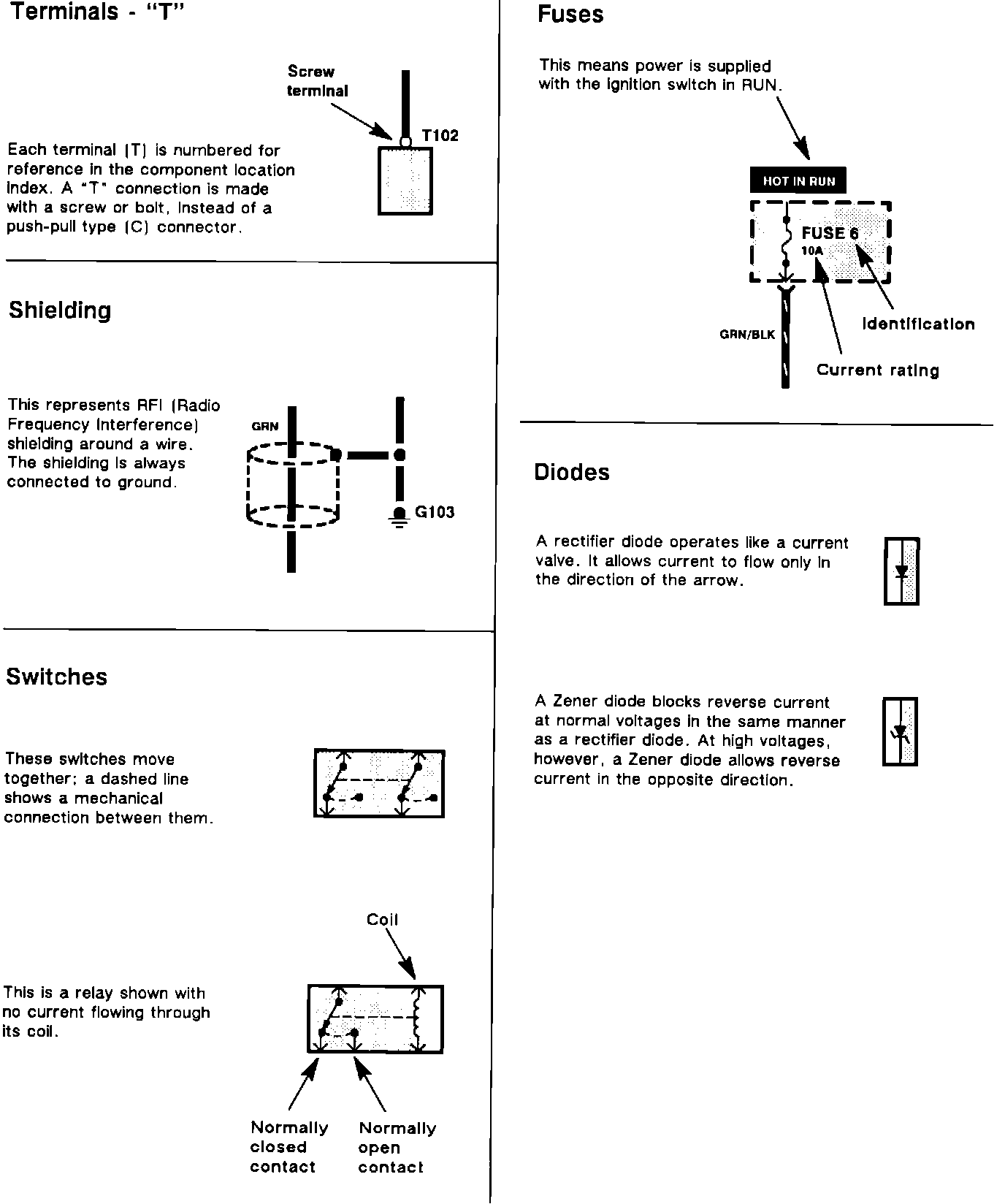

Key To Wiring Diagrams And Symbol Identification:

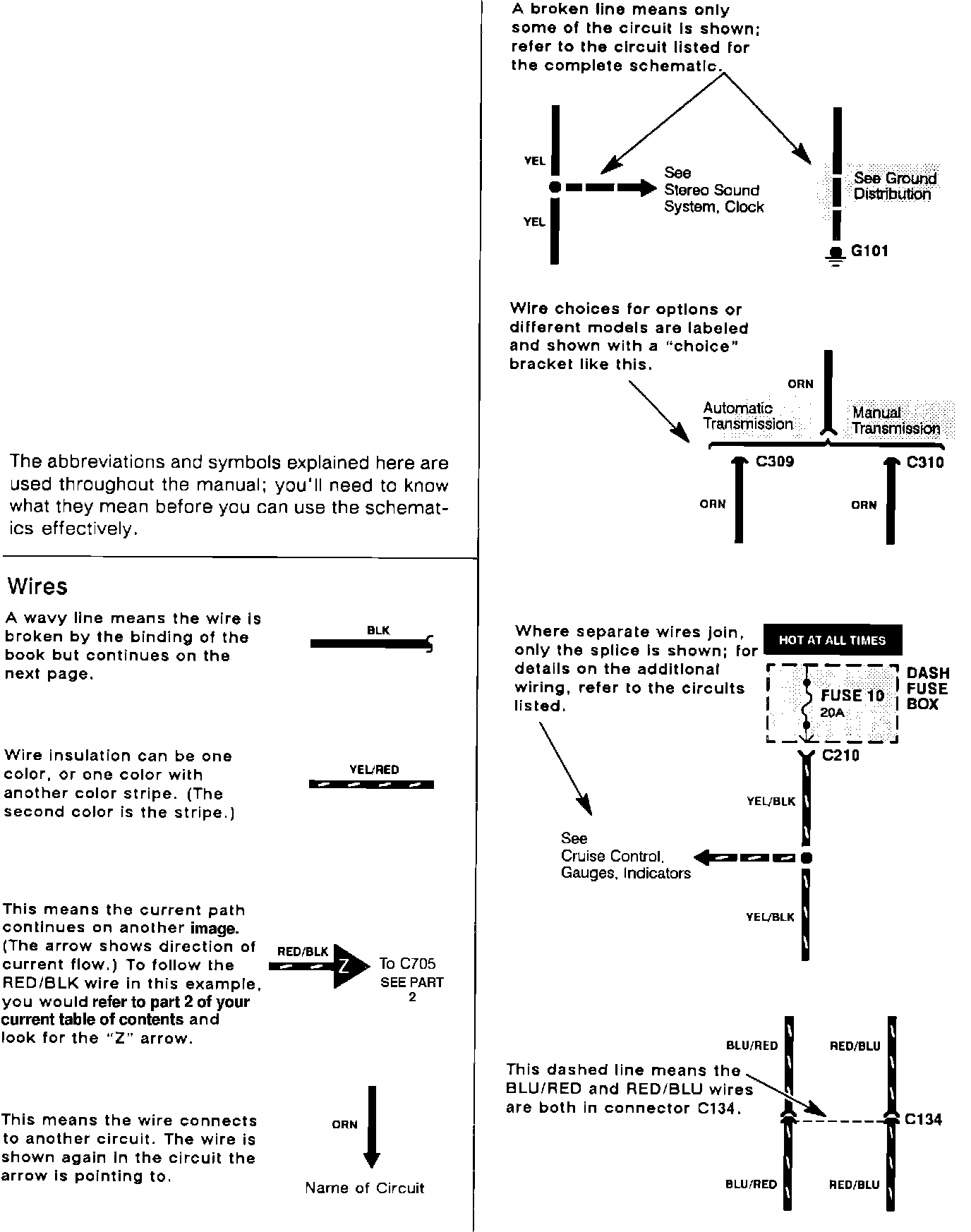

Key To Wiring Diagrams And Symbol Identification:

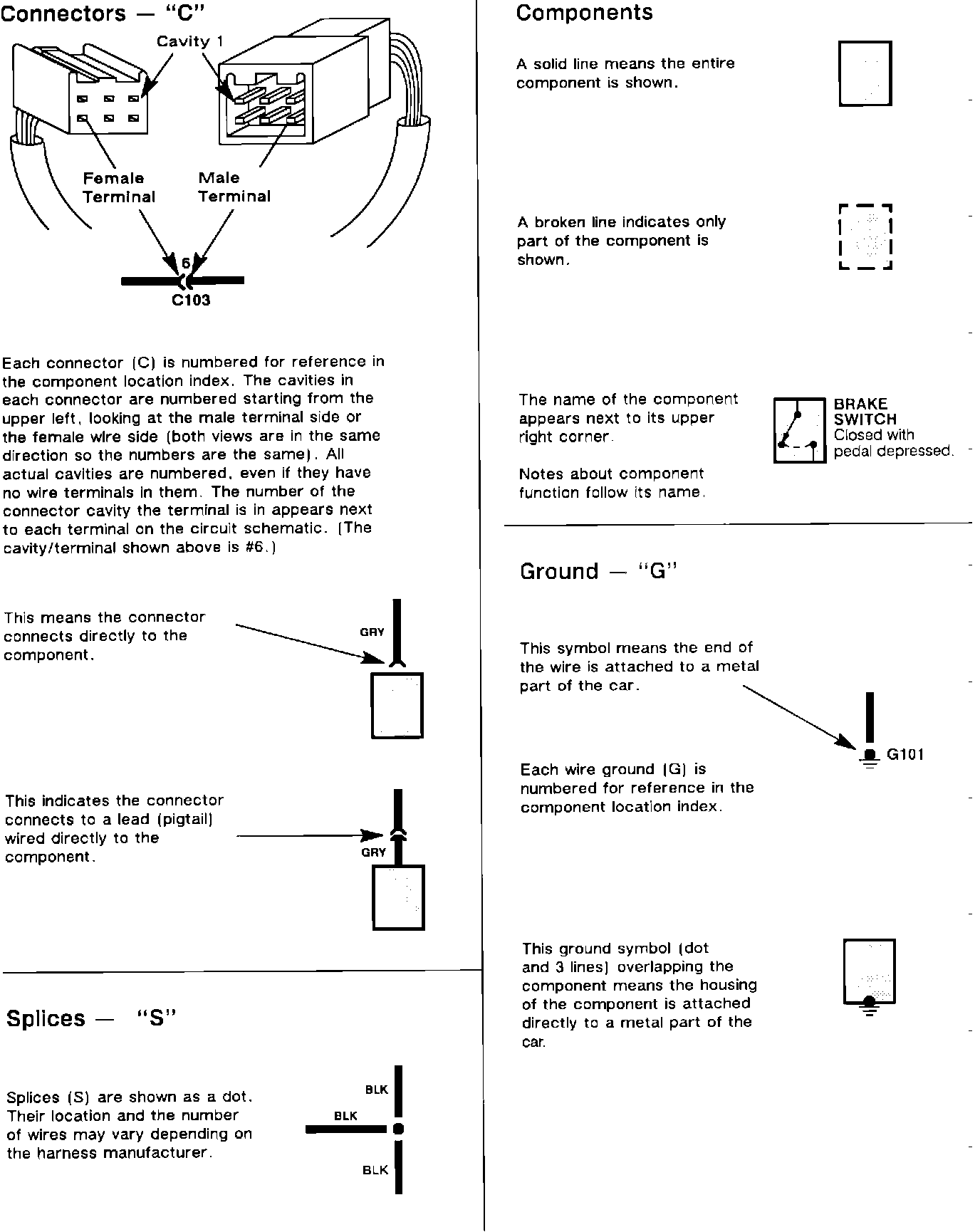

Key To Wiring Diagrams And Symbol Identification:
