Home >> Honda >> 1995 >> Odyssey L4-2.2L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> A/C Signal >> Testing and Inspection

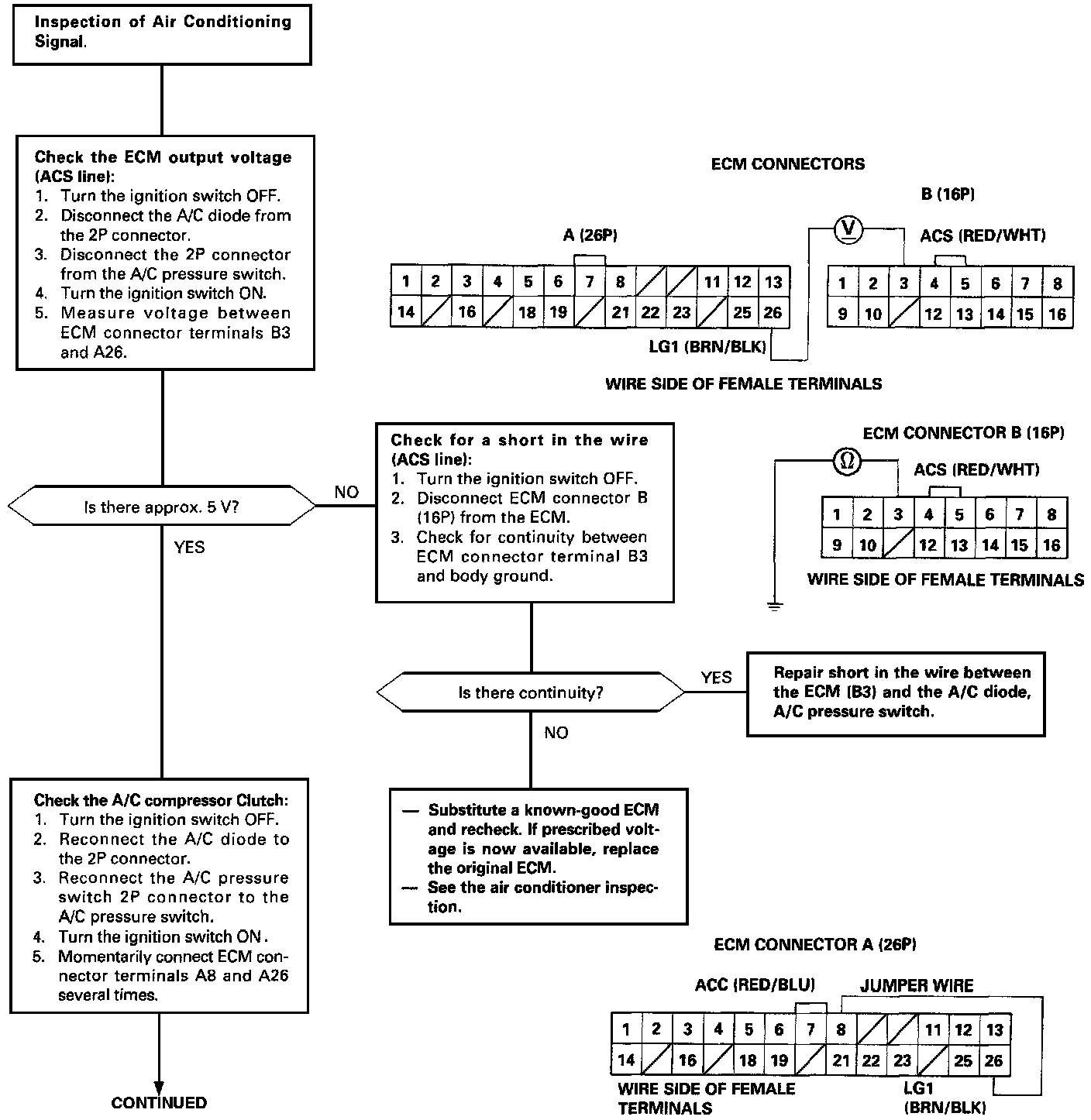

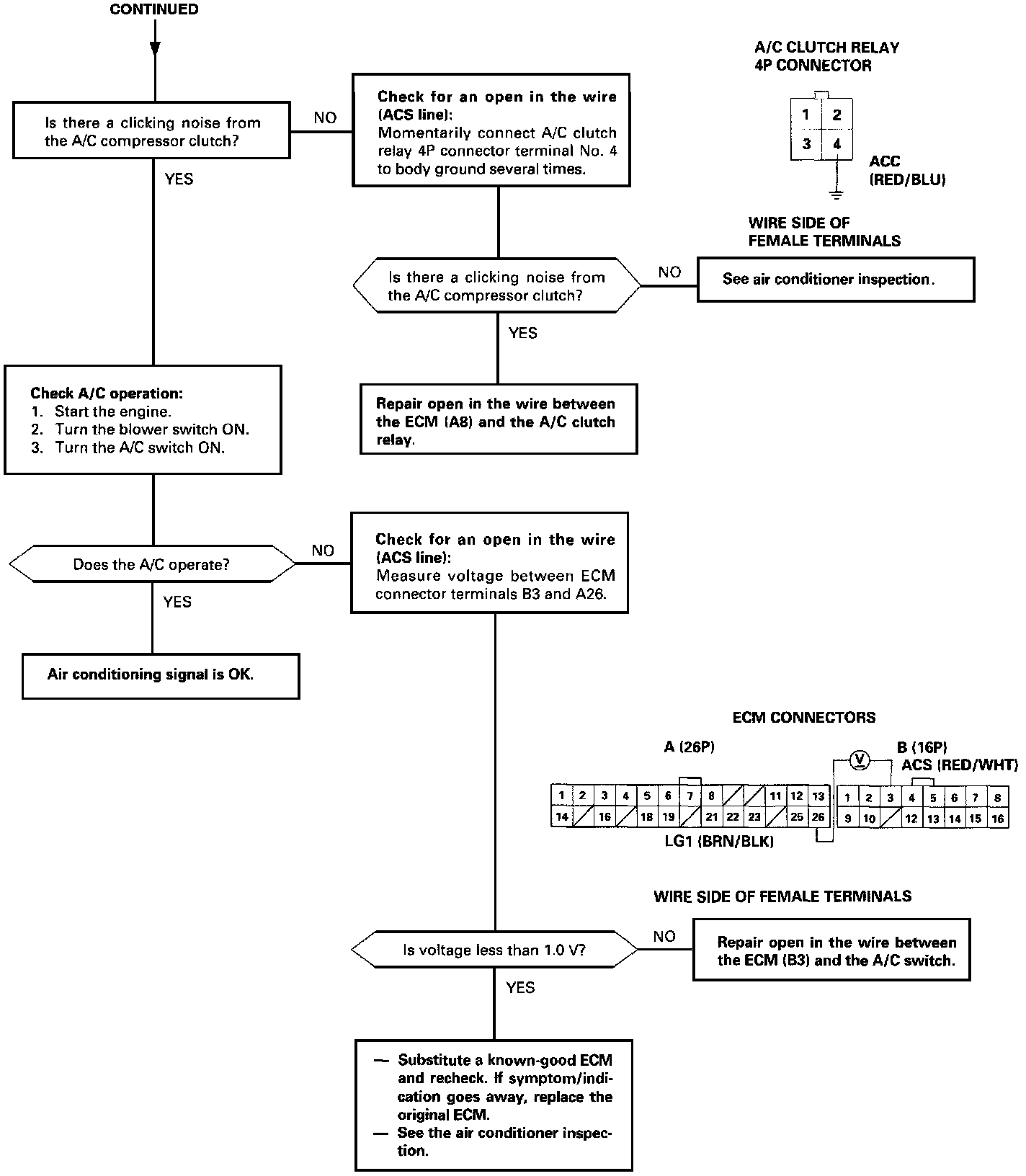

A/C Signal: Testing and Inspection








This signals the Engine Control Module (ECM) when there is a demand for cooling from the Air Conditioning System.
