Power and Ground Distribution
>>
Relay Box
>>
Locations
>>

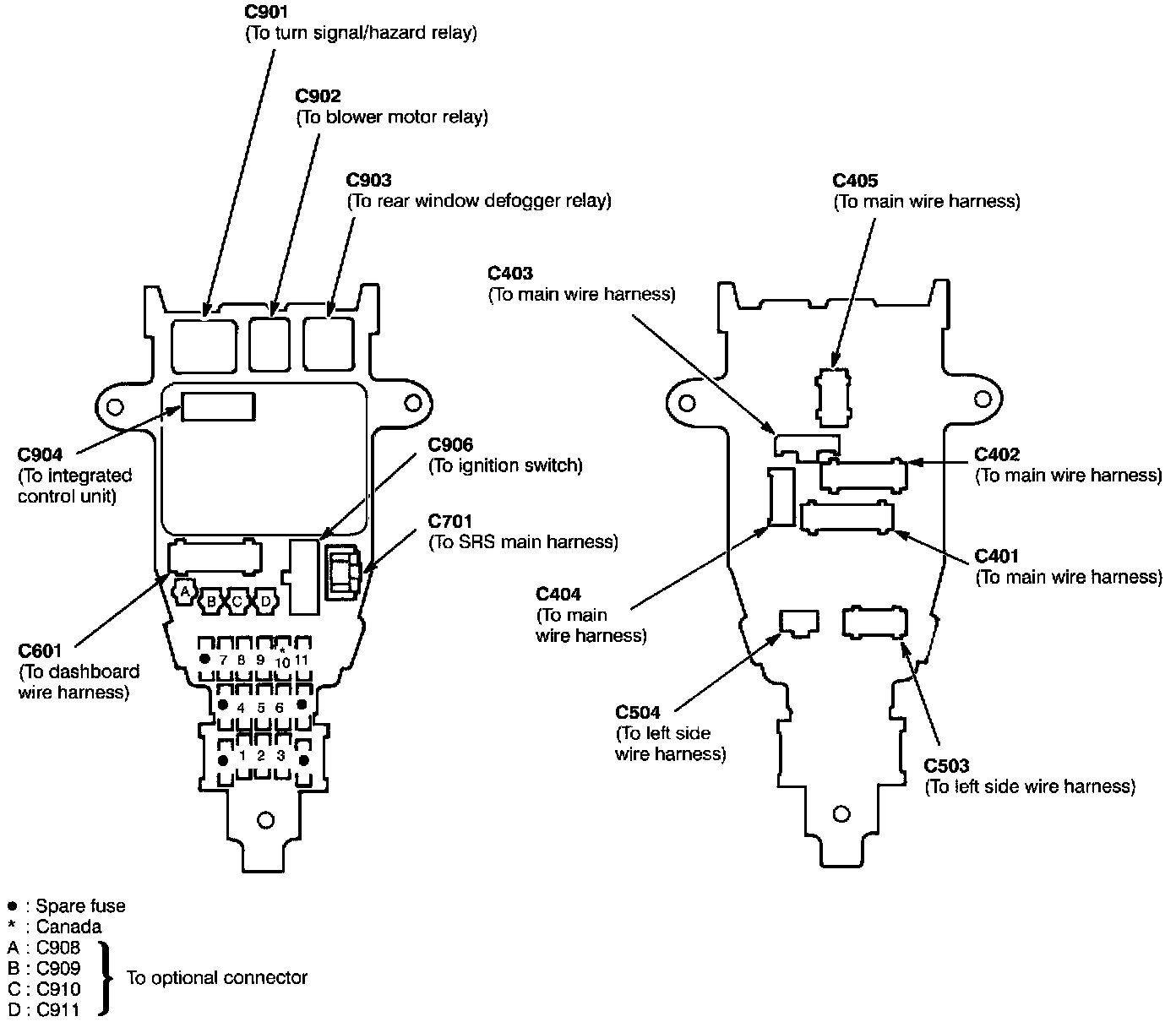

Under-Dash Fuse/Relay Box
>>
Under Dash Fuse/Relay Box
Under Dash Fuse/Relay Box

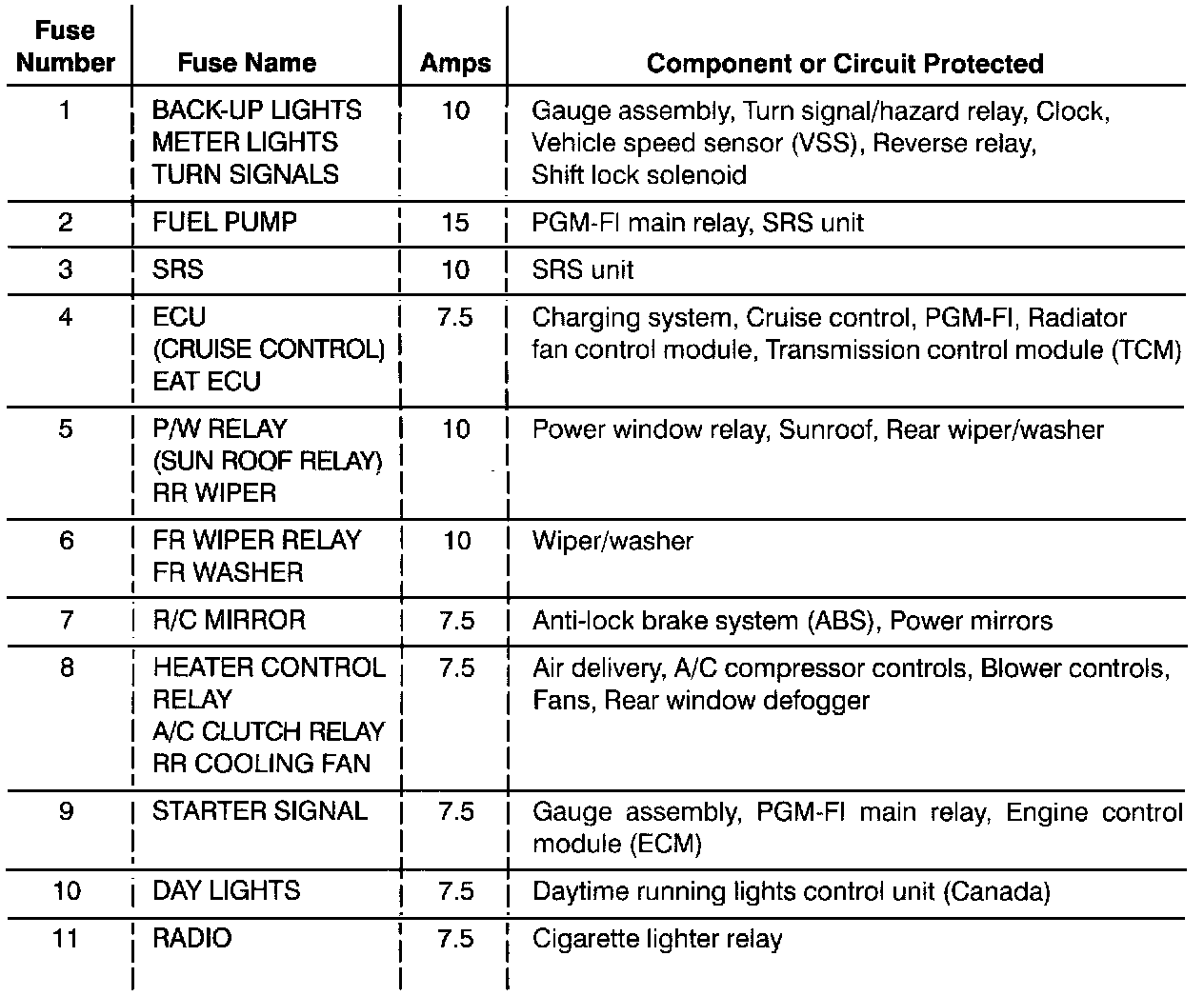

Fuse/Relay Information-Under-dash Fuse/Relay Box (Part 1 Of 2):
Fuse/Relay Information-Under-dash Fuse/Relay Box (Part 2 Of 2):
