Transmission Position Sensor/Switch: Testing and Inspection

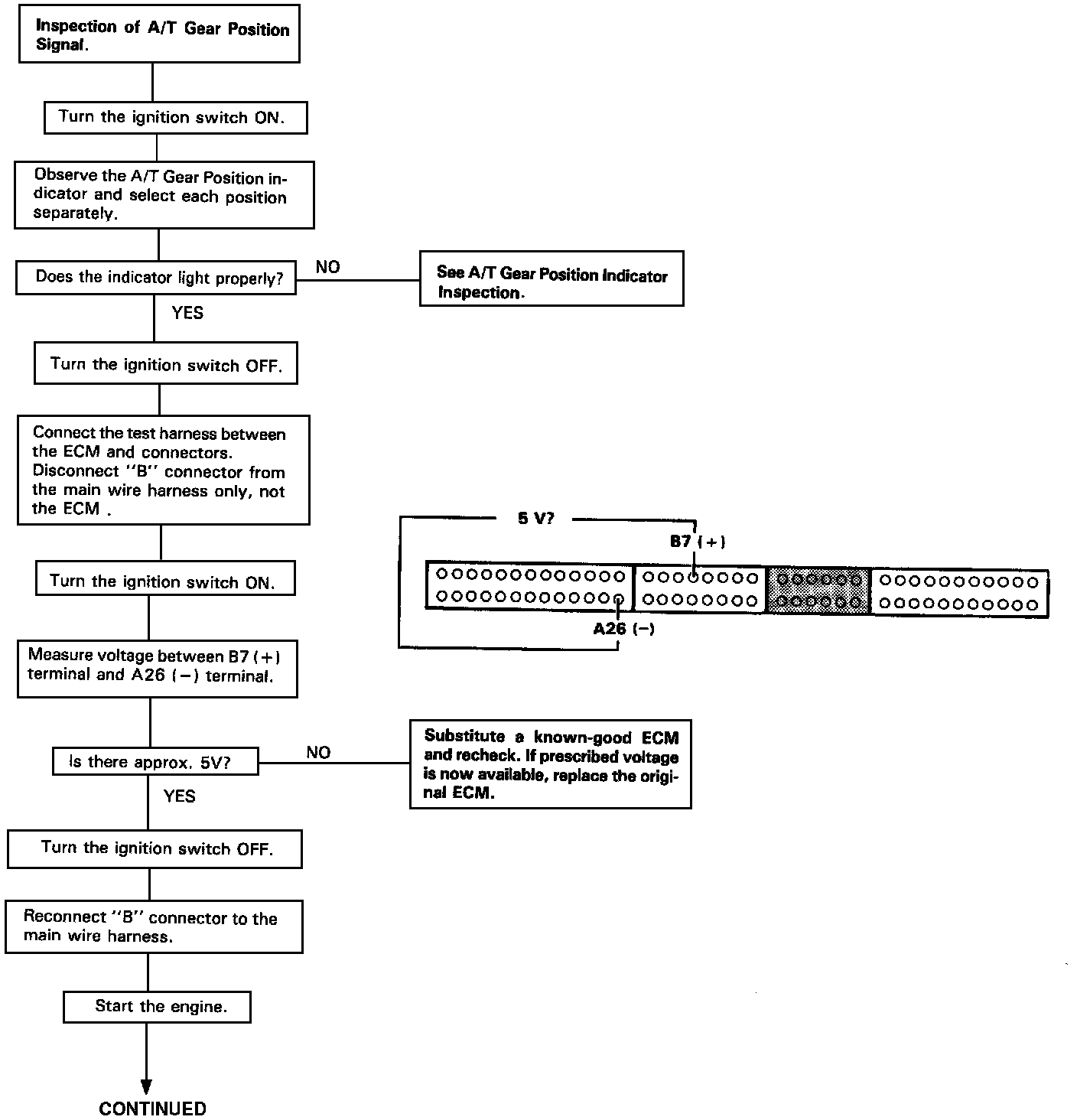

Automatic Transaxle Gear Position Signal (part 1 of 2):

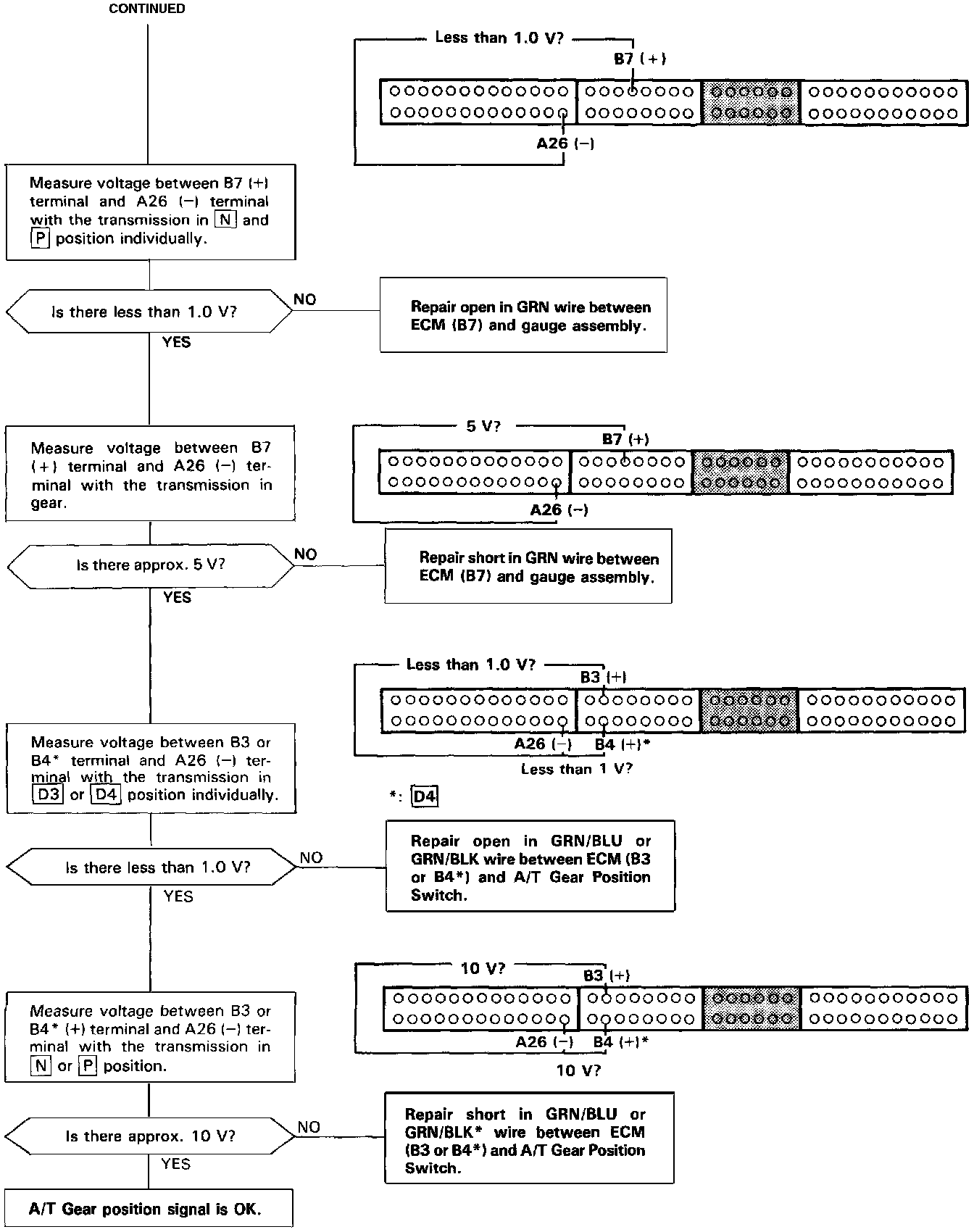

Automatic Transaxle Gear Position Signal (part 2 of 2):
