Home >> Honda >> 1995 >> Accord Sedan L4-2.2L SOHC VTEC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Testing and Inspection

Transmission Position Sensor/Switch: Testing and Inspection

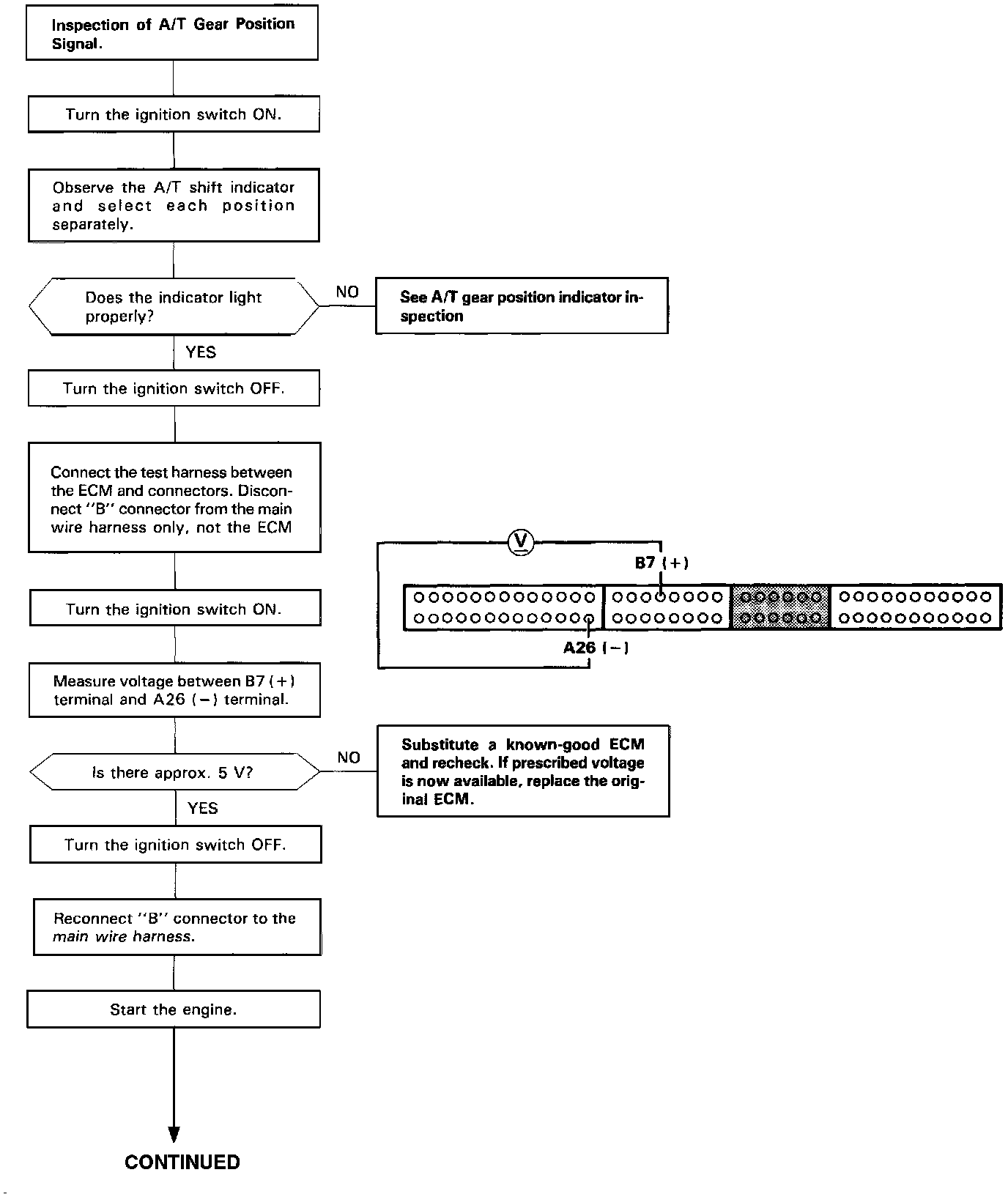

Automatic Transaxle (A/T) Gear position Signal (A/T only) / Flowchart / Part 1 Of 2:

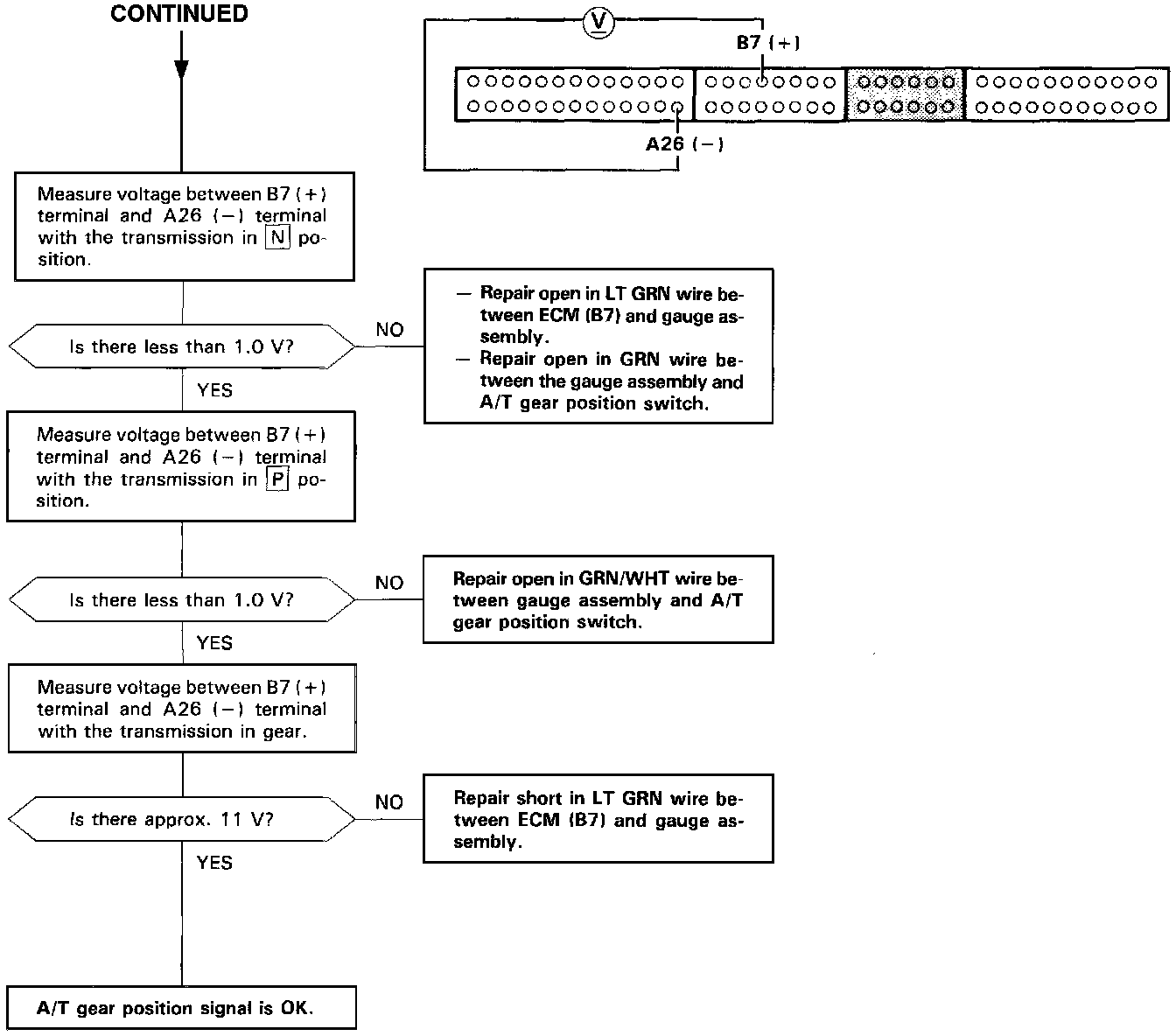

Automatic Transaxle (A/T) Gear position Signal (A/T only) / Flowchart / Part 2 Of 2:
