Home >> Honda >> 1994 >> Prelude L4-2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

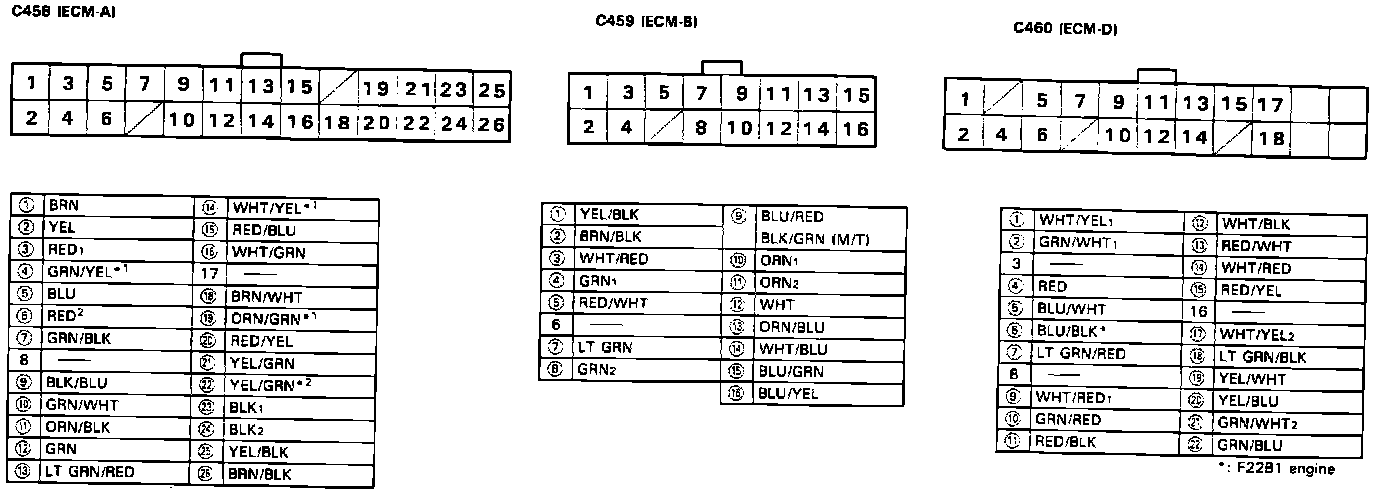

PGM-FI ECM Connector Description And Wire Location:
