Variable Induction System
Variable Induction System

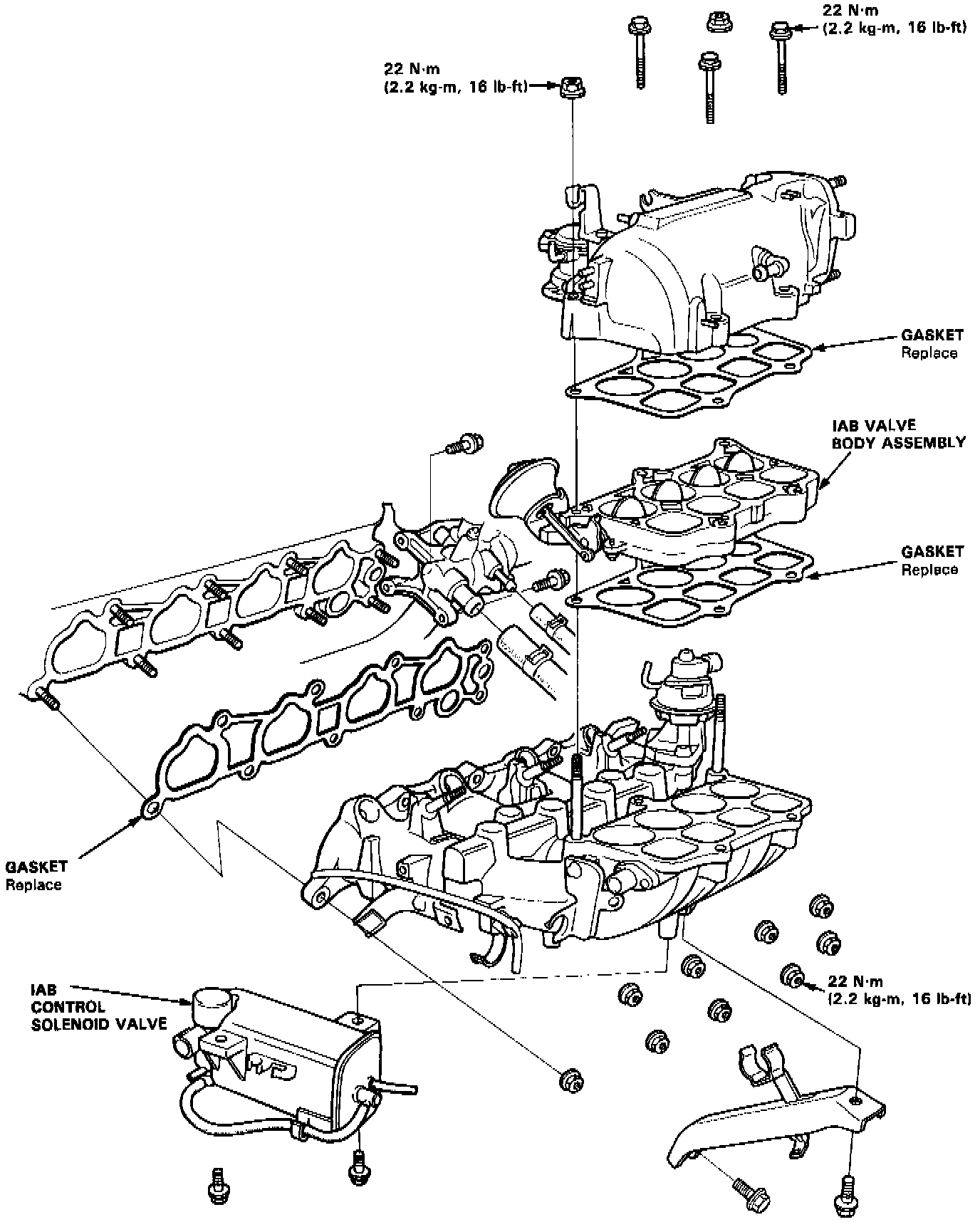

Exploded View Of Intake Air Bypass (IAB) Control System:
