Home >> Honda >> 1993 >> Prelude L4-2.2L SOHC >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Brake Caliper >> Front

Front

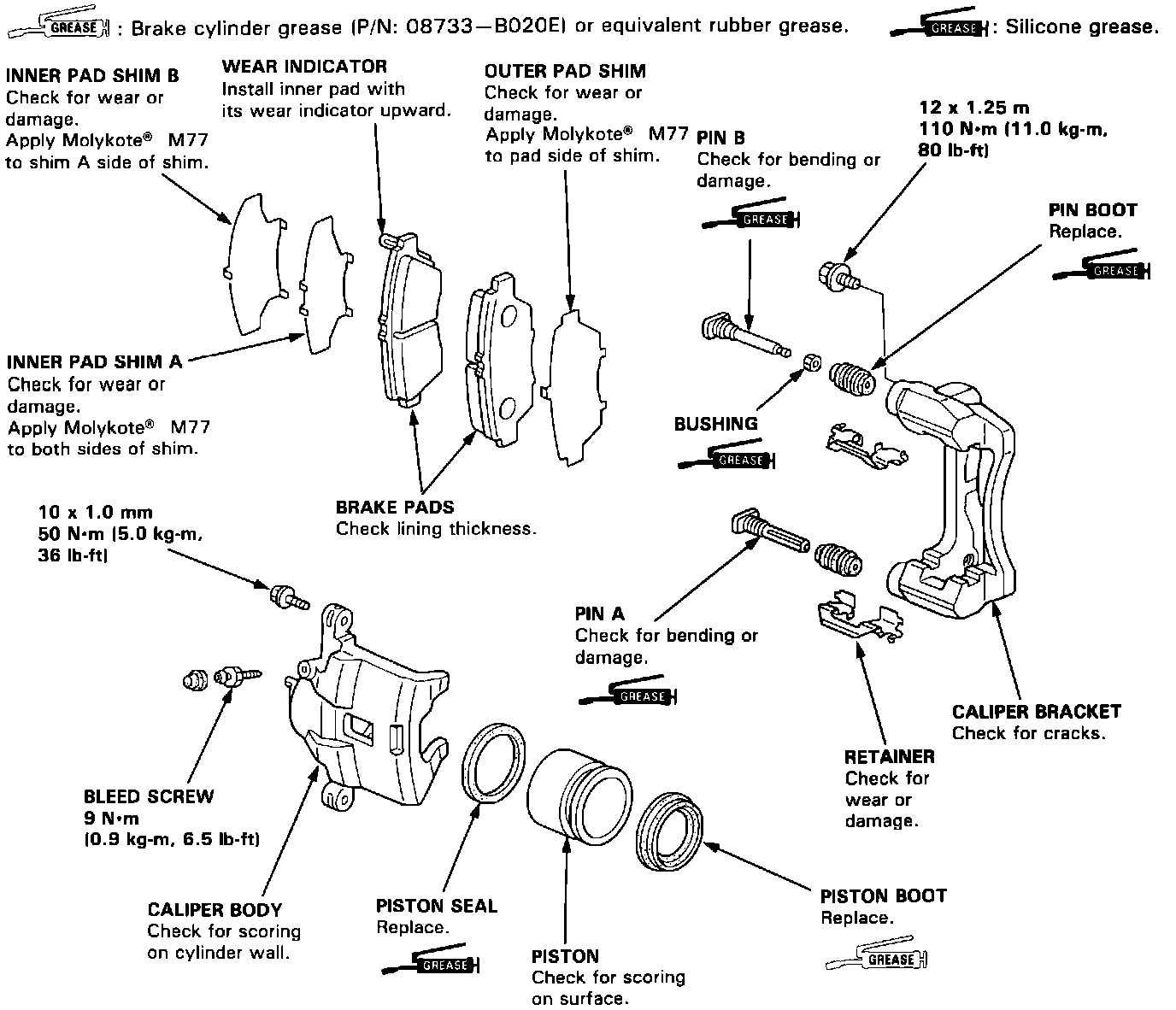

Front Brake Caliper And Pad Inspection:
