Engine
Engine

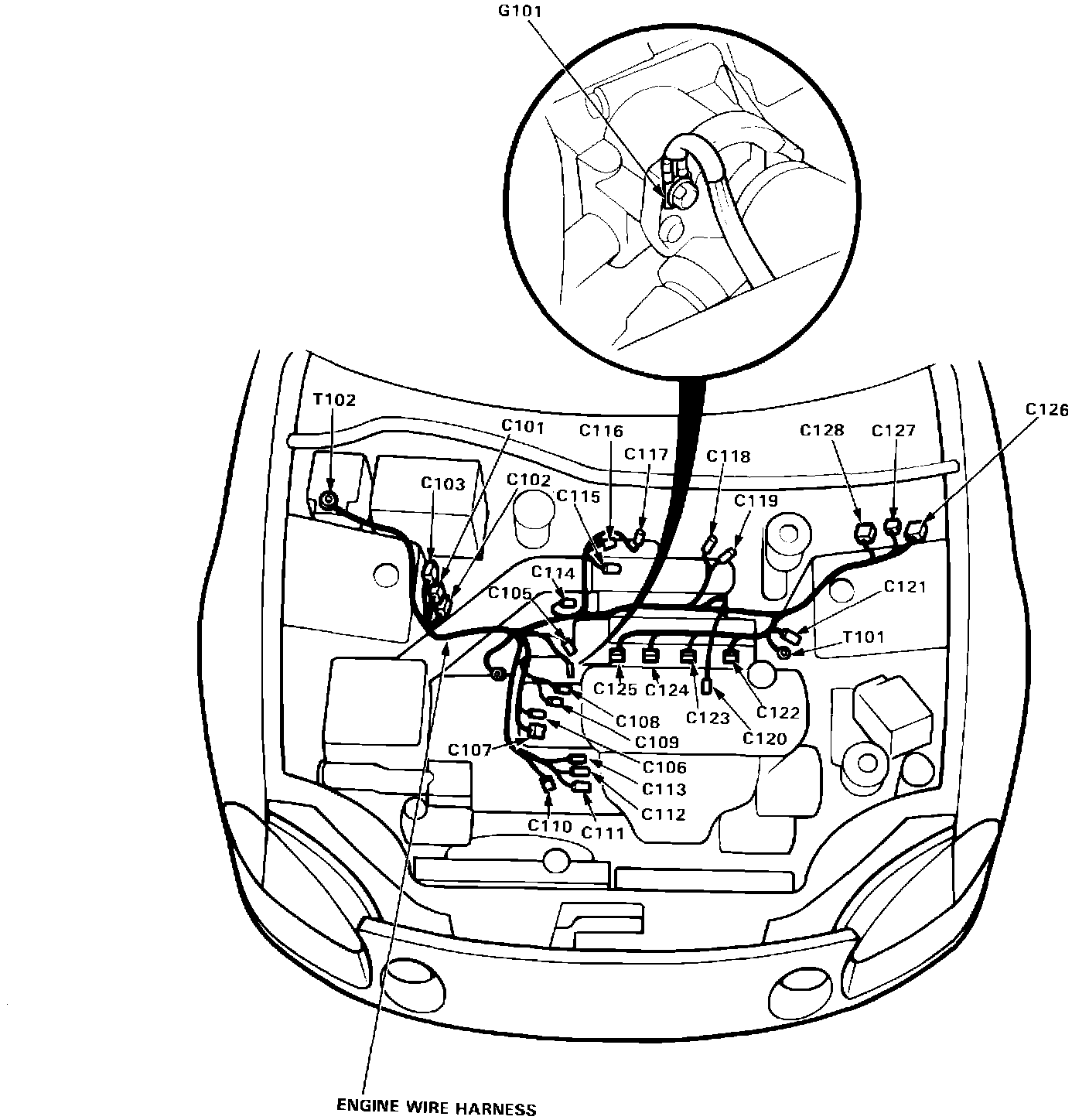

Connector Locations And Wire Harness Routing: Engine Wire Harness:

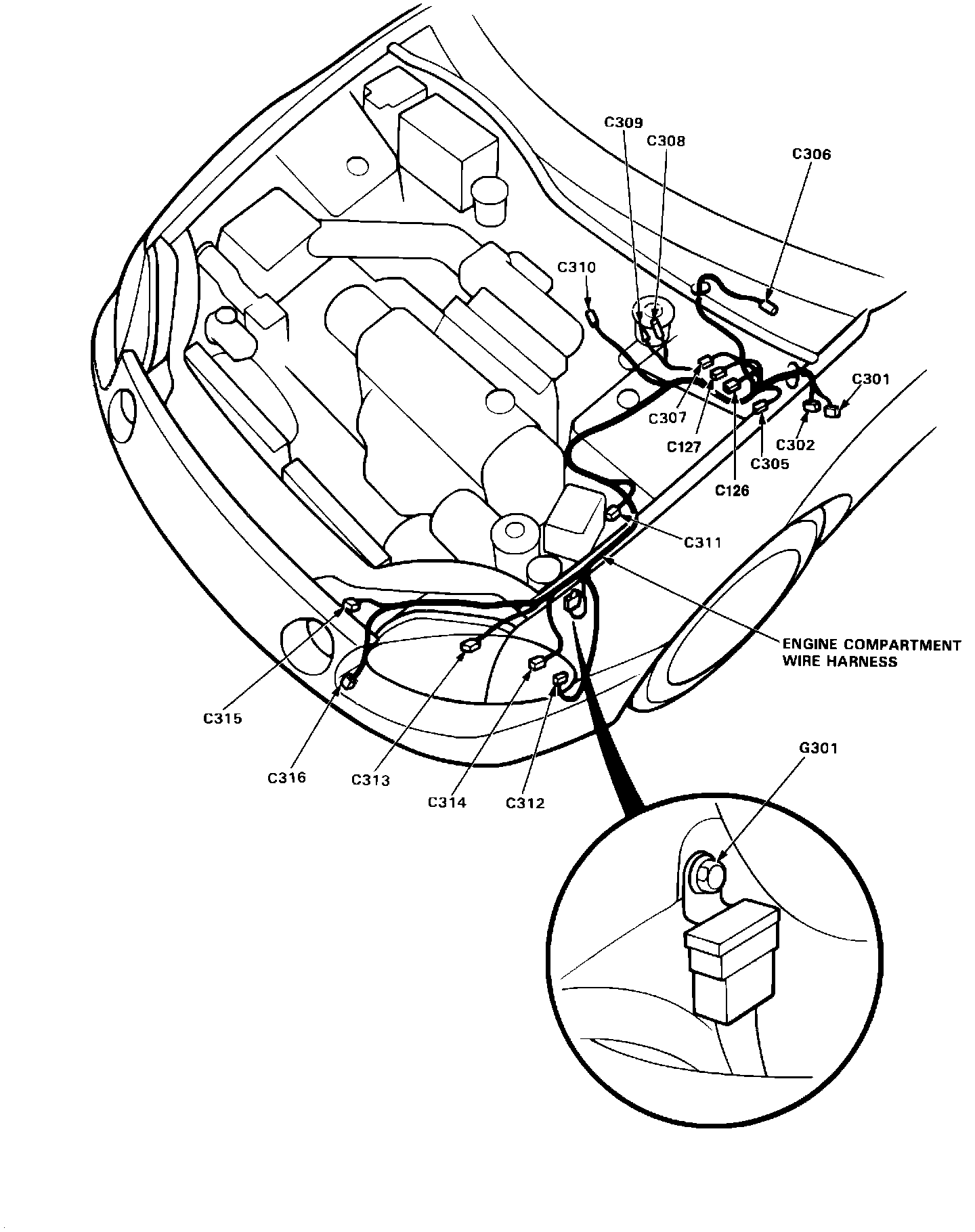

Connector Locations And Wire Harness Routing: Engine Compartment Wire Harness:
