Home >> Honda >> 1992 >> Prelude L4-2.3L DOHC >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Under-Dash Fuse/Relay Box >> Front View

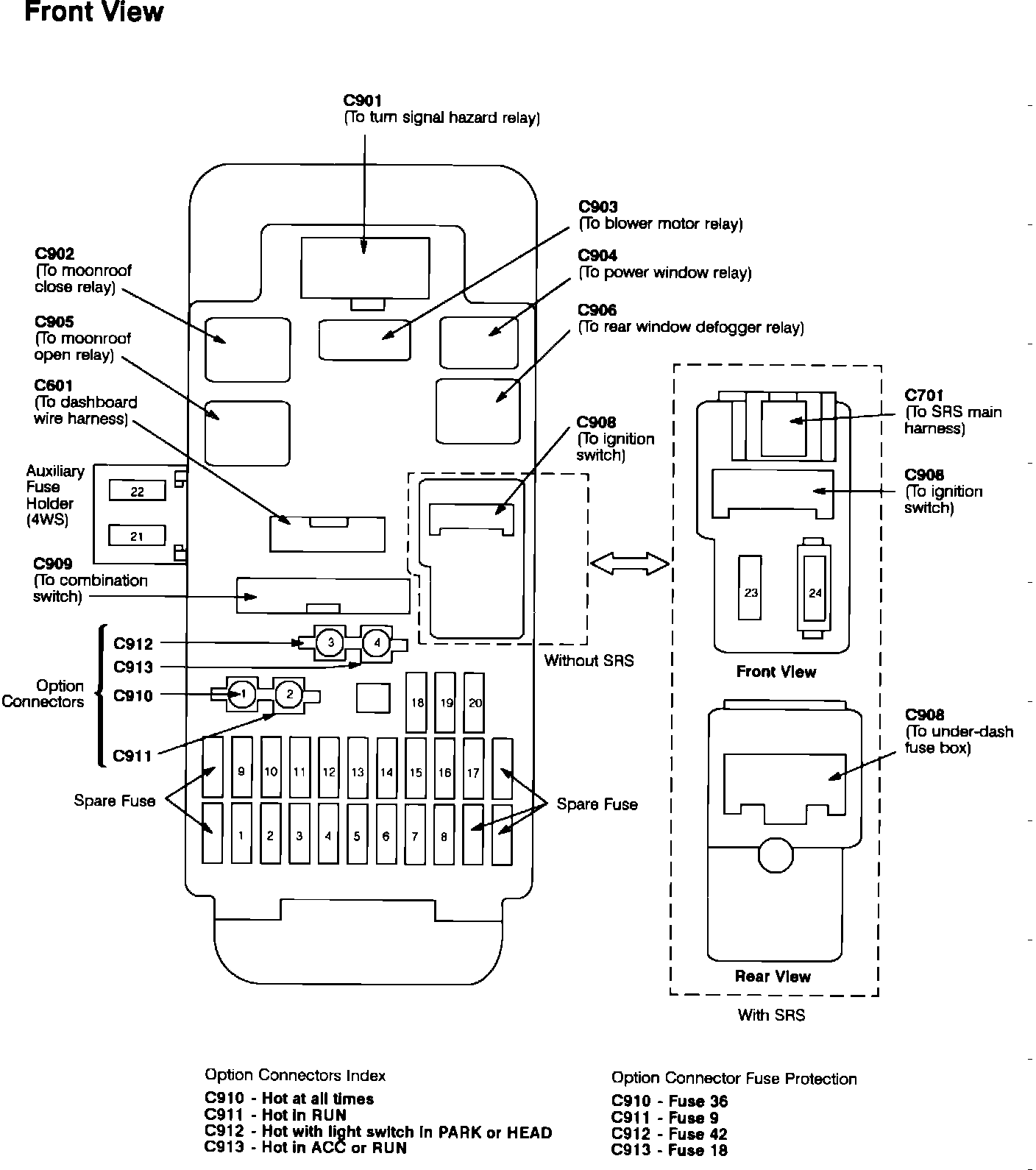

Front View

Under-dash Fuse/Relay Box:
