Honda
>>
1992
>>
Prelude L4-2.2L SOHC
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Testing and Inspection
>>

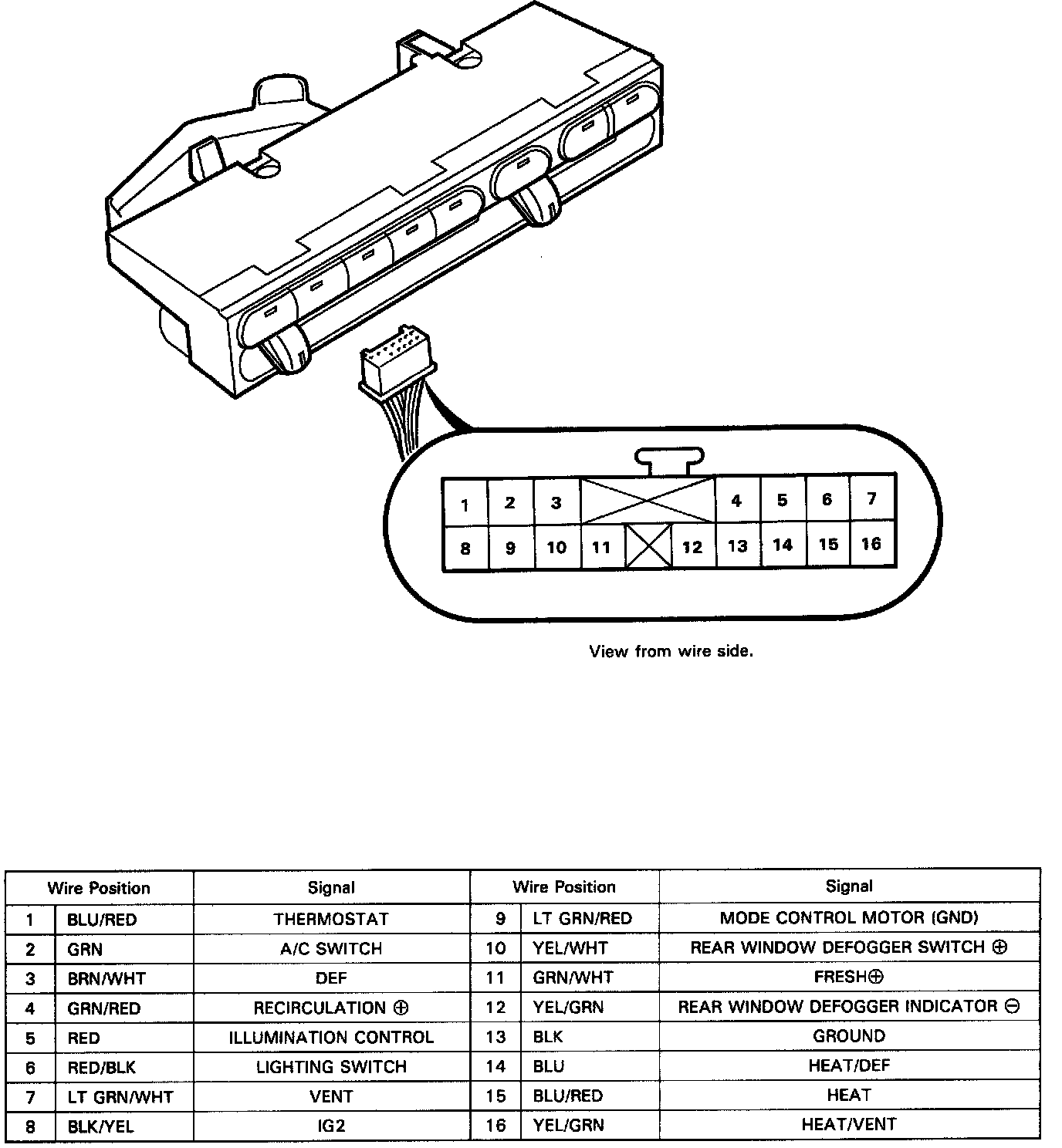

Heater Control Panel Input/Output Signals
Heater Control Panel Input/Output Signals
Heater Control Panel Input/Output Signals
